Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

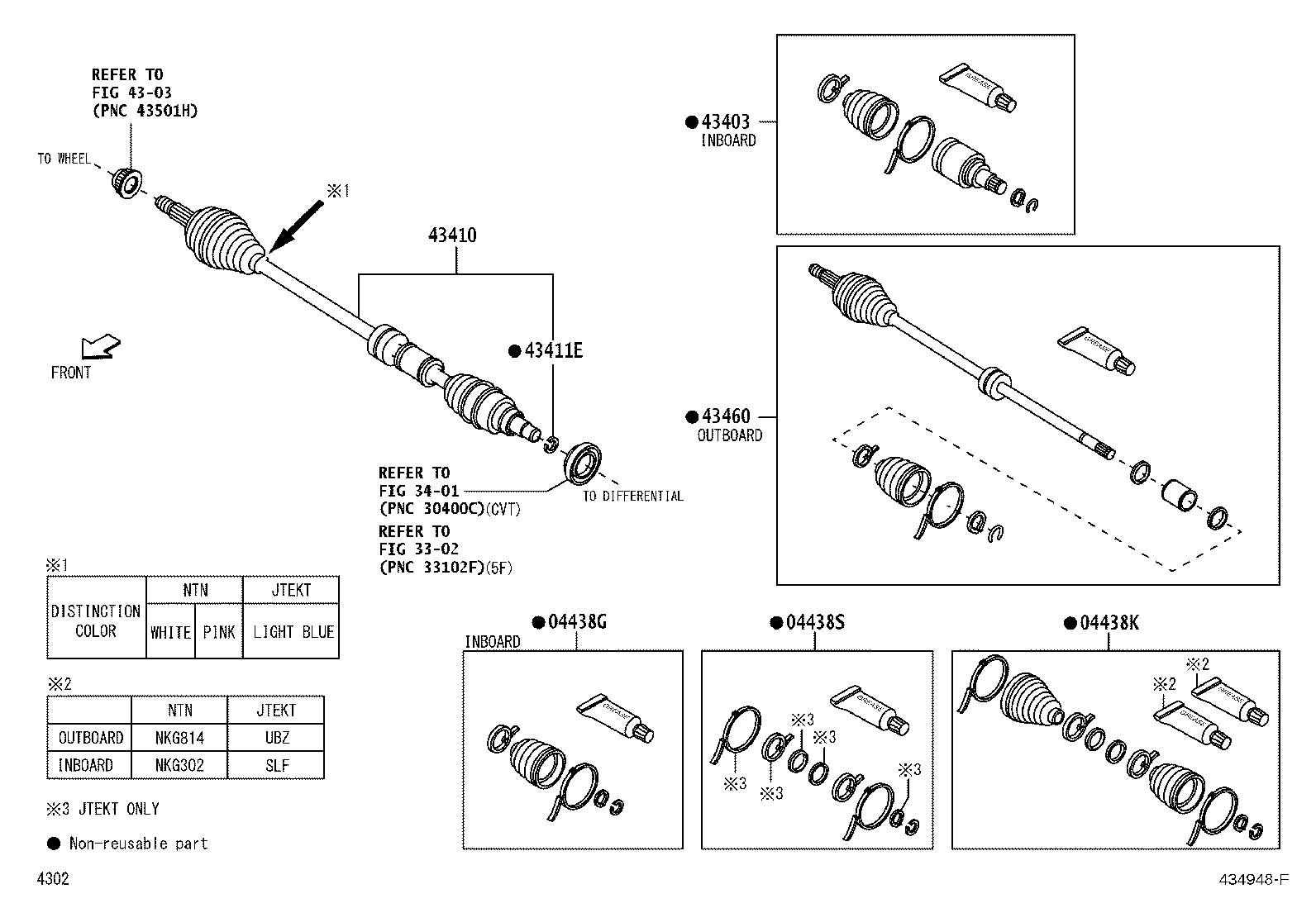

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH | ||||
| 04437-B2340 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2022-08 → —
|
NGC100 | — | |
| 04437-BZ060 note |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 04437-BZ070 note |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-09 → —
|
NGC101,102 THP | — | |
| 04437-BZ080 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-03 → 2024-12
ended
|
NGC102 MA | — | |
| 04438-BZ070 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-12 → —
|
NGC102 MA | — | |
| 04438K — Boot Kit, Front Drive Shaft Outboard Joint, RH | ||||
| 04425-B2270 note |
Boot Kit, Front Drive Shaft Outboard Joint, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 04425-B2290 |
Boot Kit, Front Drive Shaft Outboard Joint, RH
2022-08 → —
|
NGC100 | — | |
| 04425-BZ080 |
Boot Kit, Front Drive Shaft Outboard Joint, RH
2023-03 → 2024-11
ended
|
NGC102 MA | — | |
| 04425-BZ180 note |
Boot Kit, Front Drive Shaft Outboard Joint, RH
2024-09 → —
|
NGC101,102 THP | — | |
| 04425-BZ210 |
Boot Kit, Front Drive Shaft Outboard Joint, RH
2024-12 → —
|
NGC102 MA | — | |
| 04438S — Clamp Kit, Front Drive Shaft, RH | ||||
| 04435-B2350 |
Clamp Kit, Front Drive Shaft, RH
2022-08 → —
|
NGC100 | — | |
| 04435-B2360 note |
Clamp Kit, Front Drive Shaft, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 04435-BZ090 |
Clamp Kit, Front Drive Shaft, RH
2023-03 → 2024-11
ended
|
NGC102 MA | — | |
| 04435-BZ180 note |
Clamp Kit, Front Drive Shaft, RH
2024-09 → —
|
NGC101,102 THP | — | |
| 04435-BZ210 |
Clamp Kit, Front Drive Shaft, RH
2024-12 → —
|
NGC102 MA | — | |
| 43403 — Joint Set, Front Axle Inboard, RH | ||||
| 43408-B9590 note |
Joint Set, Front Axle Inboard, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 43408-B9620 |
Joint Set, Front Axle Inboard, RH
2023-03 → 2024-11
ended
|
NGC102 MA | — | |
| 43408-B9630 |
Joint Set, Front Axle Inboard, RH
2024-12 → —
|
NGC102 MA | — | |
| 43408-B9660 note |
Joint Set, Front Axle Inboard, RH
2024-09 → —
|
NGC101,102 THP | — | |
| 43408-B9780 |
Joint Set, Front Axle Inboard, RH
2022-08 → —
|
NGC100 | — | |
| 43410 — Shaft Assy, Front Drive, RH | ||||
| 43410-BZ240 note |
Shaft Assy, Front Drive, RH
2022-08 → —
|
NGC100 | — | |
| 43410-BZ250 note |
Shaft Assy, Front Drive, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 43410-BZ260 note |
Shaft Assy, Front Drive, RH
2024-12 → —
|
NGC102 MA | — | |
| 43410-BZ320 note |
Shaft Assy, Front Drive, RH
2023-03 → 2024-11
ended
|
NGC102 MA | — | |
| 43410-BZ380 note |
Shaft Assy, Front Drive, RH
2024-09 → —
|
NGC101,102 THP | — | |
| 43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-BZ080 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-03 → —
|
NGC102 MA | — | |
| 43425-BZ120 note |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 90045-20298 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-08 → —
|
NGC100 | — | |
| 90045-20298 note |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-09 → —
|
NGC101,102 THP | — | |
| 43460 — Shaft Assy, Front Drive Outboard Joint, RH | ||||
| 43411-B9750 |
Shaft Assy, Front Drive Outboard Joint, RH
2022-08 → —
|
NGC100 | — | |
| 43411-B9760 note |
Shaft Assy, Front Drive Outboard Joint, RH
2022-08 → 2024-09
ended
|
NGC101,102 THP | — | |
| 43411-B9770 |
Shaft Assy, Front Drive Outboard Joint, RH
2023-03 → 2024-11
ended
|
NGC102 MA | — | |
| 43411-B9775 |
Shaft Assy, Front Drive Outboard Joint, RH
2024-12 → —
|
NGC102 MA | — | |
| 43411-B9855 note |
Shaft Assy, Front Drive Outboard Joint, RH
2024-09 → —
|
NGC101,102 THP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
