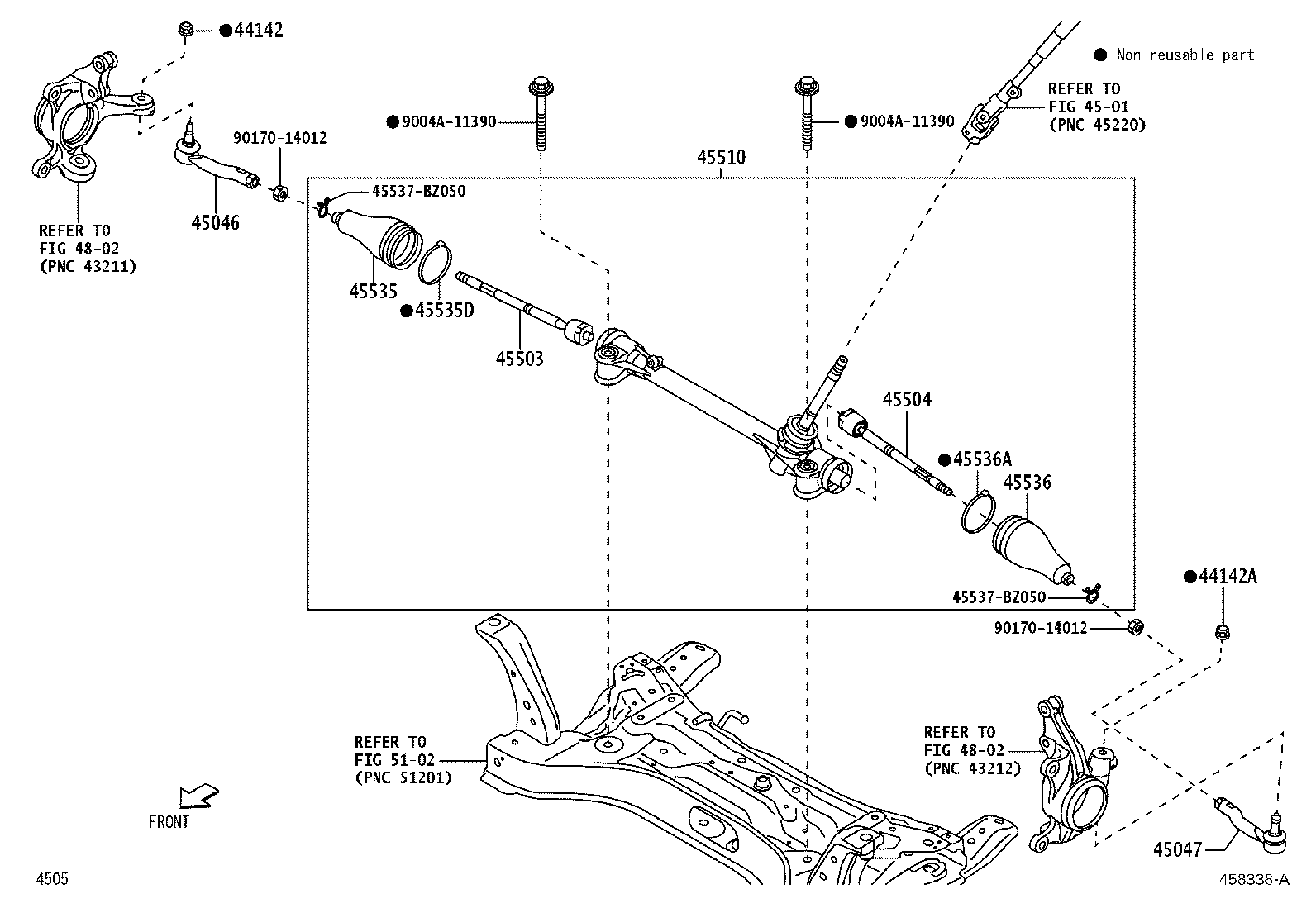

Exploded illustration 458338A 5102 — not listed in this catalogue 45510 — GEAR ASSY, STEERING (6 parts) 4501 — not listed in this catalogue 45537BZ050 — not listed in this catalogue 9017014012 — not listed in this catalogue 44142 — NUT, LOCK (1 parts) 45503 — END SUB-ASSY, STEERING RACK (1 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (1 parts) 4802 — not listed in this catalogue 45535 — BOOT, STEERING RACK, NO.1 (1 parts) 45046 — END SUB-ASSY, TIE ROD, RH (2 parts) 9004A11390 — not listed in this catalogue 9004A11390 — not listed in this catalogue 45537BZ050 — not listed in this catalogue 9017014012 — not listed in this catalogue 4802 — not listed in this catalogue 45504 — END SUB-ASSY, STEERING RACK, NO.2 (1 parts) 45536A — CLAMP(FOR STEERING RACK BOOT NO.2) (1 parts) 44142A — NUT, LOCK, NO.1 (1 parts) 45536 — BOOT, STEERING RACK, NO.2 (1 parts) 45047 — END SUB-ASSY, TIE ROD, LH (2 parts)
458338A · 11 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
44142 — Nut, Lock
90041-77011 Nut, Lock
2022-08 → —
NGC10# —
44142A — Nut, Lock, NO.1
90041-77011 Nut, Lock, NO.1
2022-08 → —
NGC10# —
45046 — End Sub-assy, Tie Rod, RH
45046-BZ260 End Sub-assy, Tie Rod, RH
2022-08 → —
NGC10#,NYC100 THP —
45046-BZ270 End Sub-assy, Tie Rod, RH
2023-03 → —
NGC102 MA —
45047 — End Sub-assy, Tie Rod, LH
45047-BZ150 End Sub-assy, Tie Rod, LH
2022-08 → —
NGC10#,NYC100 THP —
45047-BZ160 End Sub-assy, Tie Rod, LH
2023-03 → —
NGC102 MA —
45503 — End Sub-assy, Steering Rack
45503-BZ260 End Sub-assy, Steering Rack
2022-08 → —
NGC10# —
45504 — End Sub-assy, Steering Rack, NO.2
45503-BZ260 End Sub-assy, Steering Rack, NO.2
2022-08 → —
NGC10# —
45510 — Gear Assy, Steering
45510-BZ020 Gear Assy, Steering
2022-08 → —
NGC102 RHD CVT H —
45510-BZ580 Gear Assy, Steering
2022-08 → —
NGC102 5F H;NGC102 RHD +2 —
45510-BZ580 note Gear Assy, Steering
2022-08 → —
NGC102 RHD CVT H +1 —
45510-BZ590 Gear Assy, Steering
2022-08 → —
NGC102 H GCC;NGC102 LHD +2 —
45510-BZ590 note Gear Assy, Steering
2022-08 → —
NGC102 LHD H GEN —
45510-BZ600 Gear Assy, Steering
2022-08 → —
NGC102 LHD H (GEN,PHL) —
45535 — Boot, Steering Rack, NO.1
45535-BZ200 Boot, Steering Rack, NO.1
2022-08 → —
NGC10# —
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
45538-BZ080 Clamp(FOR STEERING RACK BOOT NO.1)
2022-08 → —
NGC10# —
45536 — Boot, Steering Rack, NO.2
45535-BZ200 Boot, Steering Rack, NO.2
2022-08 → —
NGC10# —
45536A — Clamp(FOR STEERING RACK BOOT NO.2)
45538-BZ080 Clamp(FOR STEERING RACK BOOT NO.2)
2022-08 → —
NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
