Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

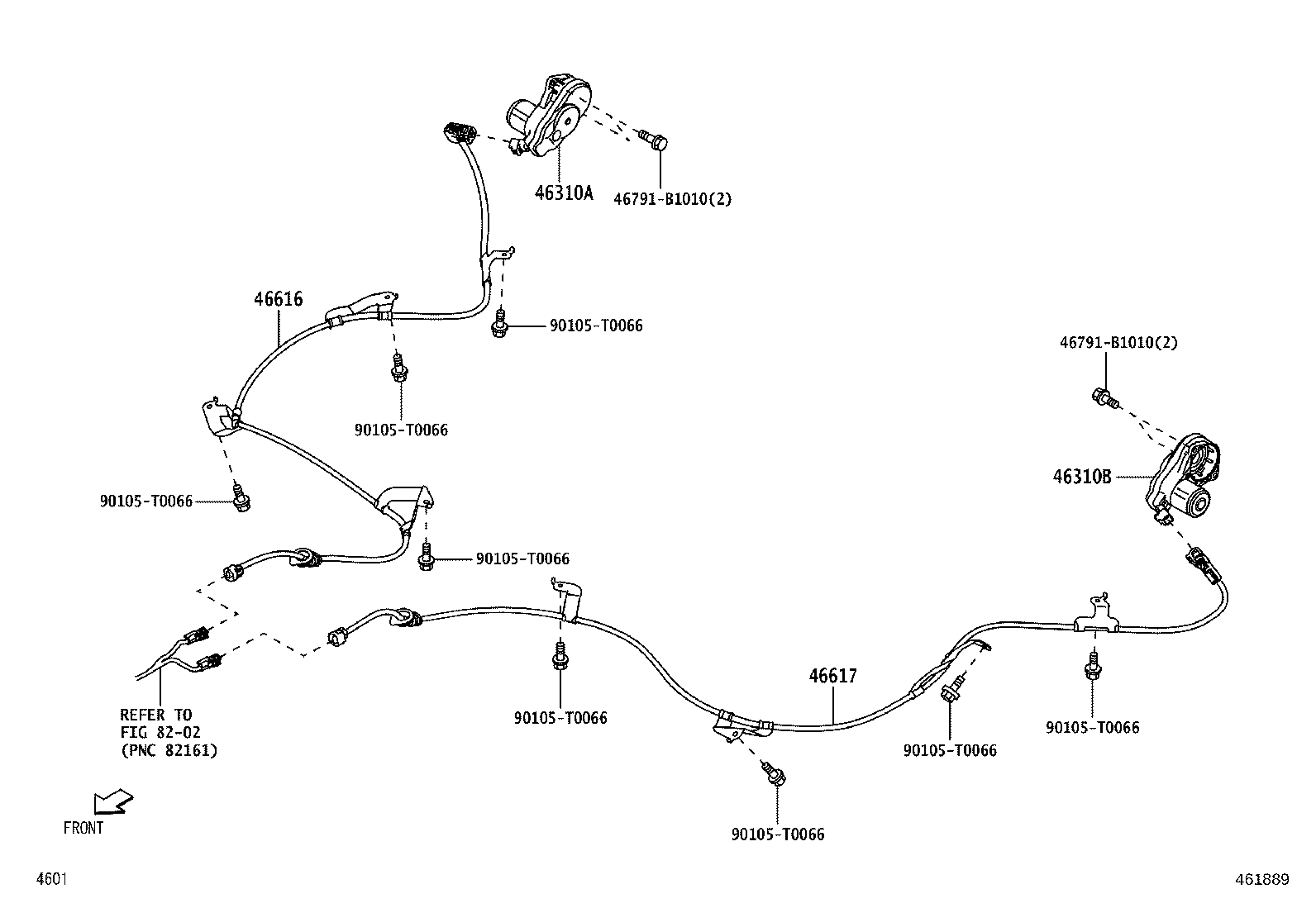

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46310A — Actuator Assy, Parking Brake, RH | ||||
| 46310-B1030 |
Actuator Assy, Parking Brake, RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, RH
2022-08 → —
|
NGC100 | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, RH
2022-08 → —
|
NGC101 M GCC | — | |
| 46310B — Actuator Assy, Parking Brake, LH | ||||
| 46310-B1030 |
Actuator Assy, Parking Brake, LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, LH
2022-08 → —
|
NGC100 | — | |
| 46310-B1030 note |
Actuator Assy, Parking Brake, LH
2022-08 → —
|
NGC101 M GCC | — | |
| 46616 — Wire, Parking Brake, RH | ||||
| 890C0-BZ050 |
Wire, Parking Brake, RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 890C0-BZ050 note |
Wire, Parking Brake, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 890C0-BZ050 note |
Wire, Parking Brake, RH
2022-08 → —
|
NGC100 | — | |
| 890C0-BZ050 note |
Wire, Parking Brake, RH
2022-08 → —
|
NGC101 M GCC | — | |
| 46617 — Wire, Parking Brake, LH | ||||
| 890C0-BZ060 |
Wire, Parking Brake, LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 890C0-BZ060 note |
Wire, Parking Brake, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 890C0-BZ060 note |
Wire, Parking Brake, LH
2022-08 → —
|
NGC100 | — | |
| 890C0-BZ060 note |
Wire, Parking Brake, LH
2022-08 → —
|
NGC101 M GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
