Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

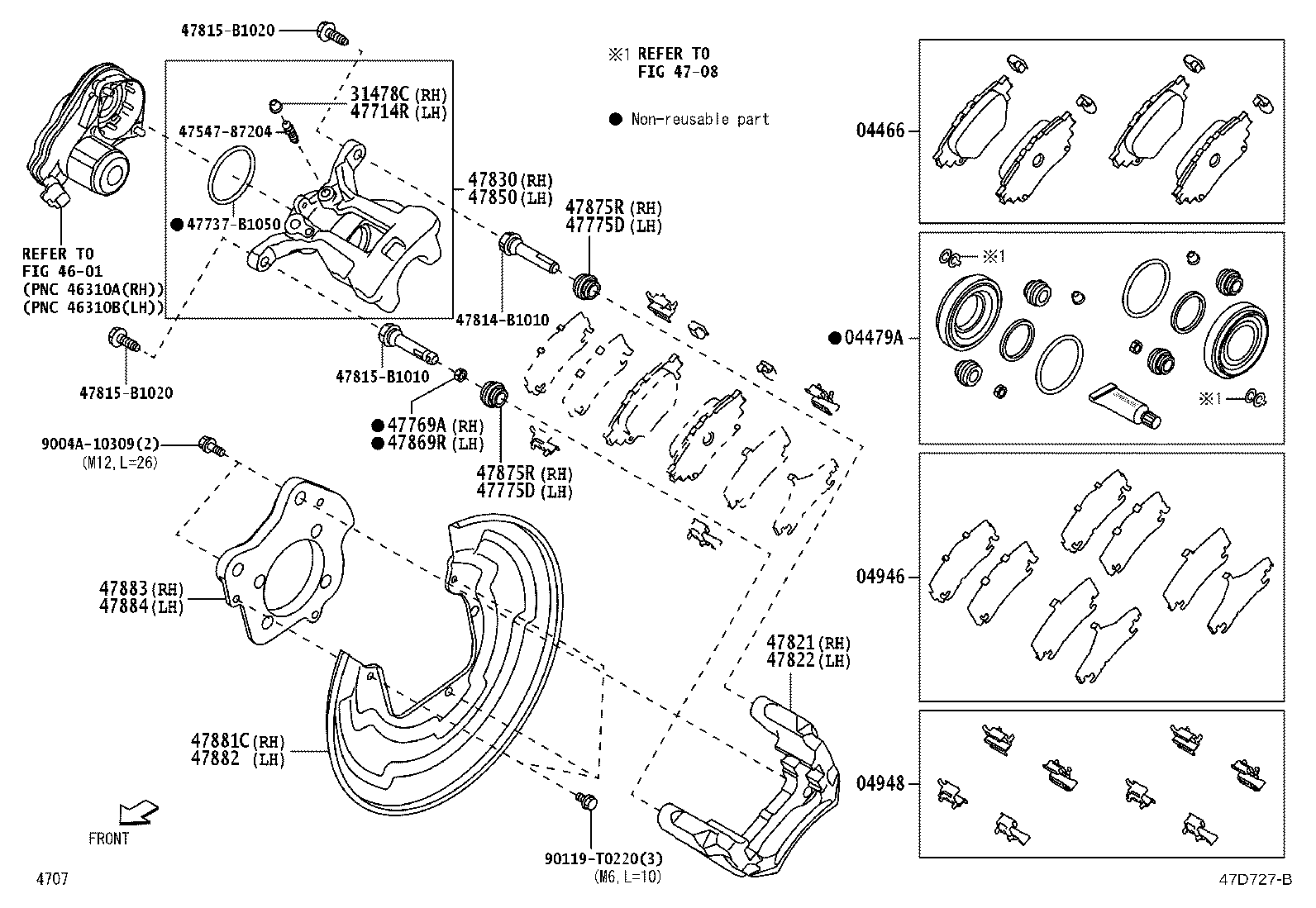

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-B1010 note |
Pad Kit, Disc Brake, Rear
2022-08 → 2022-09
ended
|
NGC102 RHD M | — | |
| 04466-B1010 note |
Pad Kit, Disc Brake, Rear
2022-08 → 2022-09
ended
|
NGC101 H;NGC102 H GCC;NGC102 +7 | — | |
| 04466-B1010 note |
Pad Kit, Disc Brake, Rear
2022-08 → 2022-09
ended
|
NGC101 M GCC | — | |
| 04466-B1010 note |
Pad Kit, Disc Brake, Rear
2022-08 → 2022-09
ended
|
NGC100 | — | |
| 04466-B1011 |
Pad Kit, Disc Brake, Rear
2022-09 → —
|
NGC102 LHD CVT M +4 | — | |
| 04466-B1011 note |
Pad Kit, Disc Brake, Rear
2022-09 → —
|
NGC102 RHD M GEN | — | |
| 04466-B1011 note |
Pad Kit, Disc Brake, Rear
2022-09 → —
|
NGC100 | — | |
| 04466-B1011 note |
Pad Kit, Disc Brake, Rear
2022-09 → —
|
NGC101 M GCC | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-B1010 |
Cylinder Kit, Disc Brake, Rear
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 04479-B1010 note |
Cylinder Kit, Disc Brake, Rear
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 04479-B1010 note |
Cylinder Kit, Disc Brake, Rear
2022-08 → —
|
NGC100 | — | |
| 04479-B1010 note |
Cylinder Kit, Disc Brake, Rear
2022-08 → —
|
NGC101 M GCC | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-B1010 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 04946-B1010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 04946-B1010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 04946-B1010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-B1010 |
Fitting Kit, Disc Brake, Rear
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 04948-B1010 note |
Fitting Kit, Disc Brake, Rear
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 04948-B1010 note |
Fitting Kit, Disc Brake, Rear
2022-08 → —
|
NGC100 | — | |
| 04948-B1010 note |
Fitting Kit, Disc Brake, Rear
2022-08 → —
|
NGC101 M GCC | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 47548-87501 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47714R — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 47548-87501 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47548-87501 note |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-B1010 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47775D — Boot, Bush Dust(FOR REAR DISC BRAKE) | ||||
| 47875-B1010 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47821 — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-B1010 note |
Mounting, Rear Disc Brake Cylinder, RH
2022-08 → —
|
NGC101 M GCC | — | |
| 47821-B1010 note |
Mounting, Rear Disc Brake Cylinder, RH
2022-08 → —
|
NGC100 | — | |
| 47821-B1010 |
Mounting, Rear Disc Brake Cylinder, RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47821-B1010 note |
Mounting, Rear Disc Brake Cylinder, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47822 — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-B1010 note |
Mounting, Rear Disc Brake Cylinder, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47822-B1010 note |
Mounting, Rear Disc Brake Cylinder, LH
2022-08 → —
|
NGC100 | — | |
| 47822-B1010 note |
Mounting, Rear Disc Brake Cylinder, LH
2022-08 → —
|
NGC101 M GCC | — | |
| 47822-B1010 |
Mounting, Rear Disc Brake Cylinder, LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-B1010 |
Cylinder Assy, Disc Brake, Rear RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47830-B1010 note |
Cylinder Assy, Disc Brake, Rear RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47830-B1010 note |
Cylinder Assy, Disc Brake, Rear RH
2022-08 → —
|
NGC100 | — | |
| 47830-B1010 note |
Cylinder Assy, Disc Brake, Rear RH
2022-08 → —
|
NGC101 M GCC | — | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-B1010 note |
Cylinder Assy, Disc Brake, Rear LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47850-B1010 note |
Cylinder Assy, Disc Brake, Rear LH
2022-08 → —
|
NGC101 M GCC | — | |
| 47850-B1010 note |
Cylinder Assy, Disc Brake, Rear LH
2022-08 → —
|
NGC100 | — | |
| 47850-B1010 |
Cylinder Assy, Disc Brake, Rear LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47869R — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-B1010 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47879-B1010 note |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47875R — Boot, Bush Dust(FOR REAR DISC BRAKE) | ||||
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC101 M GCC | — | |
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47875-B1010 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47875-B1010 note |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2022-08 → —
|
NGC100 | — | |
| 47881C — Cover, Disc Brake Dust, Rear RH | ||||
| 47881-BZ010 |
Cover, Disc Brake Dust, Rear RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47881-BZ010 note |
Cover, Disc Brake Dust, Rear RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47881-BZ010 note |
Cover, Disc Brake Dust, Rear RH
2022-08 → —
|
NGC100 | — | |
| 47881-BZ010 note |
Cover, Disc Brake Dust, Rear RH
2022-08 → —
|
NGC101 M GCC | — | |
| 47882 — Cover, Disc Brake Dust, Rear LH | ||||
| 47882-BZ010 note |
Cover, Disc Brake Dust, Rear LH
2022-08 → —
|
NGC101 M GCC | — | |
| 47882-BZ010 note |
Cover, Disc Brake Dust, Rear LH
2022-08 → —
|
NGC100 | — | |
| 47882-BZ010 note |
Cover, Disc Brake Dust, Rear LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47882-BZ010 |
Cover, Disc Brake Dust, Rear LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47883 — Bracket, Caliper Support, Rear RH | ||||
| 47883-BZ040 |
Bracket, Caliper Support, Rear RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47883-BZ040 note |
Bracket, Caliper Support, Rear RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47883-BZ040 note |
Bracket, Caliper Support, Rear RH
2022-08 → —
|
NGC100 | — | |
| 47883-BZ040 note |
Bracket, Caliper Support, Rear RH
2022-08 → —
|
NGC101 M GCC | — | |
| 47884 — Bracket, Caliper Support, Rear LH | ||||
| 47884-BZ040 |
Bracket, Caliper Support, Rear LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 47884-BZ040 note |
Bracket, Caliper Support, Rear LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 47884-BZ040 note |
Bracket, Caliper Support, Rear LH
2022-08 → —
|
NGC100 | — | |
| 47884-BZ040 note |
Bracket, Caliper Support, Rear LH
2022-08 → —
|
NGC101 M GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
