Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 47D740B 47374B — CLAMP, BRAKE TUBE, NO.4 (1 parts) 47324 — TUBE, REAR BRAKE, NO.4 (2 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (2 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (2 parts) 47371G — CLAMP, BRAKE TUBE, NO.11 (1 parts) 47371G — CLAMP, BRAKE TUBE, NO.11 (1 parts) 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (18 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (18 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 4702 — not listed in this catalogue 47371H — CLAMP, BRAKE TUBE, NO.12 (7 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (7 parts) 47325 — TUBE, REAR BRAKE, NO.5 (3 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (9 parts) 47351B — BRACKET, FLEXIBLE HOSE, NO.1 (3 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (7 parts) 47326 — TUBE, REAR BRAKE, NO.6 (3 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (7 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (9 parts) 47352B — BRACKET, FLEXIBLE HOSE, NO.2 (3 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (18 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (18 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (2 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (2 parts) 47324 — TUBE, REAR BRAKE, NO.4 (2 parts) 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (1 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (1 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (1 parts) 90105T0054 — not listed in this catalogue 9040110058 — not listed in this catalogue 4738950020 — not listed in this catalogue 4738950021 — not listed in this catalogue 90105T0054 — not listed in this catalogue 4738950020 — not listed in this catalogue 4738950021 — not listed in this catalogue 9040110058 — not listed in this catalogue 47318F — HOSE, FLEXIBLE(FOR REAR RH) (9 parts) 4738950020 — not listed in this catalogue 4738950021 — not listed in this catalogue 9040110058 — not listed in this catalogue 90105T0066 — not listed in this catalogue 47319F — HOSE, FLEXIBLE(FOR REAR LH) (9 parts) 9040110058 — not listed in this catalogue 4738950020 — not listed in this catalogue 4738950021 — not listed in this catalogue 90105T0066 — not listed in this catalogue 90105T0066 — not listed in this catalogue 90105T0066 — not listed in this catalogue

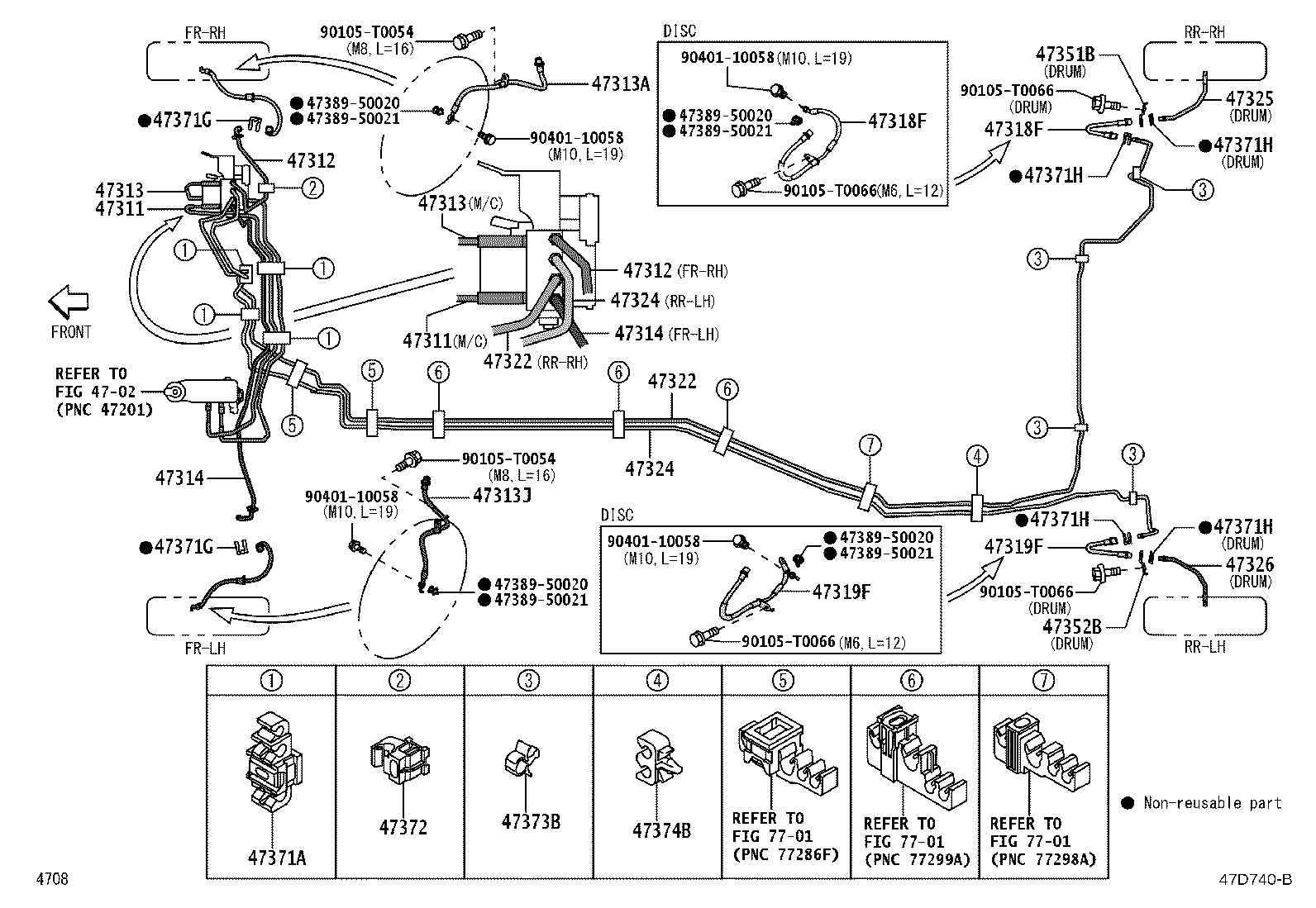

47D740B · 32 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-BZ760 note Tube, Front Brake, NO.1
2022-08 → —
NGC102 RHD CVT H +1 —
47311-BZ760 Tube, Front Brake, NO.1
2022-08 → —
NGC100,102 MA,TH;NGC102 RHD M +1 —
47311-BZ760 note Tube, Front Brake, NO.1
2022-08 → —
NGC101 CVT L —
47311-BZ760 note Tube, Front Brake, NO.1
2022-08 → —
NGC102 RHD CVT H +1 —
47311-BZ770 Tube, Front Brake, NO.1
2022-08 → —
NGC101,102 LHD H (GCC,GEN) —
47311-BZ770 note Tube, Front Brake, NO.1
2022-08 → —
NGC101 M GCC —
47311-BZ770 note Tube, Front Brake, NO.1
2022-08 → —
NGC101,102 LHD (L,M) GEN —
47311-BZ850 Tube, Front Brake, NO.1
2022-08 → —
NGC101 RHD;NGC102 RHD H +1 —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC101 CVT L —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC101 CVT L —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC102 RHD M GEN —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC100 —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC100 —
47311-BZ850 note Tube, Front Brake, NO.1
2022-08 → —
NGC100 —
47311-BZ860 Tube, Front Brake, NO.1
2022-08 → —
NGC102 PHL;NGC101,102 LHD (L,M) —
47311-BZ860 note Tube, Front Brake, NO.1
2022-08 → —
NGC102 LHD H GEN —
47311-BZ860 note Tube, Front Brake, NO.1
2022-08 → —
NGC102 LHD CVT M +1 —
47311-BZ860 note Tube, Front Brake, NO.1
2022-08 → —
NGC101 LHD CVT M +1 —
47312 — Tube, Front Brake, NO.2
47312-BZ780 Tube, Front Brake, NO.2
2022-08 → —
NGC10# RHD —
47312-BZ790 Tube, Front Brake, NO.2
2022-08 → —
NGC101,102 LHD —
47313 — Tube, Front Brake, NO.3
47313-BZ740 Tube, Front Brake, NO.3
2022-08 → —
NGC100,102 MA,TH;NGC102 RHD M +1 —
47313-BZ740 note Tube, Front Brake, NO.3
2022-08 → —
NGC102 RHD CVT H +1 —
47313-BZ740 note Tube, Front Brake, NO.3
2022-08 → —
NGC102 RHD CVT H +1 —
47313-BZ740 note Tube, Front Brake, NO.3
2022-08 → —
NGC101 CVT L —
47313-BZ750 Tube, Front Brake, NO.3
2022-08 → —
NGC101,102 LHD H (GCC,GEN) —
47313-BZ750 note Tube, Front Brake, NO.3
2022-08 → —
NGC101,102 LHD (L,M) GEN —
47313-BZ750 note Tube, Front Brake, NO.3
2022-08 → —
NGC101 M GCC —
47313-BZ790 Tube, Front Brake, NO.3
2022-08 → —
NGC101 RHD;NGC102 RHD H +1 —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC101 CVT L —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC101 CVT L —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC102 RHD M GEN —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC100 —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC100 —
47313-BZ790 note Tube, Front Brake, NO.3
2022-08 → —
NGC100 —
47313-BZ800 note Tube, Front Brake, NO.3
2022-08 → —
NGC102 LHD CVT M +1 —
47313-BZ800 note Tube, Front Brake, NO.3
2022-08 → —
NGC102 LHD H GEN —
47313-BZ800 note Tube, Front Brake, NO.3
2022-08 → —
NGC101 LHD CVT M +1 —
47313-BZ800 Tube, Front Brake, NO.3
2022-08 → —
NGC102 PHL;NGC101,102 LHD (L,M) —
47313A — Hose, Flexible, NO.1(FOR FRONT)
9004A-94145 Hose, Flexible, NO.1(FOR FRONT)
2023-03 → —
NGC102 MA —
9004A-94152 Hose, Flexible, NO.1(FOR FRONT)
2022-08 → —
NGC10#,NYC100 THP —
47313J — Hose, Flexible, NO.2(FOR FRONT)
9004A-94145 Hose, Flexible, NO.2(FOR FRONT)
2023-03 → —
NGC102 MA —
9004A-94152 Hose, Flexible, NO.2(FOR FRONT)
2022-08 → —
NGC10#,NYC100 THP —
47314 — Tube, Front Brake, NO.4
47314-BZ740 Tube, Front Brake, NO.4
2022-08 → —
NGC10# RHD —
47314-BZ750 Tube, Front Brake, NO.4
2022-08 → —
NGC101,102 LHD —
47318F — Hose, Flexible(FOR REAR RH)
47330-BZ050 note Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC101 M GCC —
47330-BZ050 note Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC102 RHD M GEN —
47330-BZ050 Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC102 (H,M) H GEN +9 —
47330-BZ050 note Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC100 —
47330-BZ080 Hose, Flexible(FOR REAR RH)
2023-03 → —
NGC102 H MA —
9004A-94151 note Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC102 LHD CVT M +1 —
9004A-94151 note Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC102 LHD H GEN —
9004A-94151 Hose, Flexible(FOR REAR RH)
2022-08 → —
NGC102 M 5F;NGC102 GEN +7 —
9004A-94153 Hose, Flexible(FOR REAR RH)
2023-03 → —
NGC102 M MA —
47319F — Hose, Flexible(FOR REAR LH)
47340-BZ050 Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC102 (H,M) H GEN +9 —
47340-BZ050 note Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC102 RHD M GEN —
47340-BZ050 note Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC100 —
47340-BZ050 note Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC101 M GCC —
47340-BZ080 Hose, Flexible(FOR REAR LH)
2023-03 → —
NGC102 H MA —
9004A-94151 Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC102 M 5F;NGC102 GEN +7 —
9004A-94151 note Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC102 LHD H GEN —
9004A-94151 note Hose, Flexible(FOR REAR LH)
2022-08 → —
NGC102 LHD CVT M +1 —
9004A-94153 Hose, Flexible(FOR REAR LH)
2023-03 → —
NGC102 M MA —
47322 — Tube, Rear Brake, NO.2
47322-BZ500 Tube, Rear Brake, NO.2
2022-08 → —
NGC10# RHD —
47322-BZ510 Tube, Rear Brake, NO.2
2022-08 → —
NGC101,102 LHD —
47324 — Tube, Rear Brake, NO.4
47324-BZ560 Tube, Rear Brake, NO.4
2022-08 → —
NGC10# RHD —
47324-BZ570 Tube, Rear Brake, NO.4
2022-08 → —
NGC101,102 LHD —
47325 — Tube, Rear Brake, NO.5
47325-BZ360 note Tube, Rear Brake, NO.5
2022-08 → —
NGC102 LHD H GEN —
47325-BZ360 Tube, Rear Brake, NO.5
2022-08 → —
NGC102 M 5F;NGC102 (GCC,MA) +7 —
47325-BZ360 note Tube, Rear Brake, NO.5
2022-08 → —
NGC102 LHD CVT M +1 —
47326 — Tube, Rear Brake, NO.6
47326-BZ360 Tube, Rear Brake, NO.6
2022-08 → —
NGC102 M 5F;NGC102 (GCC,MA) +7 —
47326-BZ360 note Tube, Rear Brake, NO.6
2022-08 → —
NGC102 LHD CVT M +1 —
47326-BZ360 note Tube, Rear Brake, NO.6
2022-08 → —
NGC102 LHD H GEN —
47351B — Bracket, Flexible Hose, NO.1
47351-BZ280 Bracket, Flexible Hose, NO.1
2022-08 → —
NGC102 M 5F;NGC102 (GCC,MA) +7 —
47351-BZ280 note Bracket, Flexible Hose, NO.1
2022-08 → —
NGC102 LHD CVT M +1 —
47351-BZ280 note Bracket, Flexible Hose, NO.1
2022-08 → —
NGC102 LHD H GEN —
47352B — Bracket, Flexible Hose, NO.2
47352-BZ100 Bracket, Flexible Hose, NO.2
2022-08 → —
NGC102 M 5F;NGC102 (GCC,MA) +7 —
47352-BZ100 note Bracket, Flexible Hose, NO.2
2022-08 → —
NGC102 LHD CVT M +1 —
47352-BZ100 note Bracket, Flexible Hose, NO.2
2022-08 → —
NGC102 LHD H GEN —
47371A — Clamp, Brake Tube, NO.1
47371-BZ070 Clamp, Brake Tube, NO.1
2022-08 → —
NGC10#;NYC100 LHD —
47371G — Clamp, Brake Tube, NO.11
90044-65441 Clamp, Brake Tube, NO.11
2022-08 → —
NGC10# —
47371H — Clamp, Brake Tube, NO.12
90044-65441 Clamp, Brake Tube, NO.12
2022-08 → —
NGC102 LHD CVT M +4 —
90044-65441 note Clamp, Brake Tube, NO.12
2022-08 → —
NGC102 RHD M GEN —
90044-65441 note Clamp, Brake Tube, NO.12
2022-08 → —
NGC100 —
90044-65441 note Clamp, Brake Tube, NO.12
2022-08 → —
NGC101 M GCC —
90044-65441 Clamp, Brake Tube, NO.12
2022-08 → —
NGC102 M 5F;NGC102 (GCC,MA) +7 —
90044-65441 note Clamp, Brake Tube, NO.12
2022-08 → —
NGC102 LHD CVT M +1 —
90044-65441 note Clamp, Brake Tube, NO.12
2022-08 → —
NGC102 LHD H GEN —
47372 — Clamp, Brake Tube, NO.2
47372-BZ020 Clamp, Brake Tube, NO.2
2022-08 → —
NGC10# —
47373B — Clamp, Brake Tube, NO.3
47371-BZ140 Clamp, Brake Tube, NO.3
2022-08 → —
NGC10# —
47374B — Clamp, Brake Tube, NO.4
47372-BZ080 Clamp, Brake Tube, NO.4
2022-08 → —
NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
