Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

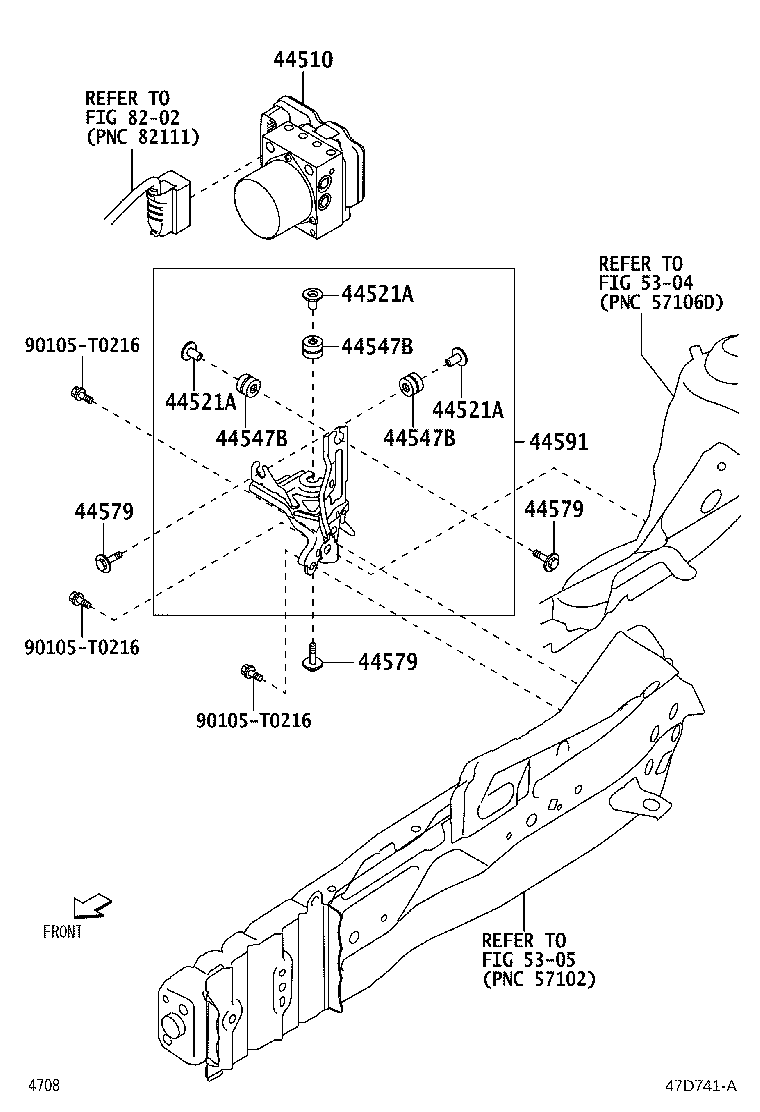

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-BZ770 |
Actuator Assy, Brake
2022-08 → —
|
NGC101,102 LHD 5F | — | |
| 44050-BZ810 |
Actuator Assy, Brake
2022-08 → —
|
NGC102 PHL;NGC102 M GCC;NGC101 +3 | — | |
| 44050-BZ860 |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZ860 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZ860 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 44050-BZ870 |
Actuator Assy, Brake
2022-08 → —
|
NGC101,102 LHD H (GCC,GEN) | — | |
| 44050-BZ870 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 M GCC | — | |
| 44050-BZ890 |
Actuator Assy, Brake
2022-08 → —
|
NGC102 RHD M | — | |
| 44050-BZ890 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 CVT L | — | |
| 44050-BZA00 |
Actuator Assy, Brake
2022-08 → —
|
NGC102 5F H | — | |
| 44050-BZA20 |
Actuator Assy, Brake
2022-08 → —
|
NGC101 RHD (L,M) | — | |
| 44050-BZA20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 CVT L | — | |
| 44050-BZA40 note |
Actuator Assy, Brake
2022-08 → —
|
NGC100 | — | |
| 44050-BZA60 |
Actuator Assy, Brake
2022-08 → —
|
NGC101,102 RHD CVT H +1 | — | |
| 44050-BZA70 |
Actuator Assy, Brake
2023-03 → —
|
NGC102 H MA | — | |
| 44050-BZA70 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 44050-BZA70 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 44050-BZA80 note |
Actuator Assy, Brake
2022-08 → —
|
NGC100 | — | |
| 44050-BZF10 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD 5F | — | |
| 44050-BZF10 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 5F L | — | |
| 44050-BZF10 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 5F M GEN | — | |
| 44050-BZF20 |
Actuator Assy, Brake
2022-08 → —
|
NGC102 CVT L | — | |
| 44050-BZF20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 44050-BZF20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 44050-BZF20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZF20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 44050-BZF20 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 M GCC | — | |
| 44050-BZF50 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 44050-BZF50 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 LHD H GEN | — | |
| 44050-BZF50 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 H GCC | — | |
| 44050-BZF50 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 LHD H GEN | — | |
| 44050-BZF60 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZF80 note |
Actuator Assy, Brake
2022-08 → —
|
NGC100 | — | |
| 44050-BZF80 note |
Actuator Assy, Brake
2022-08 → —
|
NGC100 | — | |
| 44050-BZF90 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 CVT L | — | |
| 44050-BZF90 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 CVT L | — | |
| 44050-BZF90 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101,102 RHD M GEN | — | |
| 44050-BZF90 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 RHD M | — | |
| 44050-BZF90 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 RHD M | — | |
| 44050-BZG30 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 44050-BZG30 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 RHD H | — | |
| 44050-BZG30 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 44050-BZG40 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101,102 LHD 5F GEN | — | |
| 44050-BZG60 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 44050-BZG70 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZG90 |
Actuator Assy, Brake
2022-08 → —
|
NGC100 | — | |
| 44050-BZJ00 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD 5F | — | |
| 44050-BZJ00 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 5F L | — | |
| 44050-BZJ00 note |
Actuator Assy, Brake
2022-08 → —
|
NGC101 5F M GEN | — | |
| 44050-BZJ10 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44050-BZJ10 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 CVT L | — | |
| 44050-BZJ30 note |
Actuator Assy, Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-0D010 |
Collar, Brake Actuator Case, NO.1
2022-08 → —
|
NGC10# | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-02050 |
Cushion, Brake Actuator Bracket
2022-08 → —
|
NGC10# | — | |
| 44579 — Bolt, Brake Actuator Bracket | ||||
| 90119-T0199 |
Bolt, Brake Actuator Bracket
2022-08 → —
|
NGC10# | — | |
| 44591 — Bracket, Brake Actuator, NO.1 | ||||
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101,102 LHD (L,M) GEN | — | |
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101 M GCC | — | |
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101 5F M GEN | — | |
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 5F L;NGC102 LHD +2 | — | |
| 44591-BZ280 |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101,102 LHD H (GCC,GEN) | — | |
| 44591-BZ280 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 5F L | — | |
| 44591-BZ290 |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC100,102 MA,TH;NGC102 RHD M +1 | — | |
| 44591-BZ290 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 44591-BZ290 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 44591-BZ290 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101 CVT L | — | |
| 44591-BZ400 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101 CVT L | — | |
| 44591-BZ400 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC100 | — | |
| 44591-BZ400 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC100 | — | |
| 44591-BZ400 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC100 | — | |
| 44591-BZ400 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 44591-BZ400 |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC101 RHD;NGC102 RHD H +1 | — | |
| 44591-BZ410 |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 PHL;NGC101,102 LHD (L,M) | — | |
| 44591-BZ410 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 44591-BZ410 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 44591-BZ410 note |
Bracket, Brake Actuator, NO.1
2022-08 → —
|
NGC102 LHD H GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
