Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

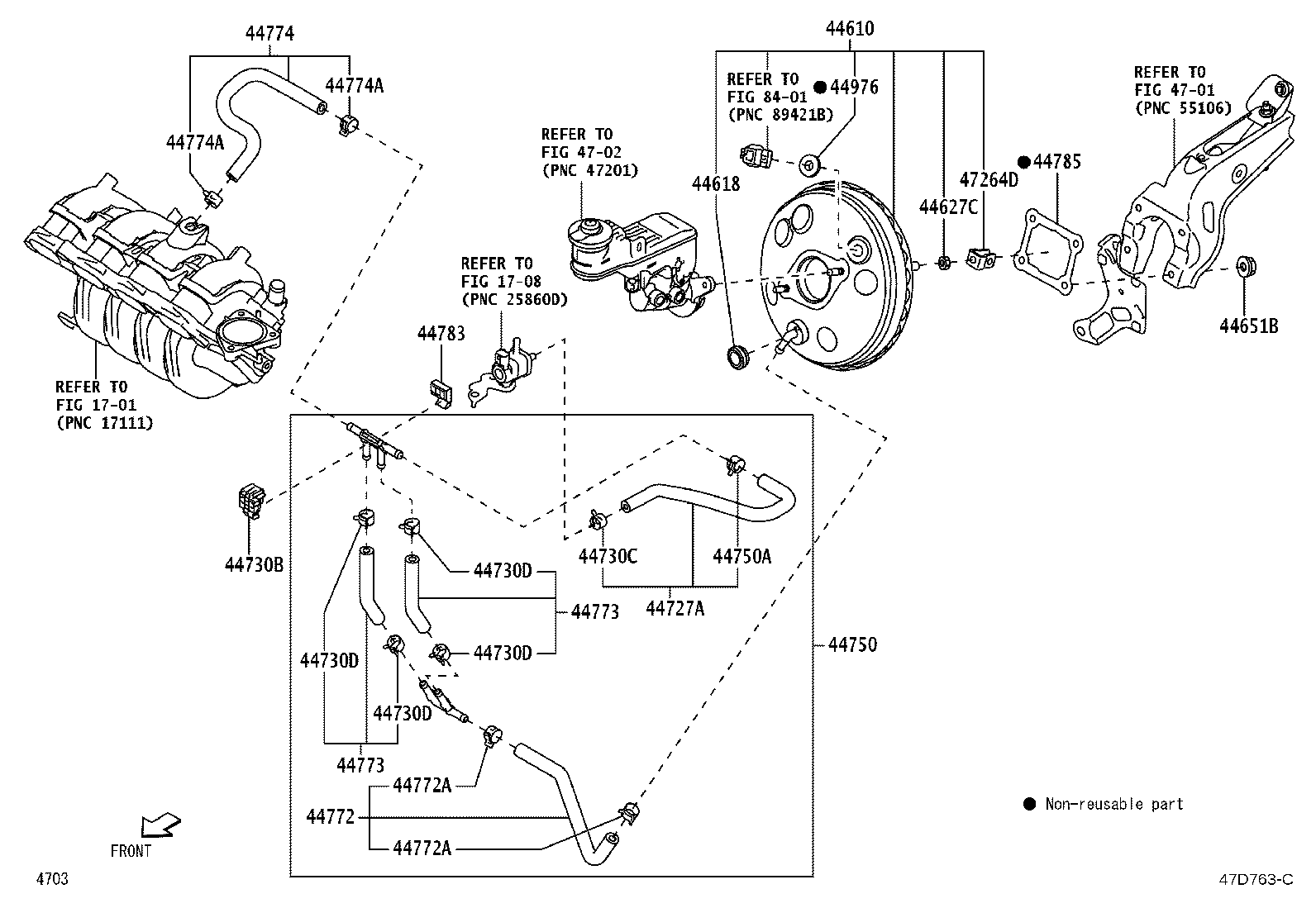

Exploded illustration 47D763C 1701 — not listed in this catalogue 44773 — HOSE, VACUUM, NO.2 (8 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (7 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (7 parts) 44730B — CLAMP, VACUUM HOSE (7 parts) 44785 — GASKET, BRAKE BOOSTER (1 parts) 44774A — CLIP(FOR UNION TO CONNECTOR TUBE HOSE) (7 parts) 44774A — CLIP(FOR UNION TO CONNECTOR TUBE HOSE) (7 parts) 44774 — HOSE, UNION TO CONNECTOR TUBE (7 parts) 44772 — HOSE, CHECK VALVE TO CONNECTOR TUBE (7 parts) 44773 — HOSE, VACUUM, NO.2 (8 parts) 44730C — CLIP(FOR VACUUM HOSE) (7 parts) 44750A — CLIP(FOR VACUUM HOSE ASSY) (9 parts) 44727A — HOSE, AIR, NO.2 (7 parts) 44730D — CLIP(FOR VACUUM HOSE, NO.1) (7 parts) 44730D — CLIP(FOR VACUUM HOSE, NO.1) (7 parts) 44730D — CLIP(FOR VACUUM HOSE, NO.1) (7 parts) 44730D — CLIP(FOR VACUUM HOSE, NO.1) (7 parts) 44651B — NUT, BOOSTER (1 parts) 47264D — CLEVIS, BRAKE MASTER CYLINDER PUSH ROD (1 parts) 44618 — SEAL, BOOSTER BODY (6 parts) 44610 — BOOSTER ASSY, BRAKE (11 parts) 4702 — not listed in this catalogue 8401 — not listed in this catalogue 44976 — SEAL, BOOSTER (1 parts) 44783 — CLAMP, VACUUM HOSE (8 parts) 44750 — HOSE ASSY, VACUUM (18 parts) 44627C — NUT, BOOSTER SLEEVE CYLINDER (1 parts) 1708 — not listed in this catalogue 4701 — not listed in this catalogue
47D763C · 25 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
121 parts on this figure
Part number Description Fitment Price
44610 — Booster Assy, Brake
44610-BZB00 Booster Assy, Brake
2022-08 → —
NGC101,102 RHD —
44610-BZB10 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC102 H GCC —
44610-BZB10 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC102 H GCC —
44610-BZB10 Booster Assy, Brake
2023-10 → —
NGC101 5F L;NGC102 CVT +3 —
44610-BZB10 Booster Assy, Brake
2022-08 → —
NGC102 5F L;NGC101,102 LHD +4 —
44610-BZB20 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC101 M GCC —
44610-BZB20 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44610-BZB20 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44610-BZB20 Booster Assy, Brake
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44610-BZB20 note Booster Assy, Brake
2022-08 → 2023-10 ended
NGC102 5F L —
44610-BZB30 Booster Assy, Brake
2022-08 → —
NGC100 —
44618 — Seal, Booster Body
44685-BZ020 Seal, Booster Body
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44685-BZ020 note Seal, Booster Body
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44685-BZ020 note Seal, Booster Body
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44685-BZ020 note Seal, Booster Body
2022-08 → 2023-10 ended
NGC102 5F L —
44685-BZ020 note Seal, Booster Body
2022-08 → 2023-10 ended
NGC101 M GCC —
44685-BZ020 Seal, Booster Body
2022-08 → —
NGC100 —
44627C — Nut, Booster Sleeve Cylinder
94130-01002 Nut, Booster Sleeve Cylinder
2022-08 → —
NGC10# —
44651B — Nut, Booster
90041-79300 Nut, Booster
2022-08 → —
NGC10# —
44727A — Hose, Air, NO.2
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-05 ended
NGC102 H GCC —
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-05 ended
NGC102 H GCC —
44727-BZ030 Hose, Air, NO.2
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-10 ended
NGC102 5F L —
44727-BZ030 note Hose, Air, NO.2
2022-08 → 2023-10 ended
NGC101 M GCC —
44730B — Clamp, Vacuum Hose
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 M GCC —
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-05 ended
NGC102 H GCC —
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC102 5F L —
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44783-0D020 Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-05 ended
NGC102 H GCC —
44783-0D020 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44730C — Clip(FOR VACUUM HOSE)
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-10 ended
NGC101 M GCC —
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-10 ended
NGC102 5F L —
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
9004A-46337 Clip(FOR VACUUM HOSE)
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-05 ended
NGC102 H GCC —
9004A-46337 note Clip(FOR VACUUM HOSE)
2022-08 → 2023-05 ended
NGC102 H GCC —
44730D — Clip(FOR VACUUM HOSE, NO.1)
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-10 ended
NGC102 5F L —
90044-67161 note Clip(FOR VACUUM HOSE, NO.1)
2022-08 → 2023-10 ended
NGC101 M GCC —
44750 — Hose Assy, Vacuum
44750-BZ510 Hose Assy, Vacuum
2023-03 → —
NGC102 MA —
44750-BZ530 Hose Assy, Vacuum
2022-08 → —
NGC101,102 RHD GEN —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC101 M GCC —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC102 5F L —
44750-BZ540 Hose Assy, Vacuum
2023-10 → —
NGC101 5F L;NGC102 CVT +3 —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC101 LHD M GEN —
44750-BZ540 Hose Assy, Vacuum
2022-08 → —
NGC102 5F L;NGC101,102 LHD +4 —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC102 5F L;NGC102 LHD +2 —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC102 H GCC —
44750-BZ540 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC102 H GCC —
44750-BZ560 Hose Assy, Vacuum
2022-08 → —
NGC100 —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC102 5F L —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC101 M GCC —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC102 H GCC —
44750-BZ610 note Hose Assy, Vacuum
2022-08 → 2023-05 ended
NGC102 H GCC —
44750-BZ610 Hose Assy, Vacuum
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44750A — Clip(FOR VACUUM HOSE ASSY)
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC101 M GCC —
90044-67161 Clip(FOR VACUUM HOSE ASSY)
2023-10 → —
NGC101 5F L;NGC102 CVT +3 —
90044-67161 Clip(FOR VACUUM HOSE ASSY)
2022-08 → —
NGC101 GC102 5F (H,M) +10 —
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC102 H GCC —
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC102 H GCC —
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC102 5F L —
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
90044-67161 note Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
90044-67161 Clip(FOR VACUUM HOSE ASSY)
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44772 — Hose, Check Valve TO Connector Tube
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-05 ended
NGC102 H GCC —
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-05 ended
NGC102 H GCC —
44772-BZ200 Hose, Check Valve TO Connector Tube
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-10 ended
NGC102 5F L —
44772-BZ200 note Hose, Check Valve TO Connector Tube
2022-08 → 2023-10 ended
NGC101 M GCC —
44772A — Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-10 ended
NGC101 M GCC —
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-10 ended
NGC102 5F L —
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
90044-67161 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 note Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44773 — Hose, Vacuum, NO.2
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-05 ended
NGC102 H GCC —
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-05 ended
NGC102 H GCC —
44770-BZ040 Hose, Vacuum, NO.2
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-10 ended
NGC102 5F L —
44770-BZ040 note Hose, Vacuum, NO.2
2022-08 → 2023-10 ended
NGC101 M GCC —
44770-BZ050 Hose, Vacuum, NO.2
2022-08 → —
NGC100 —
44774 — Hose, Union TO Connector Tube
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-10 ended
NGC101 M GCC —
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-10 ended
NGC102 5F L —
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44774-BZ110 Hose, Union TO Connector Tube
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-05 ended
NGC102 H GCC —
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-05 ended
NGC102 H GCC —
44774-BZ110 note Hose, Union TO Connector Tube
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44774A — Clip(FOR UNION TO CONNECTOR TUBE HOSE)
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-05 ended
NGC102 H GCC —
90044-67161 Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-10 ended
NGC102 5F L —
90044-67161 note Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2022-08 → 2023-10 ended
NGC101 M GCC —
44783 — Clamp, Vacuum Hose
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-05 ended
NGC102 H GCC —
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 M GCC —
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC102 5F L —
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC102 5F L;NGC102 LHD +2 —
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 LHD M GEN —
44783-0D030 Clamp, Vacuum Hose
2022-08 → 2023-10 ended
NGC101 5F L;NGC102 CVT +3 —
44783-0D030 note Clamp, Vacuum Hose
2022-08 → 2023-05 ended
NGC102 H GCC —
44783-B2010 Clamp, Vacuum Hose
2022-08 → —
NGC100 —
44785 — Gasket, Brake Booster
47275-BZ010 Gasket, Brake Booster
2022-08 → —
NGC10# —
44976 — Seal, Booster
44685-BZ030 Seal, Booster
2022-08 → —
NGC10# —
47264D — Clevis, Brake Master Cylinder Push Rod
47264-BZ110 Clevis, Brake Master Cylinder Push Rod
2022-08 → —
NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
