Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

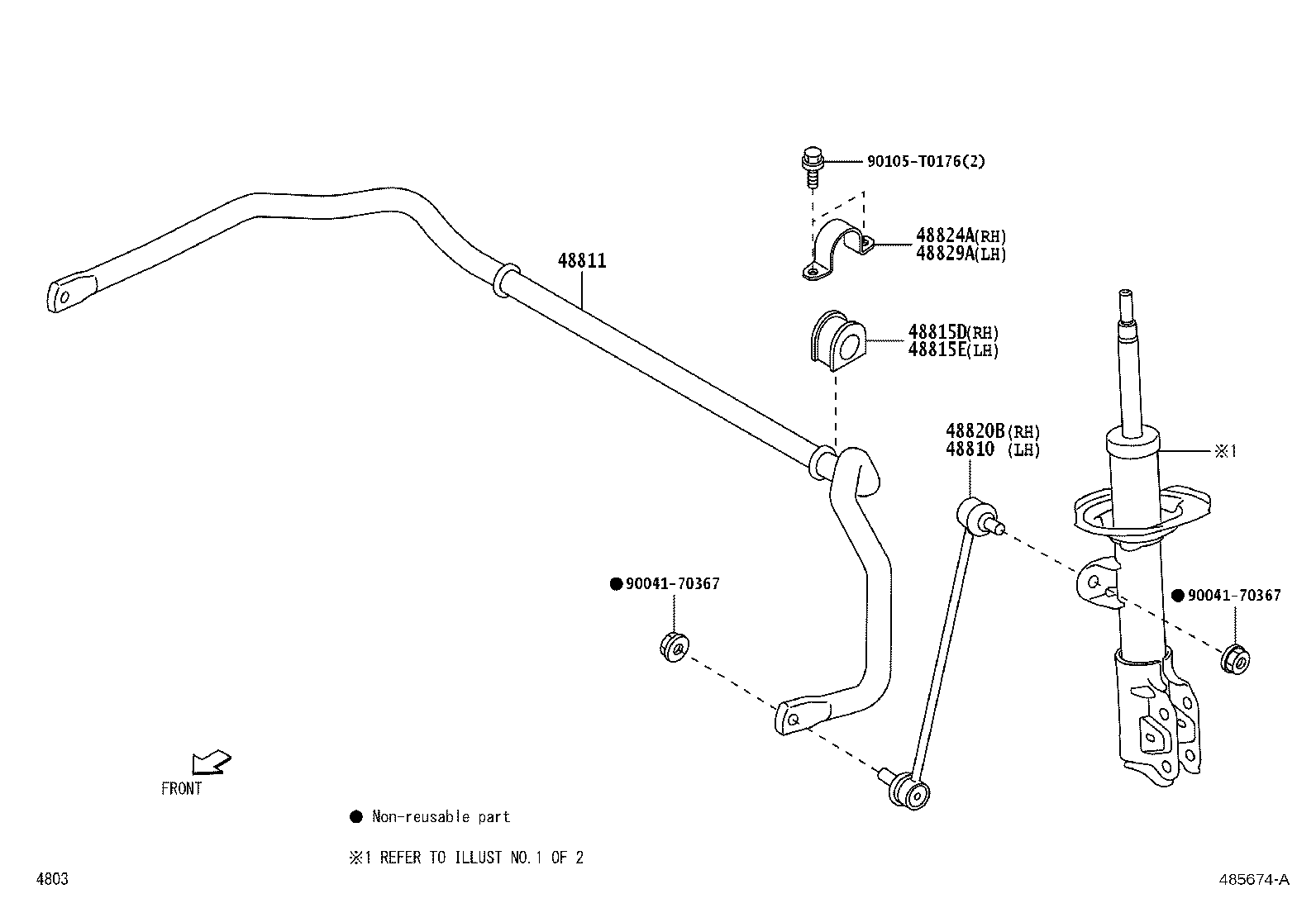

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48810 — Link Assy, Front Stabilizer, LH | ||||
| 48820-BZ120 |
Link Assy, Front Stabilizer, LH
2022-08 → —
|
NGC10# | — | |
| 48811 — Bar, Stabilizer, Front | ||||
| 48811-BZ350 |
Bar, Stabilizer, Front
2022-08 → —
|
NGC10# | — | |
| 48815D — Bush, Front Stabilizer Bar, RH | ||||
| 48815-BZ360 |
Bush, Front Stabilizer Bar, RH
2022-08 → —
|
NGC10# | — | |
| 48815E — Bush, Front Stabilizer Bar, LH | ||||
| 48815-BZ360 |
Bush, Front Stabilizer Bar, LH
2022-08 → —
|
NGC10# | — | |
| 48820B — Link Assy, Front Stabilizer, RH | ||||
| 48820-BZ120 |
Link Assy, Front Stabilizer, RH
2022-08 → —
|
NGC10# | — | |
| 48824A — Bracket, Front Stabilizer, NO.1 RH | ||||
| 48824-BZ210 |
Bracket, Front Stabilizer, NO.1 RH
2022-08 → —
|
NGC10# | — | |
| 48829A — Bracket, Front Stabilizer, NO.1 LH | ||||
| 48824-BZ210 |
Bracket, Front Stabilizer, NO.1 LH
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
