Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

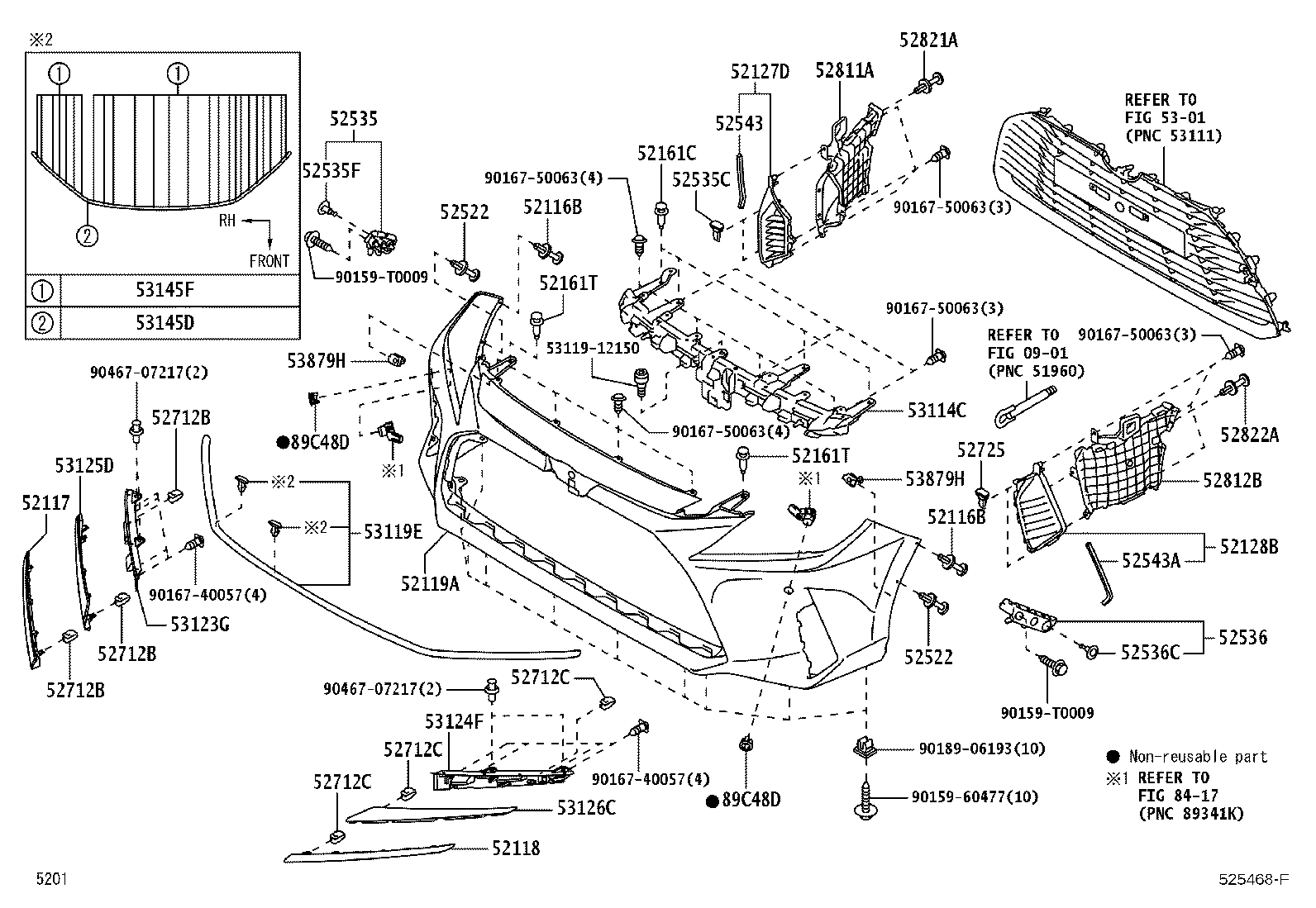

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52116B — Retainer, Front Bumper | ||||
| 90467-05170 |
Retainer, Front Bumper
2022-08 → —
|
NGC10#;NYC100 THP | — | |
| 52117 — Moulding, Bumper Side, RH | ||||
| 53127-BZ030 |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC10# THP (L,M) | — | |
| 53127-BZ030 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC100 | — | |
| 53127-BZ040-B0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC100 | — | |
| 53127-BZ040-C0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC102 PHL | — | |
| 53127-BZ040-C0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC101,102 H (GCC,GEN) | — | |
| 53127-BZ040-C0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC100 | — | |
| 53127-BZ040-C0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC100 | — | |
| 53127-BZ040-C0 note |
Moulding, Bumper Side, RH
2022-08 → —
|
NGC100 | — | |
| 53127-BZ050 |
Moulding, Bumper Side, RH
2023-03 → —
|
NGC102 M MA | — | |
| 53127-BZ060-C0 note |
Moulding, Bumper Side, RH
2023-03 → —
|
NGC102 H MA | — | |
| 52118 — Moulding, Bumper Side, LH | ||||
| 53128-BZ010 |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC10# THP (L,M) | — | |
| 53128-BZ010 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC100 | — | |
| 53128-BZ020-B0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC100 | — | |
| 53128-BZ020-C0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC100 | — | |
| 53128-BZ020-C0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC100 | — | |
| 53128-BZ020-C0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC101,102 H (GCC,GEN) | — | |
| 53128-BZ020-C0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC102 PHL | — | |
| 53128-BZ020-C0 note |
Moulding, Bumper Side, LH
2022-08 → —
|
NGC100 | — | |
| 53128-BZ030 |
Moulding, Bumper Side, LH
2023-03 → —
|
NGC102 M MA | — | |
| 53128-BZ040-C0 note |
Moulding, Bumper Side, LH
2023-03 → —
|
NGC102 H MA | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-BZ910 note |
Cover, Front Bumper
2022-08 → —
|
NGC102 5F H;NGC100,101 L,M;NGC102 +4 | — | |
| 52119-BZ910 note |
Cover, Front Bumper
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 52119-BZ910 note |
Cover, Front Bumper
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 52119-BZ910 note |
Cover, Front Bumper
2022-08 → —
|
NGC100 | — | |
| 52119-BZ911 note |
Cover, Front Bumper
2022-08 → —
|
NGC102 RHD CVT GEN;NGC102 +5 | — | |
| 52119-BZ911 note |
Cover, Front Bumper
2022-08 → —
|
NGC100 | — | |
| 52119-BZ911 note |
Cover, Front Bumper
2022-08 → —
|
NGC100 | — | |
| 52119-BZ911 note |
Cover, Front Bumper
2022-08 → —
|
NGC100 | — | |
| 52119-BZ912 note |
Cover, Front Bumper
2023-03 → —
|
NGC102 MA | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-BZC60-B2 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC100 | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2023-03 → —
|
NGC102 H MA | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC101,102 H (GCC,GEN) | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC100 | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC100 | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC102 PHL | — | |
| 52127-BZC60-C0 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC100 | — | |
| 52127-BZC70 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC10# L,M | — | |
| 52127-BZC70 note |
Cover, Front Bumper Hole, RH
2022-08 → —
|
NGC100 | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-BZ420-B2 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC100 | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC102 PHL | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC101,102 H (GCC,GEN) | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC100 | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC100 | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC100 | — | |
| 52128-BZ420-C0 note |
Cover, Front Bumper Hole, LH
2023-03 → —
|
NGC102 H MA | — | |
| 52128-BZ430 |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC10# L,M | — | |
| 52128-BZ430 note |
Cover, Front Bumper Hole, LH
2022-08 → —
|
NGC100 | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-0K040 |
Piece, Front Bumper
2022-08 → —
|
NGC10# | — | |
| 52161T — Piece, Front Bumper | ||||
| 52161-0K040 |
Piece, Front Bumper
2022-08 → —
|
NGC10# | — | |
| 52522 — Retainer, Front Bumper Upper Side | ||||
| 90467-05170 |
Retainer, Front Bumper Upper Side
2022-08 → —
|
NGC10# | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-BZ010 |
Retainer, Front Bumper Side, RH
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 52535-BZ020 |
Retainer, Front Bumper Side, RH
2023-03 → —
|
NGC102 MA | — | |
| 52535C — Retainer, Front Bumper Side | ||||
| 75392-0K010 |
Retainer, Front Bumper Side
2022-08 → —
|
NGC10#,NYC100 THP (H,L,M) | — | |
| 75392-0K020 |
Retainer, Front Bumper Side
2023-03 → —
|
NGC102 MA | — | |
| 52535F — Clip, Front Bumper Side Retainer | ||||
| 90467-09237 |
Clip, Front Bumper Side Retainer
2022-08 → —
|
NGC10# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-BZ010 |
Retainer, Front Bumper Side, LH
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 52536-BZ020 |
Retainer, Front Bumper Side, LH
2023-03 → —
|
NGC102 MA | — | |
| 52536C — Clip, Front Bumper Side Retainer | ||||
| 90467-09237 |
Clip, Front Bumper Side Retainer
2022-08 → —
|
NGC10# | — | |
| 52543 — Seal, Front Bumper Side, RH | ||||
| 52543-BZ190 |
Seal, Front Bumper Side, RH
2022-08 → —
|
NGC10# | — | |
| 52543A — Seal, Front Bumper Side | ||||
| 52543-BZ190 |
Seal, Front Bumper Side
2022-08 → —
|
NGC10# | — | |
| 52712B — Clip, Front Bumper Moulding | ||||
| 90467-05171 |
Clip, Front Bumper Moulding
2022-08 → —
|
NGC10# | — | |
| 52712C — Clip, Front Bumper Moulding, NO.2 | ||||
| 90467-05171 |
Clip, Front Bumper Moulding, NO.2
2022-08 → —
|
NGC10# | — | |
| 52725 — Retainer, Front Bumper Side Moulding | ||||
| 75392-0K010 |
Retainer, Front Bumper Side Moulding
2022-08 → —
|
NGC10#,NYC100 THP (H,L,M) | — | |
| 75392-0K020 |
Retainer, Front Bumper Side Moulding
2023-03 → —
|
NGC102 MA | — | |
| 52811A — Duct, Cool Air Intake, NO.1 | ||||
| 52811-BZ010 |
Duct, Cool Air Intake, NO.1
2022-08 → —
|
NGC10# | — | |
| 52812B — Duct, Cool Air Intake, NO.2 | ||||
| 52812-BZ010 |
Duct, Cool Air Intake, NO.2
2022-08 → —
|
NGC10# | — | |
| 52821A — Clip, Air Intake Duct | ||||
| 90467-05170 |
Clip, Air Intake Duct
2022-08 → —
|
NGC10#;NYC100 THP | — | |
| 52822A — Clip, Air Intake Duct | ||||
| 90467-05170 |
Clip, Air Intake Duct
2022-08 → —
|
NGC10#;NYC100 THP | — | |
| 53114C — Grille, Radiator, Inner | ||||
| 53114-BZ150 |
Grille, Radiator, Inner
2022-08 → —
|
NGC10# | — | |
| 53119E — Protector, Radiator Grille | ||||
| 53119-BZ030 |
Protector, Radiator Grille
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 53119-BZ040 |
Protector, Radiator Grille
2023-03 → —
|
NGC102 MA | — | |
| 53123G — Moulding, Radiator Grille Side, RH | ||||
| 53123-BZ220 |
Moulding, Radiator Grille Side, RH
2022-08 → —
|
NGC10# THP | — | |
| 53123-BZ410 |
Moulding, Radiator Grille Side, RH
2023-03 → —
|
NGC102 MA | — | |
| 53124F — Moulding, Radiator Grille Side, LH | ||||
| 53124-BZ300 |
Moulding, Radiator Grille Side, LH
2022-08 → —
|
NGC10# THP | — | |
| 53124-BZ320 |
Moulding, Radiator Grille Side, LH
2023-03 → —
|
NGC102 MA | — | |
| 53125D — Moulding, Radiator Grille, NO.5 | ||||
| 53125-BZ900 note |
Moulding, Radiator Grille, NO.5
2022-08 → —
|
NGC100 | — | |
| 53125-BZ900 |
Moulding, Radiator Grille, NO.5
2022-08 → —
|
NGC10# THP | — | |
| 53125-BZ901 |
Moulding, Radiator Grille, NO.5
2023-03 → —
|
NGC102 MA | — | |
| 53126C — Moulding, Radiator Grille, NO.6 | ||||
| 53126-BZ900 |
Moulding, Radiator Grille, NO.6
2022-08 → —
|
NGC10# THP | — | |
| 53126-BZ900 note |
Moulding, Radiator Grille, NO.6
2022-08 → —
|
NGC100 | — | |
| 53126-BZ901 |
Moulding, Radiator Grille, NO.6
2023-03 → —
|
NGC102 MA | — | |
| 53145D — Clip, Radiator Grille | ||||
| 53145-60030 note |
Clip, Radiator Grille
2022-08 → —
|
NGC10# | — | |
| 53145F — Clip, Radiator Grille Garnish | ||||
| 53145-0K010 |
Clip, Radiator Grille Garnish
2022-08 → —
|
NGC10# | — | |
| 53879H — Retainer, Front Fender Liner | ||||
| 53879-B2020 |
Retainer, Front Fender Liner
2022-08 → —
|
NGC10# | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-BZ290-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC101 H GEN;NGC102 LHD +5 | — | |
| 89348-BZ290-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 89348-BZ290-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NYC100 H TH;NGC101 H +7 | — | |
| 89348-BZ290-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-03 → —
|
NGC102 MA | — | |
| 89348-BZ290-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-B2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +5 | — | |
| 89348-BZ290-B3 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-03 → —
|
NGC102 MA | — | |
| 89348-BZ290-B4 note |
Retainer, Ultrasonic Sensor, Front Corner
2024-10 → —
|
NGC100 | — | |
| 89348-BZ290-B4 note |
Retainer, Ultrasonic Sensor, Front Corner
2024-10 → —
|
NGC100 | — | |
| 89348-BZ290-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 89348-BZ290-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 89348-BZ290-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 89348-BZ290-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NYC100 H TH;NGC101 H +7 | — | |
| 89348-BZ290-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89348-BZ290-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89348-BZ290-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-08 → —
|
NGC100 | — | |
| 89348-BZ290-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
