Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09

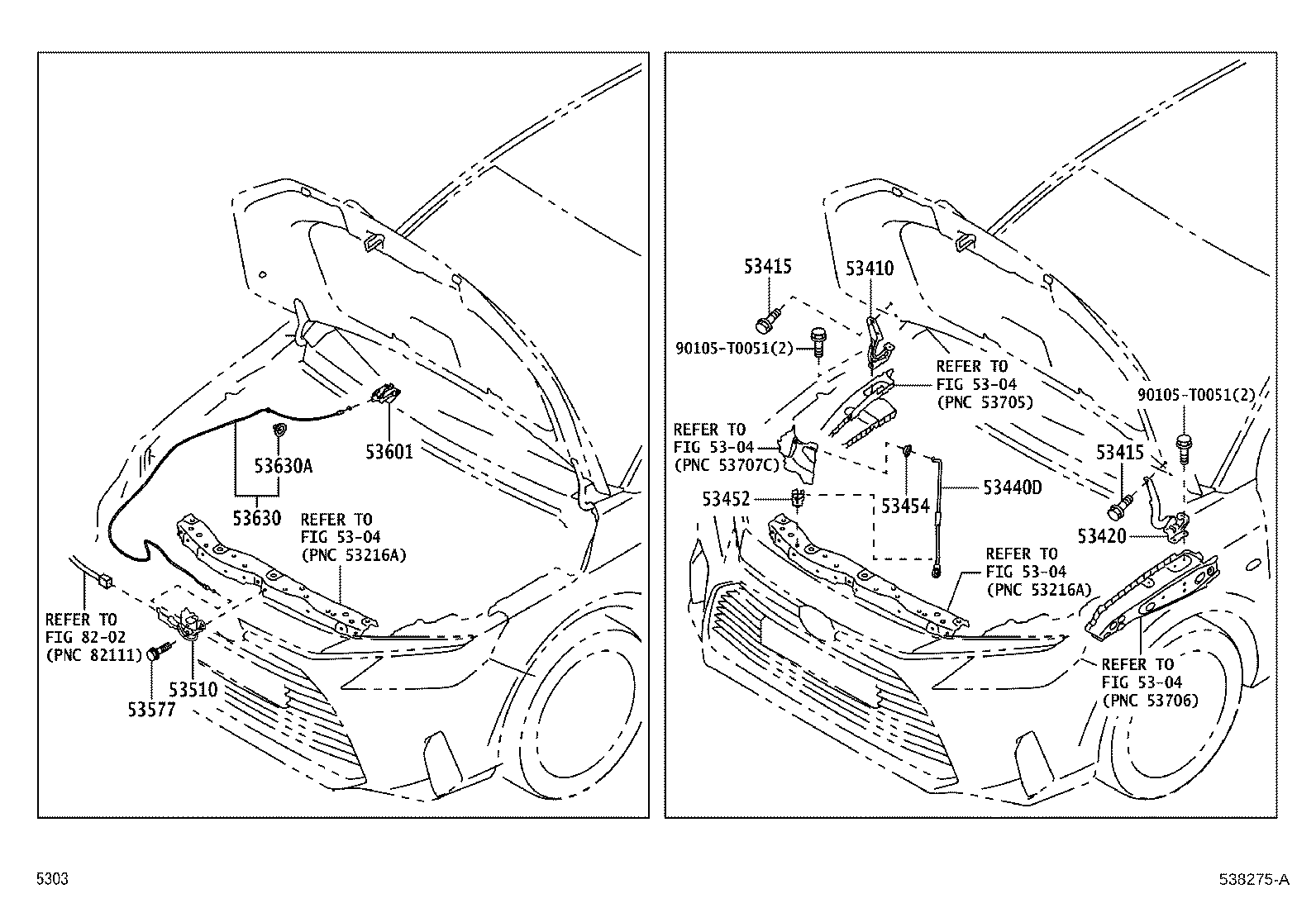

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
53410 — Hinge Assy, Hood, RH
53410-BZ080	Hinge Assy, Hood, RH 2022-08 → —	NGC10#	—
53415 — Bolt, Hood Hinge
90105-T0051	Bolt, Hood Hinge 2022-08 → —	NGC10#	—
53420 — Hinge Assy, Hood, LH
53420-BZ080	Hinge Assy, Hood, LH 2022-08 → —	NGC10#	—
53440D — Support Assy, Hood
53440-BZ170	Support Assy, Hood 2022-08 → —	NGC10#	—
53452 — Holder, Hood Stay
53452-BZ100	Holder, Hood Stay 2022-08 → —	NGC10#	—
53454 — Clip, Hood Support Rod
90480-T0009	Clip, Hood Support Rod 2022-08 → —	NGC10#	—
53510 — Lock Assy, Hood
53510-BZ450	Lock Assy, Hood 2022-08 → —	NGC10# RHD	—
53510-BZ460	Lock Assy, Hood 2022-08 → —	NGC101,102,NYC100 LHD	—
53577 — Bolt, Hood Lock
90105-T0051	Bolt, Hood Lock 2022-08 → —	NGC10#	—
53601 — Lever Sub-assy, Hood Lock Control
53601-0D040-C1 note	Lever Sub-assy, Hood Lock Control 2022-08 → —	NGC100	—
53601-0D040-C1 note	Lever Sub-assy, Hood Lock Control 2022-08 → —	NGC101 .CVT GEN RHD +9	—
53601-0D040-C1 note	Lever Sub-assy, Hood Lock Control 2022-08 → —	NGC101 RHD 5F (H,L);NGC101 +12	—
53630 — Cable Assy, Hood Lock Control
53630-BZ380	Cable Assy, Hood Lock Control 2022-08 → —	NGC10#,NYC100 RHD THP	—
53630-BZ390	Cable Assy, Hood Lock Control 2022-08 → —	NGC101,102,NYC100 LHD	—
53630-BZ400	Cable Assy, Hood Lock Control 2023-03 → —	NGC102 MA	—
53630A — Grommet(FOR HOOD LOCK CONTROL CABLE)
85373-BZ180	Grommet(FOR HOOD LOCK CONTROL CABLE) 2022-08 → —	NGC10#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
