Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

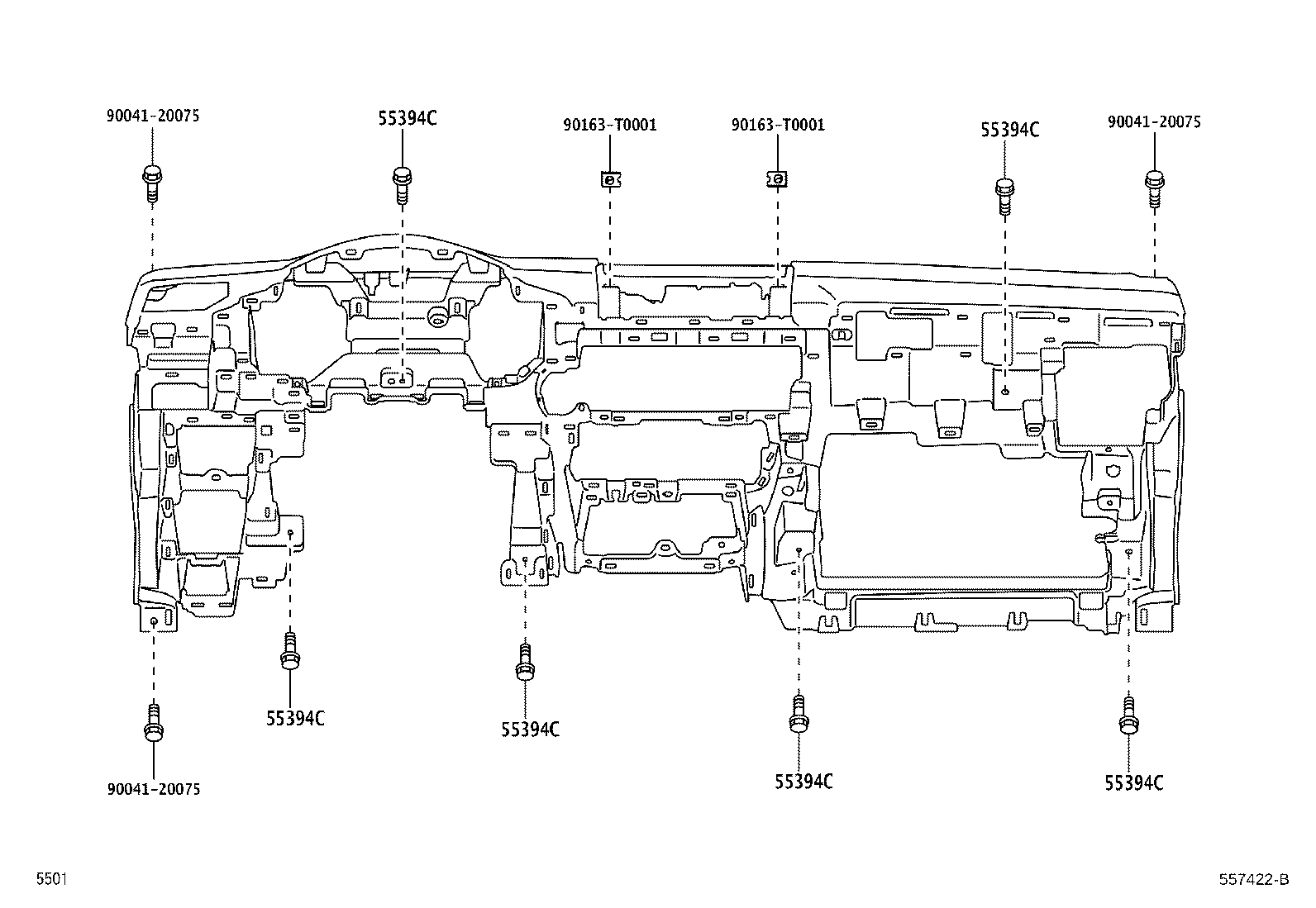

Exploded illustration 557422B 55394C — BOLT, INSTRUMENT PANEL (1 parts) 55394C — BOLT, INSTRUMENT PANEL (1 parts) 55394C — BOLT, INSTRUMENT PANEL (1 parts) 55394C — BOLT, INSTRUMENT PANEL (1 parts) 55394C — BOLT, INSTRUMENT PANEL (1 parts) 55394C — BOLT, INSTRUMENT PANEL (1 parts) 90163T0001 — not listed in this catalogue 90163T0001 — not listed in this catalogue 9004120075 — not listed in this catalogue 9004120075 — not listed in this catalogue 9004120075 — not listed in this catalogue
557422B · 6 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1 parts on this figure
Part number Description Fitment Price
55394C — Bolt, Instrument Panel
90041-20304 note Bolt, Instrument Panel
2022-08 → —
NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
