Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

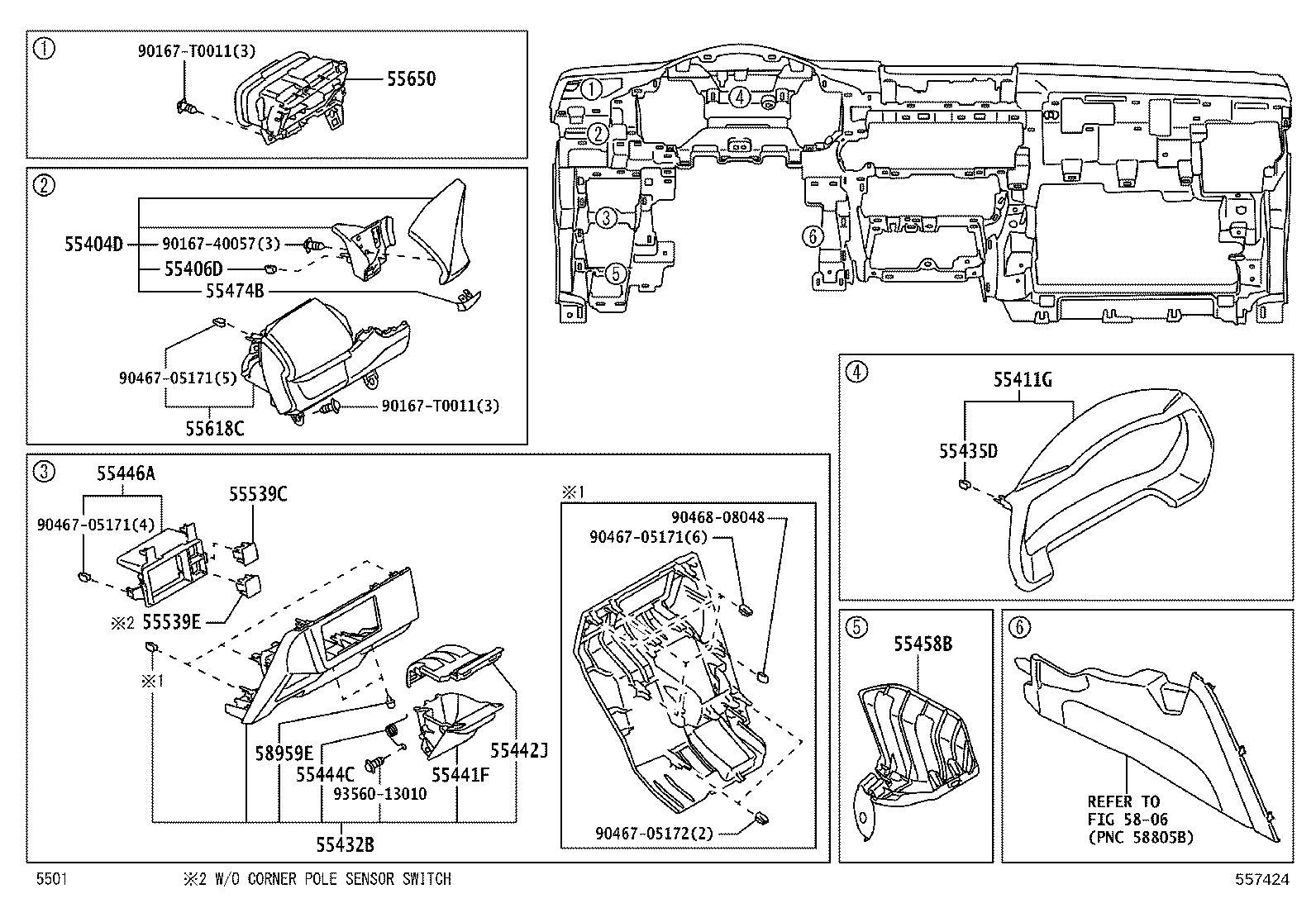

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55404D — Panel Sub-assy, Instrument Cluster Finish | ||||
| 55404-BZ280-D2 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → —
|
NGC100 | — | |
| 55404-BZ350-C1 note |
Panel Sub-assy, Instrument Cluster Finish
2024-10 → —
|
NGC100 | — | |
| 55404-BZ350-C1 note |
Panel Sub-assy, Instrument Cluster Finish
2024-10 → —
|
NGC100 | — | |
| 55404-BZ350-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → 2024-10
ended
|
NGC100 | — | |
| 55404-BZ350-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → 2024-10
ended
|
NGC100 | — | |
| 55404-BZ350-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2024-10 → —
|
NGC100 | — | |
| 55404-BZ350-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2024-10 → —
|
NGC100 | — | |
| 55404-BZ350-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → —
|
NGC101,102 RHD | — | |
| 55404-BZ350-E4 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55404-BZ360-E3 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → —
|
NGC101,102 LHD | — | |
| 55404-BZ360-E4 note |
Panel Sub-assy, Instrument Cluster Finish
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-05171 |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2022-08 → —
|
NGC10# | — | |
| 55411G — Panel, Instrument Cluster Finish, NO.1 | ||||
| 55411-BZ390-C0 note |
Panel, Instrument Cluster Finish, NO.1
2022-08 → —
|
NGC100 | — | |
| 55411-BZ390-C0 note |
Panel, Instrument Cluster Finish, NO.1
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55411-BZ390-C0 note |
Panel, Instrument Cluster Finish, NO.1
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 55411-BZ400-C0 note |
Panel, Instrument Cluster Finish, NO.1
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55411-BZ400-C0 note |
Panel, Instrument Cluster Finish, NO.1
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55432B — Panel, Instrument Panel Finish, Lower | ||||
| 55045-BZ280-C0 note |
Panel, Instrument Panel Finish, Lower
2022-08 → —
|
NGC100 | — | |
| 55045-BZ280-C0 note |
Panel, Instrument Panel Finish, Lower
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55045-BZ280-C0 note |
Panel, Instrument Panel Finish, Lower
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 55045-BZ290-C0 note |
Panel, Instrument Panel Finish, Lower
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55045-BZ290-C0 note |
Panel, Instrument Panel Finish, Lower
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55435D — Clip, Meter Hood Cluster | ||||
| 90467-05172 |
Clip, Meter Hood Cluster
2022-08 → —
|
NGC10# | — | |
| 55441F — Box, Instrument Panel Coin | ||||
| 55441-BZ140-C0 note |
Box, Instrument Panel Coin
2022-08 → —
|
NGC100 | — | |
| 55441-BZ140-C0 note |
Box, Instrument Panel Coin
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55441-BZ140-C0 note |
Box, Instrument Panel Coin
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 55441-BZ150-C0 note |
Box, Instrument Panel Coin
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55441-BZ150-C0 note |
Box, Instrument Panel Coin
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55442J — Bezel, Instrument Panel Coin Box | ||||
| 55442-BZ040 |
Bezel, Instrument Panel Coin Box
2022-08 → —
|
NGC10# RHD | — | |
| 55442-BZ050 |
Bezel, Instrument Panel Coin Box
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 55444C — Spring, Instrument Panel Box | ||||
| 55444-BZ040 |
Spring, Instrument Panel Box
2022-08 → —
|
NGC10# RHD | — | |
| 55444-BZ050 |
Spring, Instrument Panel Box
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 55446A — Base, Switch Hole, NO.1 | ||||
| 55446-BZ230-C0 note |
Base, Switch Hole, NO.1
2022-08 → —
|
NGC100 | — | |
| 55446-BZ230-C0 note |
Base, Switch Hole, NO.1
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55446-BZ230-C0 note |
Base, Switch Hole, NO.1
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 55446-BZ240-C0 note |
Base, Switch Hole, NO.1
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55446-BZ240-C0 note |
Base, Switch Hole, NO.1
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55458B — Cover, Instrument, Lwr | ||||
| 55458-BZ080-C0 note |
Cover, Instrument, Lwr
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55458-BZ080-C0 note |
Cover, Instrument, Lwr
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55474B — Garnish, Instrument Cluster Finish Panel | ||||
| 55474-BZ250-B0 note |
Garnish, Instrument Cluster Finish Panel
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55474-BZ250-B0 note |
Garnish, Instrument Cluster Finish Panel
2022-08 → —
|
NGC102 5F H;NGC100,102 MA,TH;NGC101 +2 | — | |
| 55474-BZ270-B0 note |
Garnish, Instrument Cluster Finish Panel
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55474-BZ270-B0 note |
Garnish, Instrument Cluster Finish Panel
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55539C — Cover, Spare Switch Hole | ||||
| 55539-BZ220-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 55539-BZ220-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55539E — Cover, Spare Switch Hole | ||||
| 55539-BZ220-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101 L) 5F L;NGC101 +9 | — | |
| 55539-BZ220-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +1 | — | |
| 55539-BZ220-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 55618C — Holder, Instrument Panel Cup | ||||
| 55618-BZ240-C1 note |
Holder, Instrument Panel Cup
2022-08 → 2024-02
ended
|
NGC10# RHD | — | |
| 55618-BZ240-C1 note |
Holder, Instrument Panel Cup
2022-08 → 2024-02
ended
|
NGC100 | — | |
| 55618-BZ240-C2 note |
Holder, Instrument Panel Cup
2022-08 → 2024-02
ended
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55618-BZ241-C1 note |
Holder, Instrument Panel Cup
2024-03 → 2025-07
ended
|
NGC100 | — | |
| 55618-BZ241-C1 note |
Holder, Instrument Panel Cup
2024-03 → 2025-07
ended
|
NGC100 | — | |
| 55618-BZ241-C1 note |
Holder, Instrument Panel Cup
2024-03 → —
|
NGC101,102 RHD | — | |
| 55618-BZ241-C2 note |
Holder, Instrument Panel Cup
2024-03 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 55618-BZ250-C1 note |
Holder, Instrument Panel Cup
2022-08 → 2024-02
ended
|
NGC101,102 LHD | — | |
| 55618-BZ250-C2 note |
Holder, Instrument Panel Cup
2022-08 → 2024-02
ended
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55618-BZ251-C1 note |
Holder, Instrument Panel Cup
2024-03 → —
|
NGC101,102 LHD | — | |
| 55618-BZ251-C2 note |
Holder, Instrument Panel Cup
2024-03 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 55618-BZ260-C1 note |
Holder, Instrument Panel Cup
2022-08 → 2023-12
ended
|
NGC100 | — | |
| 55618-BZ261-C1 note |
Holder, Instrument Panel Cup
2024-01 → —
|
NGC100 | — | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-BZ490-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC100 | — | |
| 55650-BZ490-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101 CVT L | — | |
| 55650-BZ490-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 55650-BZ500-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 55650-BZ500-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 55650-BZ500-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC100 | — | |
| 55650-BZ500-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC100 | — | |
| 55650-BZ510-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101,102 M GCC | — | |
| 55650-BZ510-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101,102 LHD L | — | |
| 55650-BZ510-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NYC100 LHD GEN;NGC102 LHD +2 | — | |
| 55650-BZ520-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 55650-BZ520-C0 note |
Register Assy, Instrument Panel, NO.1
2022-08 → —
|
NGC101 5F PHL;NGC102 LHD +6 | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
