Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

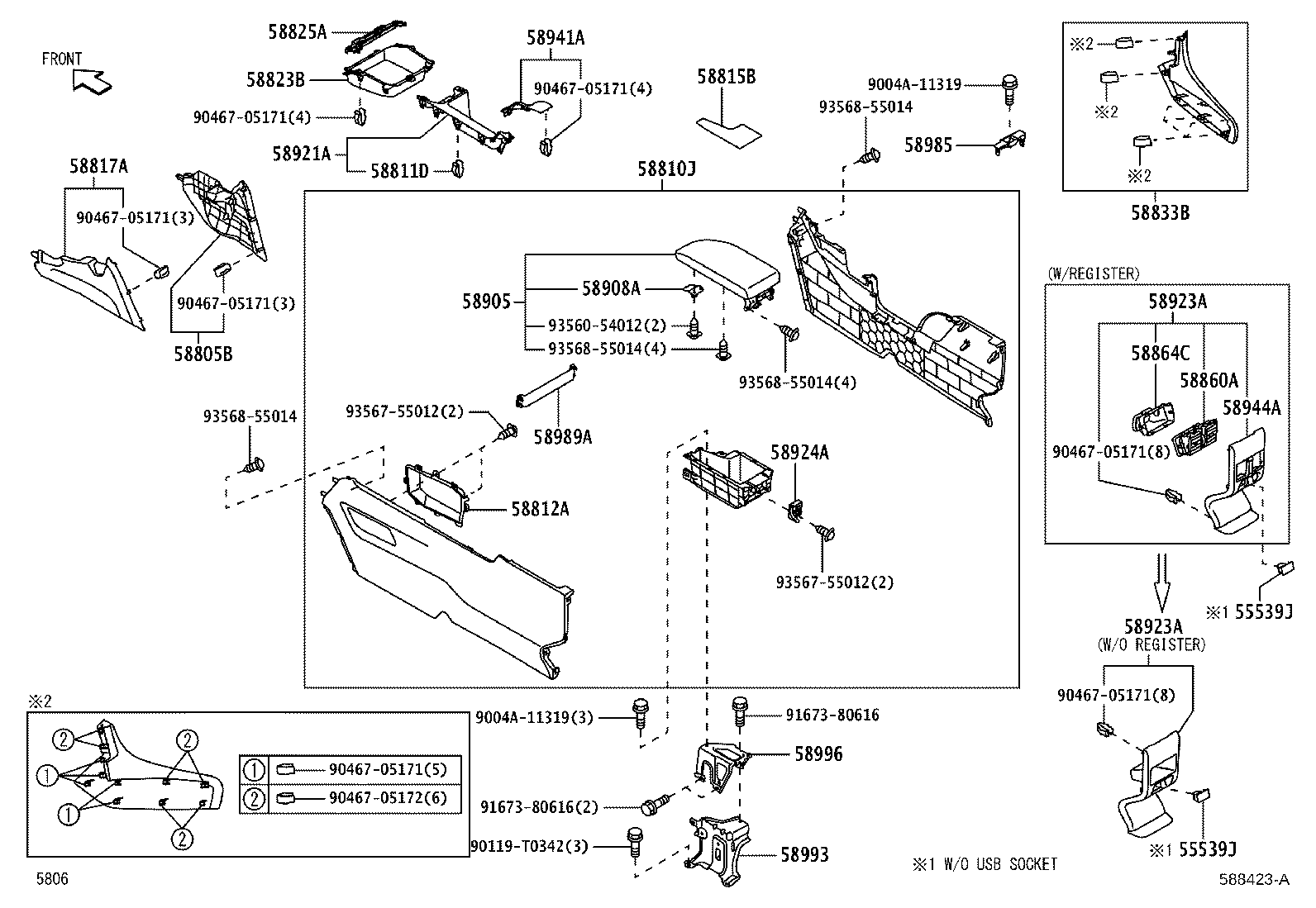

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539J — Cover, Spare Switch Hole | ||||
| 55539-BZ240-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101,102 L | — | |
| 55539-BZ240-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC100 | — | |
| 55539-BZ240-C0 note |
Cover, Spare Switch Hole
2022-08 → —
|
NGC101,102 M GCC | — | |
| 58805B — Panel Sub-assy, Console, Lower | ||||
| 58805-BZ020-C0 note |
Panel Sub-assy, Console, Lower
2023-03 → —
|
NGC102 MA | — | |
| 58805-BZ090-C0 note |
Panel Sub-assy, Console, Lower
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58805-BZ090-C0 note |
Panel Sub-assy, Console, Lower
2022-08 → —
|
NGC102 5F H;NYC100 THP +3 | — | |
| 58805-BZ090-C0 note |
Panel Sub-assy, Console, Lower
2022-08 → —
|
NGC100 | — | |
| 58805-BZ100-C0 note |
Panel Sub-assy, Console, Lower
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 58805-BZ100-C0 note |
Panel Sub-assy, Console, Lower
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 58810J — Box Assy, Console | ||||
| 58810-BZ210-C0 note |
Box Assy, Console
2022-08 → —
|
NGC102 5F H;NGC102 RHD +3 | — | |
| 58810-BZ210-C0 note |
Box Assy, Console
2022-08 → —
|
NGC100 | — | |
| 58810-BZ210-C1 note |
Box Assy, Console
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58810-BZ230-C0 note |
Box Assy, Console
2022-08 → —
|
NGC100,101 RHD M | — | |
| 58810-BZ230-C0 note |
Box Assy, Console
2022-08 → —
|
NGC100 | — | |
| 58810-BZ230-C1 note |
Box Assy, Console
2022-08 → —
|
NGC101 RHD M | — | |
| 58810-BZ250-C0 note |
Box Assy, Console
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58810-BZ250-C0 note |
Box Assy, Console
2022-08 → —
|
NGC101,102 RHD CVT H +1 | — | |
| 58810-BZ250-C1 note |
Box Assy, Console
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 58810-BZ310-C0 note |
Box Assy, Console
2022-08 → —
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 58810-BZ310-C0 note |
Box Assy, Console
2022-08 → —
|
NGC102 LHD M GEN | — | |
| 58810-BZ310-C1 note |
Box Assy, Console
2022-08 → —
|
NGC101,102 M GCC | — | |
| 58810-BZ330-C0 note |
Box Assy, Console
2022-08 → —
|
NGC102 PHL;NGC102 5F M;NGC101 +3 | — | |
| 58810-BZ330-C0 note |
Box Assy, Console
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58810-BZ330-C1 note |
Box Assy, Console
2022-08 → —
|
NGC101 5F M GEN | — | |
| 58810-BZ350-C0 note |
Box Assy, Console
2022-08 → —
|
NGC101 LHD H;NGC102 H +5 | — | |
| 58810-BZ350-C0 note |
Box Assy, Console
2022-08 → —
|
NGC101 M GCC | — | |
| 58810-BZ350-C1 note |
Box Assy, Console
2022-08 → —
|
NGC101 LHD H;NGC102 H +1 | — | |
| 58810-BZ350-C1 note |
Box Assy, Console
2022-08 → —
|
NGC101 M GCC | — | |
| 58810-BZ360-C0 note |
Box Assy, Console
2022-08 → 2023-08
ended
|
NGC100 | — | |
| 58810-BZ361-C0 note |
Box Assy, Console
2023-08 → —
|
NGC100 | — | |
| 58810-BZ480-C0 note |
Box Assy, Console
2023-03 → 2023-07
ended
|
NGC102 H MA | — | |
| 58810-BZ480-C0 note |
Box Assy, Console
2022-08 → 2023-07
ended
|
NGC100 | — | |
| 58810-BZ481-C0 note |
Box Assy, Console
2023-08 → —
|
NGC102 H MA | — | |
| 58810-BZ481-C0 note |
Box Assy, Console
2023-08 → —
|
NGC100 | — | |
| 58810-BZ481-C1 note |
Box Assy, Console
2023-08 → —
|
NGC100 | — | |
| 58811D — Clip(FOR CONSOLE BOX) | ||||
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC101 M GCC | — | |
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC100 | — | |
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC100 | — | |
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 90467-05171 note |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 58812A — Box, Console, Lower | ||||
| 58812-BZ070-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58812-BZ070-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC102 5F H;NGC101 RHD +3 | — | |
| 58812-BZ070-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC100 | — | |
| 58812-BZ080-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 58812-BZ080-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 58812-BZ090-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC100 | — | |
| 58812-BZ090-C0 note |
Box, Console, Lower
2023-03 → —
|
NGC102 H MA | — | |
| 58812-BZ090-C0 note |
Box, Console, Lower
2022-08 → —
|
NGC100 | — | |
| 58815B — Carpet, Console Box | ||||
| 58815-BZ130 |
Carpet, Console Box
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 58815-BZ130 note |
Carpet, Console Box
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58815-BZ130 note |
Carpet, Console Box
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 58815-BZ140 |
Carpet, Console Box
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 58815-BZ140 note |
Carpet, Console Box
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58815-BZ140 note |
Carpet, Console Box
2022-08 → —
|
NGC100 | — | |
| 58815-BZ140 note |
Carpet, Console Box
2022-08 → —
|
NGC101 M GCC | — | |
| 58817A — Insert, Console Box, Front NO.2 | ||||
| 58817-BZ020-C0 note |
Insert, Console Box, Front NO.2
2023-03 → —
|
NGC102 MA | — | |
| 58817-BZ090-C0 note |
Insert, Console Box, Front NO.2
2022-08 → —
|
NGC100 | — | |
| 58817-BZ090-C0 note |
Insert, Console Box, Front NO.2
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58817-BZ090-C0 note |
Insert, Console Box, Front NO.2
2022-08 → —
|
NGC102 5F H;NYC100 THP +3 | — | |
| 58817-BZ100-C0 note |
Insert, Console Box, Front NO.2
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 58817-BZ100-C0 note |
Insert, Console Box, Front NO.2
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 58823B — Box, Console Compartment | ||||
| 58823-BZ030-C0 note |
Box, Console Compartment
2022-08 → —
|
NGC100 | — | |
| 58823-BZ030-C0 note |
Box, Console Compartment
2022-08 → —
|
NGC102 MA;NGC102 5F H;NGC101 +2 | — | |
| 58823-BZ030-C0 note |
Box, Console Compartment
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58823-BZ040-C0 note |
Box, Console Compartment
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 58823-BZ040-C0 note |
Box, Console Compartment
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 58825A — Pocket, Console Box | ||||
| 58825-BZ070-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC100 | — | |
| 58825-BZ070-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58825-BZ070-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC102 M MA;NGC102 5F +3 | — | |
| 58825-BZ090-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 58825-BZ090-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 58825-BZ100-C0 note |
Pocket, Console Box
2022-08 → —
|
NGC100 | — | |
| 58825-BZ100-C0 note |
Pocket, Console Box
2023-03 → —
|
NGC102 H MA | — | |
| 58833B — Garnish, Console Upper Panel, NO.1 | ||||
| 58833-BZ240-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC102 5F H;NGC101 CVT +1 | — | |
| 58833-BZ240-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC100 | — | |
| 58833-BZ250-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → 2025-07
ended
|
NGC100 | — | |
| 58833-BZ250-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → 2025-07
ended
|
NGC100 | — | |
| 58833-BZ250-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101,102 RHD CVT (H,M) | — | |
| 58833-BZ250-E1 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 58833-BZ260-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 58833-BZ260-E1 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101,102 M GCC | — | |
| 58833-BZ270-E0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101,102 H GCC;NGC101,102 LHD +2 | — | |
| 58833-BZ270-E1 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 58833-BZ310-D0 note |
Garnish, Console Upper Panel, NO.1
2022-08 → —
|
NGC100 | — | |
| 58860A — Register Assy, Console Box | ||||
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC101,102 GCC | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC100 | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC100 | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC102 LHD H GEN | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC102 RHD CVT H +1 | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC102 RHD CVT H +1 | — | |
| 58860-BZ010-C0 note |
Register Assy, Console Box
2022-08 → 2023-10
ended
|
NGC101,102 CVT PHL | — | |
| 58860-BZ020-C0 note |
Register Assy, Console Box
2023-03 → 2023-10
ended
|
NGC102 MA | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NGC100 | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NGC100 | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NYC100 G TH;NGC101,102 CVT +1 | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NGC102 LHD H GEN | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NGC101,102 GCC | — | |
| 58860-BZ090-C0 note |
Register Assy, Console Box
2023-10 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58860-BZ100-C0 note |
Register Assy, Console Box
2024-03 → 2025-10
ended
|
NGC102 MA | — | |
| 58864C — Duct, Console Box, NO.4 | ||||
| 58864-BZ010 |
Duct, Console Box, NO.4
2022-08 → —
|
NYC100 LHD GEN;NGC101,102,NYC100 CVT +1 | — | |
| 58864-BZ010 note |
Duct, Console Box, NO.4
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 58864-BZ010 note |
Duct, Console Box, NO.4
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 58864-BZ010 note |
Duct, Console Box, NO.4
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58864-BZ010 note |
Duct, Console Box, NO.4
2022-08 → —
|
NGC100 | — | |
| 58864-BZ010 note |
Duct, Console Box, NO.4
2022-08 → —
|
NGC100 | — | |
| 58864-BZ020 |
Duct, Console Box, NO.4
2023-03 → 2023-10
ended
|
NGC102 MA | — | |
| 58864-BZ020 |
Duct, Console Box, NO.4
2024-03 → —
|
NGC102 MA | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-BZ090-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC102 LHD M GEN | — | |
| 58905-BZ090-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC100 | — | |
| 58905-BZ090-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101 ,MA) L;NGC102 CVT +8 | — | |
| 58905-BZ090-E1 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101,102 M GCC;NGC102 RHD +2 | — | |
| 58905-BZ100-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC102 PHL;NGC102 5F M;NGC100,101 +2 | — | |
| 58905-BZ100-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58905-BZ100-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC100 | — | |
| 58905-BZ100-E1 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101 RHD M;NGC101 5F +2 | — | |
| 58905-BZ110-C0 note |
Door Sub-assy, Console Compartment
2023-08 → —
|
NGC100 | — | |
| 58905-BZ110-D0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC100 | — | |
| 58905-BZ110-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 58905-BZ110-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58905-BZ110-E0 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101 M GCC | — | |
| 58905-BZ110-E0 note |
Door Sub-assy, Console Compartment
2022-08 → 2023-08
ended
|
NGC100 | — | |
| 58905-BZ110-E0 note |
Door Sub-assy, Console Compartment
2023-08 → —
|
NGC100 | — | |
| 58905-BZ110-E1 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101 LHD H;NGC102 H +5 | — | |
| 58905-BZ110-E1 note |
Door Sub-assy, Console Compartment
2022-08 → —
|
NGC101 M GCC | — | |
| 58908A — Lock Sub-assy, Console Compartment Door | ||||
| 58908-BZ030 |
Lock Sub-assy, Console Compartment Door
2022-08 → —
|
NGC10# | — | |
| 58921A — Panel, Rear Console, Upper | ||||
| 58921-BZ160-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC100 | — | |
| 58921-BZ160-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC101,102 RHD M GEN | — | |
| 58921-BZ160-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 M MA;NGC102 5F +3 | — | |
| 58921-BZ160-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC100 | — | |
| 58921-BZ170-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 58921-BZ170-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 H MA;NGC101 RHD +1 | — | |
| 58921-BZ170-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58921-BZ170-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC100 | — | |
| 58921-BZ170-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC100 | — | |
| 58921-BZ180-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC101,102 M GCC;NGC101 5F +2 | — | |
| 58921-BZ180-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58921-BZ180-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 58921-BZ180-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 HD PHL;NGC101 CVT +11 | — | |
| 58921-BZ190-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC101 LHD H;NGC102 H +1 | — | |
| 58921-BZ190-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC102 LHD CVT (H,M) +1 | — | |
| 58921-BZ190-C0 note |
Panel, Rear Console, Upper
2022-08 → —
|
NGC101 M GCC | — | |
| 58923A — Panel, Console Rear End | ||||
| 58923-BZ070-C0 note |
Panel, Console Rear End
2022-08 → —
|
NGC102 M GCC | — | |
| 58923-BZ070-C0 note |
Panel, Console Rear End
2022-08 → —
|
NGC100;NGC101 ;NGC101 5F RHD +14 | — | |
| 58923-BZ070-C0 note |
Panel, Console Rear End
2022-08 → —
|
NGC101 RHD M;NGC101 5F +8 | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC101,102 CVT PHL | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC100 | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC102 LHD H GEN | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC102 RHD CVT H +1 | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC102 RHD CVT H +1 | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC101,102 GCC | — | |
| 58923-BZ080-C1 note |
Panel, Console Rear End
2022-08 → 2023-10
ended
|
NGC100 | — | |
| 58923-BZ110-C0 note |
Panel, Console Rear End
2023-03 → 2023-10
ended
|
NGC102 MA | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NGC101,102 GCC | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NYC100 G TH;NGC101,102 CVT +1 | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NGC102 LHD H GEN | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NGC100 | — | |
| 58923-BZ170-C0 note |
Panel, Console Rear End
2023-10 → —
|
NGC100 | — | |
| 58923-BZ180-C0 note |
Panel, Console Rear End
2024-03 → 2025-10
ended
|
NGC102 MA | — | |
| 58924A — Panel, Console Rear End, NO.2 | ||||
| 58924-BZ050 |
Panel, Console Rear End, NO.2
2022-08 → 2023-04
ended
|
NGC102 H MA | — | |
| 58924-BZ050 |
Panel, Console Rear End, NO.2
2023-08 → —
|
NGC102 H MA | — | |
| 58924-BZ050 |
Panel, Console Rear End, NO.2
2022-08 → —
|
NGC100,101;NGC102 L,M;NGC102 THP H | — | |
| 58941A — Cover, Parking Brake Hole | ||||
| 58941-BZ010-C0 note |
Cover, Parking Brake Hole
2022-08 → —
|
NGC101,102 M GCC;NGC101 5F +5 | — | |
| 58941-BZ010-C0 note |
Cover, Parking Brake Hole
2022-08 → —
|
NGC101 ,TH);NGC101 L;NGC102 LHD +11 | — | |
| 58941-BZ010-C0 note |
Cover, Parking Brake Hole
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 58941-BZ010-C0 note |
Cover, Parking Brake Hole
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58944A — Cover, Console, Rear | ||||
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NGC100 | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NGC101,102 GCC | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NYC100 G TH;NGC101,102 CVT +1 | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NYC100 G GEN;NGC102 RHD +3 | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58944-BZ080-C0 note |
Cover, Console, Rear
2022-08 → —
|
NGC100 | — | |
| 58944-BZ110-C0 note |
Cover, Console, Rear
2024-03 → 2025-10
ended
|
NGC102 MA | — | |
| 58944-BZ110-C0 note |
Cover, Console, Rear
2023-03 → 2023-10
ended
|
NGC102 MA | — | |
| 58985 — Retainer, Console Box | ||||
| 58985-BZ070 |
Retainer, Console Box
2022-08 → —
|
NGC10# | — | |
| 58989A — Retainer, Console Box | ||||
| 58985-BZ100 |
Retainer, Console Box
2022-08 → 2023-04
ended
|
NGC102 H MA | — | |
| 58985-BZ100 |
Retainer, Console Box
2022-08 → —
|
NGC100,101;NGC102 L,M;NGC102 THP H | — | |
| 58985-BZ100 |
Retainer, Console Box
2023-08 → —
|
NGC102 H MA | — | |
| 58993 — Bracket, Console Box Mounting, Rear | ||||
| 58993-BZ080 |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 58993-BZ080 note |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 58993-BZ080 note |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 58993-BZ090 |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 58993-BZ090 note |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 58993-BZ090 note |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC100 | — | |
| 58993-BZ090 note |
Bracket, Console Box Mounting, Rear
2022-08 → —
|
NGC101 M GCC | — | |
| 58996 — Bracket, Console Box Mounting, NO.1 | ||||
| 58996-BZ040 |
Bracket, Console Box Mounting, NO.1
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 58996-BZ040 note |
Bracket, Console Box Mounting, NO.1
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 58996-BZ040 note |
Bracket, Console Box Mounting, NO.1
2022-08 → —
|
NGC102 LHD H GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
