Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

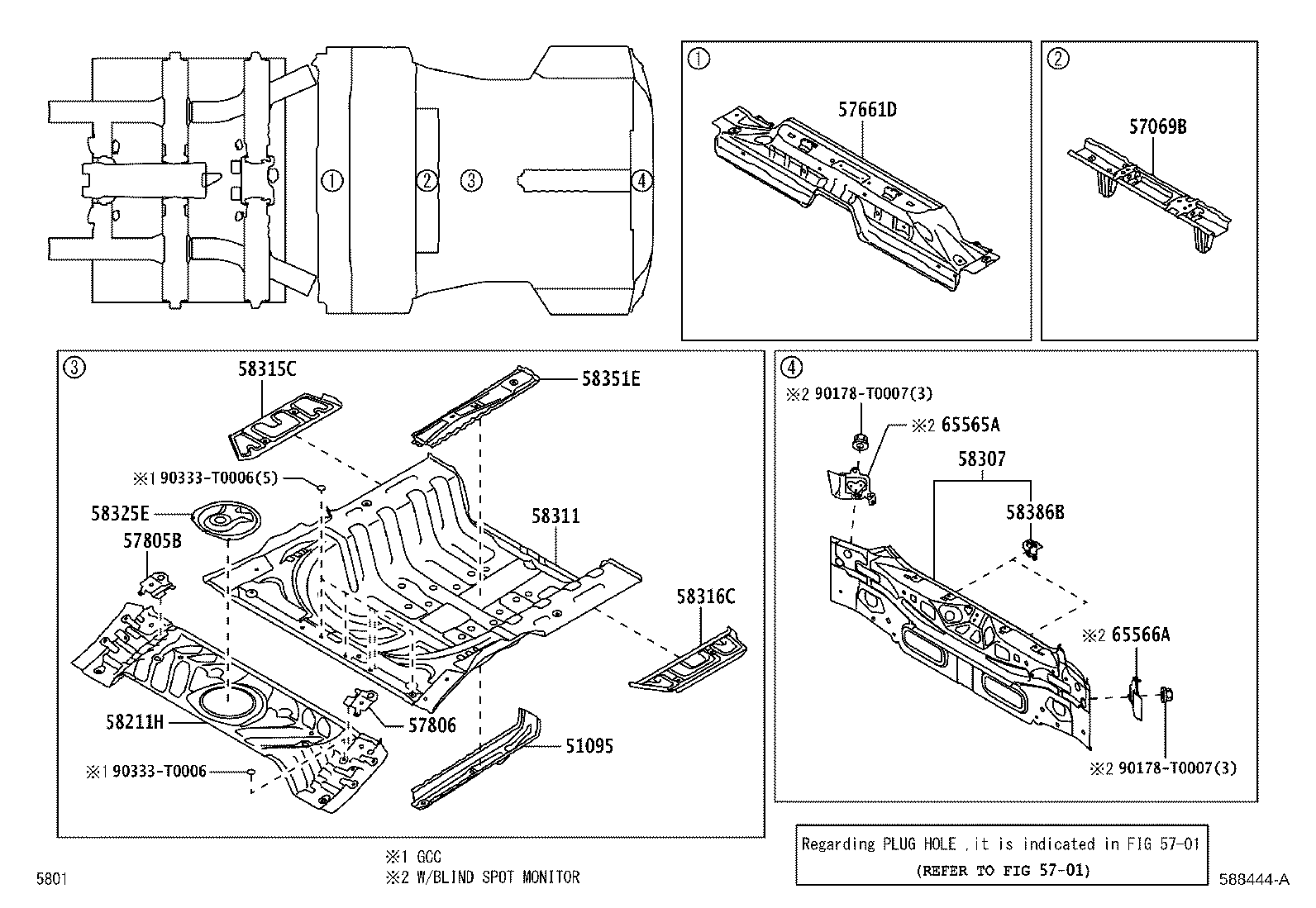

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51095 — Hook, Transport, Rear | ||||
| 51095-BZ110 |
Hook, Transport, Rear
2022-08 → —
|
NGC10# | — | |
| 57069B — Member Sub-assy, Rear Floor Cross, Center | ||||
| 57069-BZ170 |
Member Sub-assy, Rear Floor Cross, Center
2022-08 → —
|
NGC10# | — | |
| 57661D — Member, Rear Floor Cross, Front | ||||
| 57068-BZ150 |
Member, Rear Floor Cross, Front
2022-08 → —
|
NGC10# | — | |
| 57805B — Reinforcement Sub-assy, Belt Anchor, RH | ||||
| 57815-BZ140 |
Reinforcement Sub-assy, Belt Anchor, RH
2022-08 → —
|
NGC10# | — | |
| 57806 — Reinforcement Sub-assy, Belt Anchor, LH | ||||
| 57816-BZ050 |
Reinforcement Sub-assy, Belt Anchor, LH
2022-08 → —
|
NGC10# | — | |
| 58211H — Pan, Center Floor | ||||
| 58211-BZ090 |
Pan, Center Floor
2022-08 → —
|
NGC10# | — | |
| 58307 — Panel Sub-assy, Body Lower Back | ||||
| 58307-BZ270 |
Panel Sub-assy, Body Lower Back
2022-08 → —
|
NGC10# GEN,MA,PHL,TH | — | |
| 58307-BZ280 |
Panel Sub-assy, Body Lower Back
2022-08 → —
|
NGC101,102 GCC | — | |
| 58311 — Pan, Rear Floor | ||||
| 58311-BZ470 |
Pan, Rear Floor
2022-08 → —
|
NGC10# | — | |
| 58315C — Extension, Rear Floor Side Panel, RH | ||||
| 58315-BZ110 |
Extension, Rear Floor Side Panel, RH
2022-08 → —
|
NGC10# | — | |
| 58316C — Extension, Rear Floor Side Panel, LH | ||||
| 58316-BZ070 |
Extension, Rear Floor Side Panel, LH
2022-08 → —
|
NGC10# | — | |
| 58325E — Cover, Rear Floor Service Hole | ||||
| 58325-BZ100 |
Cover, Rear Floor Service Hole
2022-08 → —
|
NGC10# | — | |
| 58351E — Bracket, Spare Wheel Clamp | ||||
| 58351-BZ120 |
Bracket, Spare Wheel Clamp
2022-08 → —
|
NGC10# | — | |
| 58386B — Bracket, Rear Bumper Cover, NO.2 | ||||
| 58386-0D170 |
Bracket, Rear Bumper Cover, NO.2
2022-08 → —
|
NGC10# | — | |
| 65565A — Patch, Side Panel Rear End, RH | ||||
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC101 L;NGC101 LHD M +4 | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC100 | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT H +1 | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC100 | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (H,M) +1 | — | |
| 65565-BZ120 note |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 65565-BZ120 |
Patch, Side Panel Rear End, RH
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 65566A — Patch, Side Panel Rear End, LH | ||||
| 65566-BZ110 |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT H +1 | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (H,M) +1 | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC100 | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC100 | — | |
| 65566-BZ110 note |
Patch, Side Panel Rear End, LH
2022-08 → —
|
NGC101 L;NGC101 LHD M +4 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
