Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09

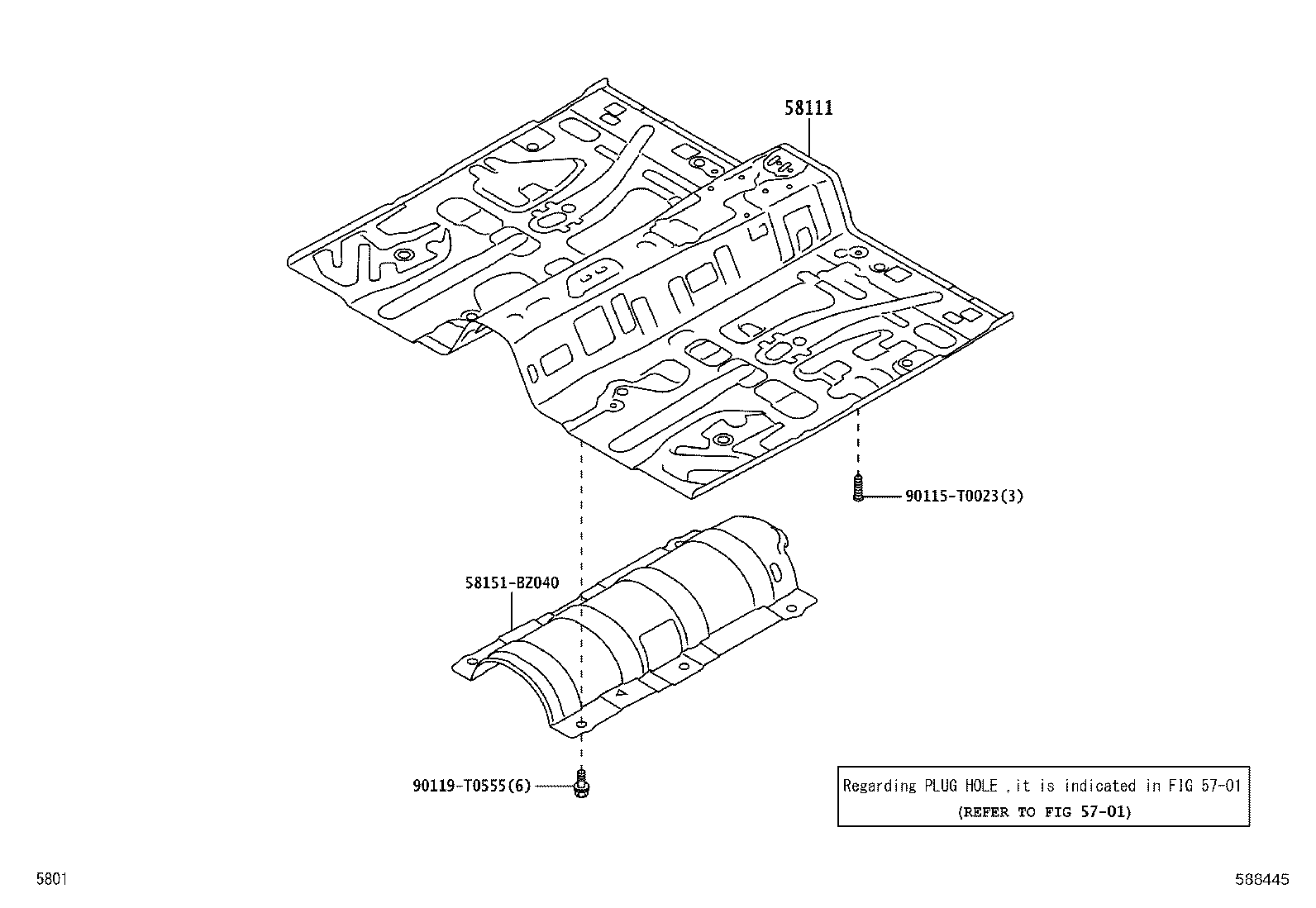

Exploded illustration 588445 5701 — not listed in this catalogue 90119T0555 — not listed in this catalogue 58151BZ040 — not listed in this catalogue 58111 — PAN, FRONT FLOOR (7 parts) 90115T0023 — not listed in this catalogue
588445 · 1 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
7 parts on this figure
Part number Description Fitment Price
58111 — Pan, Front Floor
58111-BZ901 Pan, Front Floor
2022-08 → —
M NGC102 (GCC,MA) 5F;NGC102 +7 —
58111-BZ901 note Pan, Front Floor
2022-08 → —
NGC102 LHD CVT M +1 —
58111-BZ901 note Pan, Front Floor
2022-08 → —
NGC102 LHD H GEN —
58111-BZ902 Pan, Front Floor
2022-08 → —
NGC102 LHD CVT M +4 —
58111-BZ902 note Pan, Front Floor
2022-08 → —
NGC102 RHD M GEN —
58111-BZ902 note Pan, Front Floor
2022-08 → —
NGC100 —
58111-BZ902 note Pan, Front Floor
2022-08 → —
NGC101 M GCC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
