Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

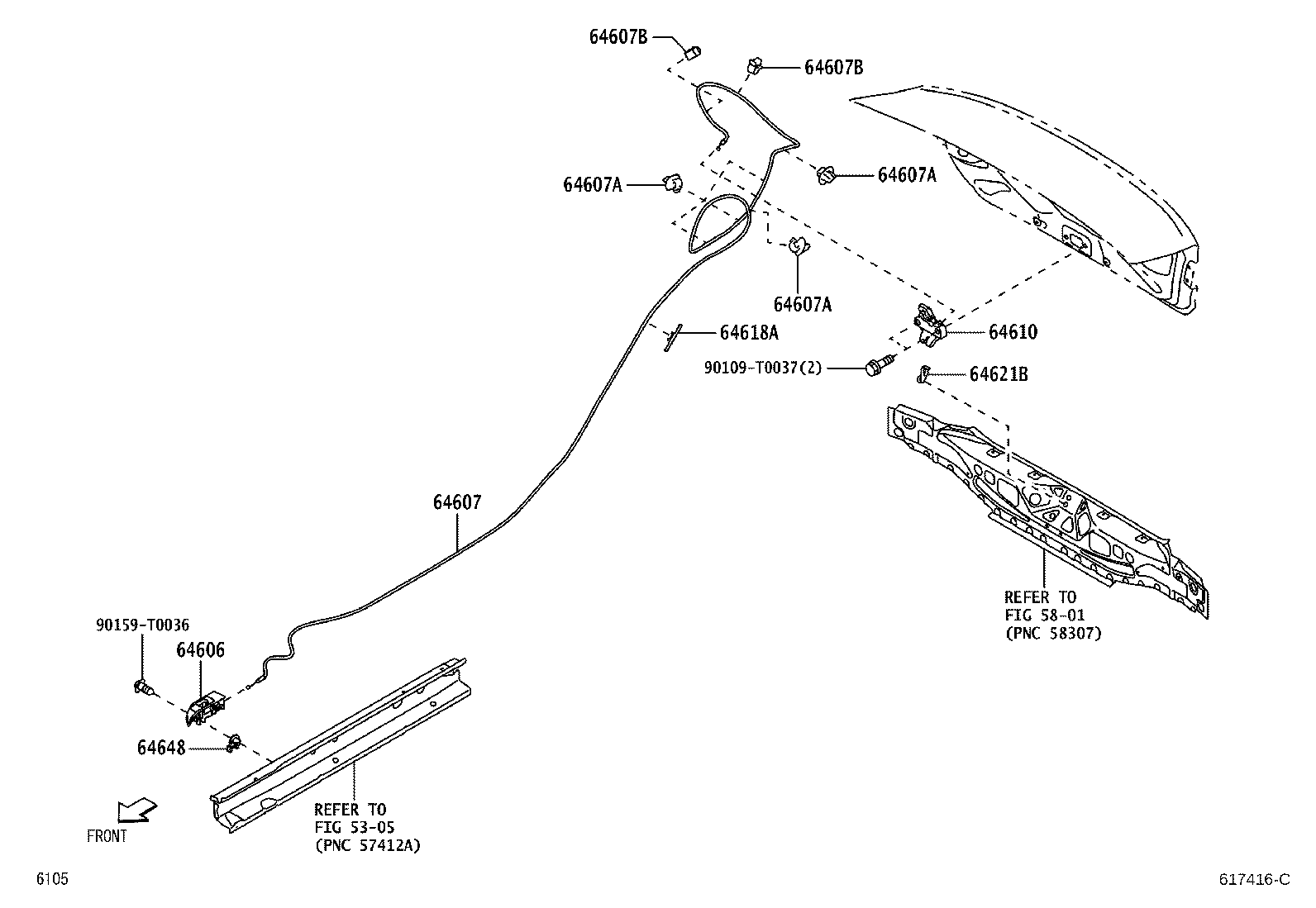

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64606 — Lever Sub-assy, Luggage Door Lock Open | ||||
| 64606-0D130 |
Lever Sub-assy, Luggage Door Lock Open
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 64606-0D140 |
Lever Sub-assy, Luggage Door Lock Open
2022-08 → —
|
NGC10# RHD | — | |
| 64607 — Cable Sub-assy, Luggage Door Lock Control | ||||
| 64607-BZ100 |
Cable Sub-assy, Luggage Door Lock Control
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 64607-BZ120 |
Cable Sub-assy, Luggage Door Lock Control
2022-08 → —
|
NGC10#,NYC100 RHD THP | — | |
| 64607-BZ130 |
Cable Sub-assy, Luggage Door Lock Control
2023-03 → —
|
NGC102 MA | — | |
| 64607A — Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90469-T0003 |
Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 90469-T0003 |
Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
2022-08 → —
|
NGC10# RHD | — | |
| 64607B — Clamp, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-T1001 |
Clamp, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
2022-08 → —
|
NGC10# | — | |
| 64610 — Lock Assy, Luggage Compartment Door | ||||
| 64600-02080 |
Lock Assy, Luggage Compartment Door
2024-03 → —
|
NGC10# | — | |
| 64600-0D040 |
Lock Assy, Luggage Compartment Door
2022-08 → 2024-02
ended
|
NGC10# | — | |
| 64618A — Clamp, Luggage Lock Control Cable | ||||
| 82711-BZ220 |
Clamp, Luggage Lock Control Cable
2022-08 → 2023-05
ended
|
NGC10# | — | |
| 82711-BZ460 |
Clamp, Luggage Lock Control Cable
2023-06 → —
|
NGC10# | — | |
| 64621B — Striker, Luggage Compartment Door Lock | ||||
| 64621-06080 |
Striker, Luggage Compartment Door Lock
2022-08 → —
|
NGC10# | — | |
| 64648 — Grommet, Luggage Door Lock Opener | ||||
| 64648-0D020 |
Grommet, Luggage Door Lock Opener
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
