Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

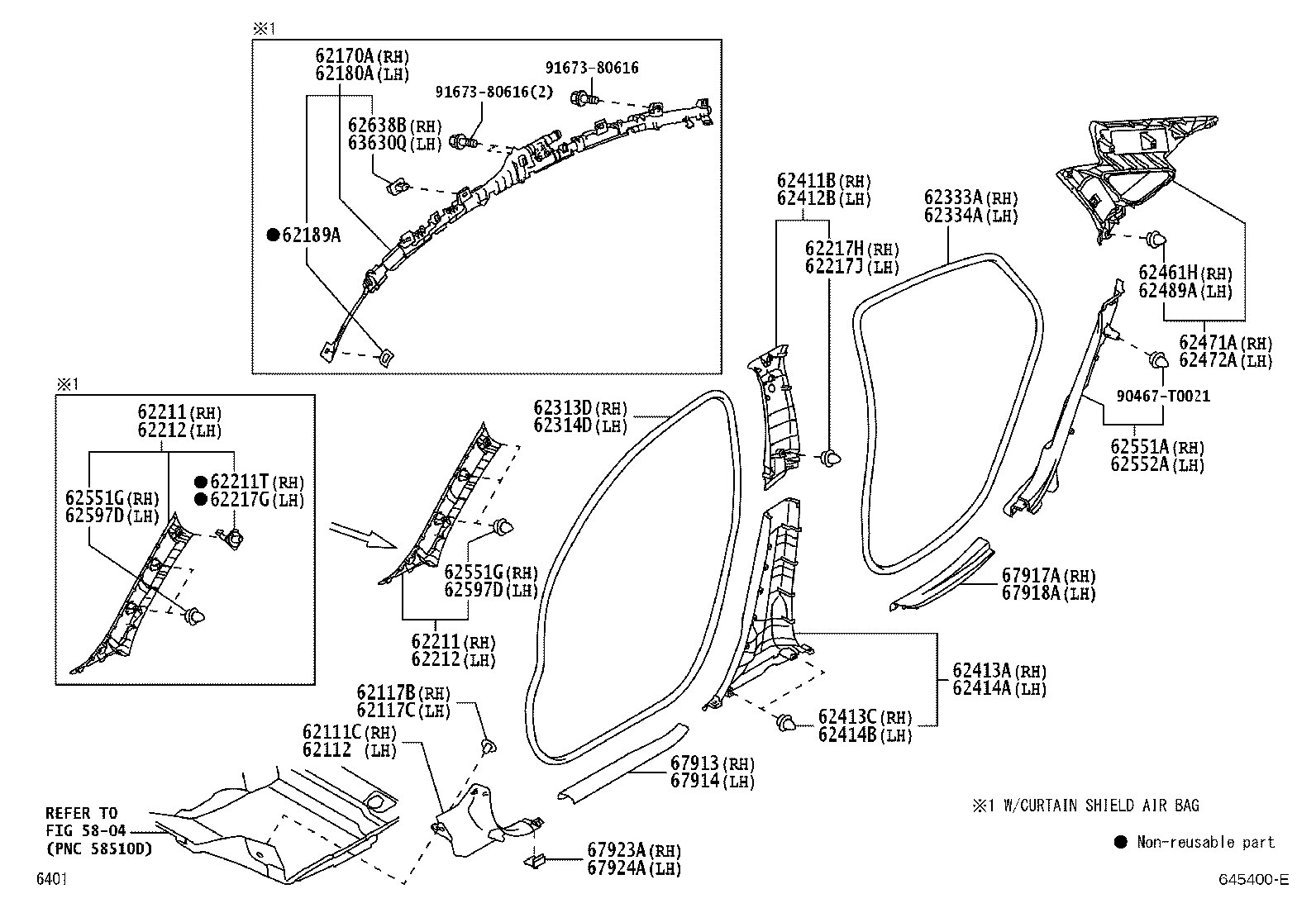

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62111C — Board, Cowl Side Trim, RH | ||||
| 62111-BZ370-C0 note |
Board, Cowl Side Trim, RH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 62111-BZ370-C0 note |
Board, Cowl Side Trim, RH
2022-08 → —
|
NGC100 | — | |
| 62111-BZ370-C0 note |
Board, Cowl Side Trim, RH
2022-08 → —
|
NGC102 5F H;NYC100 THP +3 | — | |
| 62111-BZ380-C0 note |
Board, Cowl Side Trim, RH
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 62111-BZ380-C0 note |
Board, Cowl Side Trim, RH
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 62111-BZ430-C0 note |
Board, Cowl Side Trim, RH
2023-03 → —
|
NGC102 MA | — | |
| 62112 — Board, Cowl Side Trim, LH | ||||
| 62112-BZ370-C0 note |
Board, Cowl Side Trim, LH
2022-08 → —
|
NGC100 | — | |
| 62112-BZ370-C0 note |
Board, Cowl Side Trim, LH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 62112-BZ370-C0 note |
Board, Cowl Side Trim, LH
2022-08 → —
|
NGC102 5F H;NYC100 THP +3 | — | |
| 62112-BZ380-C0 note |
Board, Cowl Side Trim, LH
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 62112-BZ380-C0 note |
Board, Cowl Side Trim, LH
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 62112-BZ430-C0 note |
Board, Cowl Side Trim, LH
2023-03 → —
|
NGC102 MA | — | |
| 62117B — Clip, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46131-C1 note |
Clip, NO.1(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC100 | — | |
| 9004A-46131-C1 note |
Clip, NO.1(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 9004A-46131-C1 note |
Clip, NO.1(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 62117C — Clip, NO.2(FOR COWL SIDE TRIM) | ||||
| 9004A-46131-C1 note |
Clip, NO.2(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 9004A-46131-C1 note |
Clip, NO.2(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 9004A-46131-C1 note |
Clip, NO.2(FOR COWL SIDE TRIM)
2022-08 → —
|
NGC100 | — | |
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-BZ090 |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC101 N,PHL) H,L;NGC102 H +7 | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC101 CVT L | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62170-BZ090 note |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGC101 RHD H | — | |
| 62170-BZ130 |
Airbag Assy, Curtain Shield, RH
2023-03 → —
|
NGC102 MA | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC101 RHD H | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC101 CVT L | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62180-BZ090 |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC101 N,PHL) H,L;NGC102 H +7 | — | |
| 62180-BZ090 note |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62180-BZ130 |
Airbag Assy, Curtain Shield, LH
2023-03 → —
|
NGC102 MA | — | |
| 62189A — Spacer, Curtain Shield Airbag Clip | ||||
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC101 RHD H | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC101 CVT L | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62189-42010 |
Spacer, Curtain Shield Airbag Clip
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC100 | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 H,L;NGC102 MA,PHL;NGC102 H +6 | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62211-BZ360-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62211-BZ360-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62211-BZ360-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62211-BZ360-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62211-BZ360-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 62211-BZ360-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62211-BZ370-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 62211-BZ370-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 CVT L | — | |
| 62211-BZ370-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62211-BZ370-B0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 RHD H | — | |
| 62211-BZ370-E0 note |
Garnish, Front Pillar, RH
2022-08 → —
|
NGC101 RHD M;NGC101,102 M +4 | — | |
| 62211-BZ500-B0 note |
Garnish, Front Pillar, RH
2022-08 → 2024-03
ended
|
NGC100 | — | |
| 62211-BZ500-B0 note |
Garnish, Front Pillar, RH
2024-03 → —
|
NGC100 | — | |
| 62211T — Clip(FOR FRONT PILLAR GARNISH) | ||||
| 62217-52120 note |
Clip(FOR FRONT PILLAR GARNISH)
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62217-52120 note |
Clip(FOR FRONT PILLAR GARNISH)
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62217-52120 note |
Clip(FOR FRONT PILLAR GARNISH)
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62217-52120 note |
Clip(FOR FRONT PILLAR GARNISH)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62217-52120 |
Clip(FOR FRONT PILLAR GARNISH)
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC100 | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 H,L;NGC102 MA,PHL;NGC102 H +6 | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62212-BZ360-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62212-BZ360-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62212-BZ360-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62212-BZ360-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62212-BZ360-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 62212-BZ360-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62212-BZ370-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 62212-BZ370-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 CVT L | — | |
| 62212-BZ370-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62212-BZ370-B0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 RHD H | — | |
| 62212-BZ370-E0 note |
Garnish, Front Pillar, LH
2022-08 → —
|
NGC101 RHD M;NGC101,102 M +4 | — | |
| 62212-BZ510-B0 note |
Garnish, Front Pillar, LH
2022-08 → 2024-03
ended
|
NGC100 | — | |
| 62212-BZ510-B0 note |
Garnish, Front Pillar, LH
2024-03 → —
|
NGC100 | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-52120 |
Clip, Front Pillar Garnish
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 62217-52120 note |
Clip, Front Pillar Garnish
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62217-52120 note |
Clip, Front Pillar Garnish
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62217-52120 note |
Clip, Front Pillar Garnish
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62217-52120 note |
Clip, Front Pillar Garnish
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62217H — Clip, Center Piller Garnish | ||||
| 90467-T0021 |
Clip, Center Piller Garnish
2022-08 → —
|
NGC10# | — | |
| 62217J — Clip, Center Piller Garnish | ||||
| 90467-T0021 |
Clip, Center Piller Garnish
2022-08 → —
|
NGC10# | — | |
| 62313D — Trim, Front Door Opening, RH | ||||
| 62313-BZ350-C0 note |
Trim, Front Door Opening, RH
2022-08 → —
|
NGC10# | — | |
| 62314D — Trim, Front Door Opening, LH | ||||
| 62313-BZ350-C0 note |
Trim, Front Door Opening, LH
2022-08 → —
|
NGC10# | — | |
| 62333A — Trim, Rear Door Opening, RH | ||||
| 62333-BZ380-C0 note |
Trim, Rear Door Opening, RH
2022-08 → —
|
NGC10# | — | |
| 62334A — Trim, Rear Door Opening, LH | ||||
| 62333-BZ380-C0 note |
Trim, Rear Door Opening, LH
2022-08 → —
|
NGC10# | — | |
| 62411B — Garnish, Center Pillar, Upper RH | ||||
| 62411-BZ270-B0 note |
Garnish, Center Pillar, Upper RH
2022-08 → —
|
NGC100 | — | |
| 62411-BZ270-B0 note |
Garnish, Center Pillar, Upper RH
2022-08 → —
|
NGC101,102 | — | |
| 62411-BZ270-E0 note |
Garnish, Center Pillar, Upper RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62412B — Garnish, Center Pillar, Upper LH | ||||
| 62412-BZ270-B0 note |
Garnish, Center Pillar, Upper LH
2022-08 → —
|
NGC100 | — | |
| 62412-BZ270-B0 note |
Garnish, Center Pillar, Upper LH
2022-08 → —
|
NGC101,102 | — | |
| 62412-BZ270-E0 note |
Garnish, Center Pillar, Upper LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-BZ270-C0 note |
Garnish, Center Pillar, Lower RH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 62413-BZ270-C0 note |
Garnish, Center Pillar, Lower RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62413-BZ270-C0 note |
Garnish, Center Pillar, Lower RH
2022-08 → —
|
NGC100 | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-T0021 |
Clip (FOR CENTER LOWER GARNISH)
2022-08 → —
|
NGC10# | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-BZ270-C0 note |
Garnish, Center Pillar, Lower LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62414-BZ270-C0 note |
Garnish, Center Pillar, Lower LH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 62414-BZ270-C0 note |
Garnish, Center Pillar, Lower LH
2022-08 → —
|
NGC100 | — | |
| 62414B — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-T0021 |
Clip (FOR CENTER LOWER GARNISH)
2022-08 → —
|
NGC10# | — | |
| 62461H — Clip (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-T0021 |
Clip (FOR ROOF SIDE INNER GARNISH)
2022-08 → —
|
NGC10# | — | |
| 62471A — Garnish, Roof Side, Inner RH | ||||
| 62471-BZ450-B0 note |
Garnish, Roof Side, Inner RH
2023-03 → —
|
NGC102 MA | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 H;NGC102 H GCC;NGC101 +6 | — | |
| 62471-BZ500-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC100 | — | |
| 62471-BZ500-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 62471-BZ500-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62471-BZ500-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62471-BZ500-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62471-BZ500-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62471-BZ510-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101,102 L | — | |
| 62471-BZ510-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC100 | — | |
| 62471-BZ520-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC102 5F H;NGC101,102 M +1 | — | |
| 62471-BZ520-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 CVT L | — | |
| 62471-BZ520-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 62471-BZ530-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 PHL;NGC101 RHD M;NGC102 +3 | — | |
| 62471-BZ530-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62471-BZ530-B0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 RHD H | — | |
| 62471-BZ530-E0 note |
Garnish, Roof Side, Inner RH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 62472A — Garnish, Roof Side, Inner LH | ||||
| 62472-BZ450-B0 note |
Garnish, Roof Side, Inner LH
2023-03 → —
|
NGC102 MA | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 H;NGC102 H GCC;NGC101 +6 | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62472-BZ500-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC100 | — | |
| 62472-BZ500-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 LHD H;NGC102 H +4 | — | |
| 62472-BZ500-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62472-BZ500-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62472-BZ500-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 62472-BZ500-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62472-BZ510-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101,102 L | — | |
| 62472-BZ510-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC100 | — | |
| 62472-BZ520-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC102 5F H;NGC101,102 M +1 | — | |
| 62472-BZ520-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 CVT L | — | |
| 62472-BZ520-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 62472-BZ530-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 PHL;NGC101 RHD M;NGC102 +3 | — | |
| 62472-BZ530-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 62472-BZ530-B0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 RHD H | — | |
| 62472-BZ530-E0 note |
Garnish, Roof Side, Inner LH
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +2 | — | |
| 62489A — Clip, Roof Side Inner Garnish | ||||
| 90467-T0021 |
Clip, Roof Side Inner Garnish
2022-08 → —
|
NGC10# | — | |
| 62551A — Cover, Rear Seat Side, RH | ||||
| 62551-BZ100-C0 note |
Cover, Rear Seat Side, RH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 62551-BZ100-C0 note |
Cover, Rear Seat Side, RH
2022-08 → —
|
NGC100 | — | |
| 62551-BZ100-C0 note |
Cover, Rear Seat Side, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62551G — Clip | ||||
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90467-T0021 |
Clip
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 RHD H | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 CVT L | — | |
| 90467-T0021 |
Clip
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 62552A — Cover, Rear Seat Side, LH | ||||
| 62552-BZ100-C0 note |
Cover, Rear Seat Side, LH
2022-08 → —
|
NGC100 | — | |
| 62552-BZ100-C0 note |
Cover, Rear Seat Side, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 62552-BZ100-C0 note |
Cover, Rear Seat Side, LH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 62597D — Clip | ||||
| 90467-T0021 |
Clip
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 RHD H | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC101 CVT L | — | |
| 90467-T0021 |
Clip
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-T0021 note |
Clip
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 62638B — Clip | ||||
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 RHD H | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 CVT L | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90467-18017 |
Clip
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 63630Q — Clip | ||||
| 90467-18017 |
Clip
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 CVT L | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 90467-18017 note |
Clip
2022-08 → —
|
NGC101 RHD H | — | |
| 67913 — Plate, Front Door Scuff, RH | ||||
| 67913-BZ230-C0 note |
Plate, Front Door Scuff, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 67913-BZ230-C0 note |
Plate, Front Door Scuff, RH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 67913-BZ230-C0 note |
Plate, Front Door Scuff, RH
2022-08 → —
|
NGC100 | — | |
| 67914 — Plate, Front Door Scuff, LH | ||||
| 67914-BZ230-C0 note |
Plate, Front Door Scuff, LH
2022-08 → —
|
NGC100 | — | |
| 67914-BZ230-C0 note |
Plate, Front Door Scuff, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 67914-BZ230-C0 note |
Plate, Front Door Scuff, LH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-BZ260-C0 note |
Plate, Rear Door Scuff, RH
2022-08 → —
|
NGC100 | — | |
| 67917-BZ260-C0 note |
Plate, Rear Door Scuff, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 67917-BZ260-C0 note |
Plate, Rear Door Scuff, RH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-BZ260-C0 note |
Plate, Rear Door Scuff, LH
2022-08 → —
|
NGC100 | — | |
| 67918-BZ260-C0 note |
Plate, Rear Door Scuff, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 67918-BZ260-C0 note |
Plate, Rear Door Scuff, LH
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 67923A — Clamp, Door Scuff Plate, NO.1 | ||||
| 67924-BZ020 |
Clamp, Door Scuff Plate, NO.1
2022-08 → —
|
NGC10# | — | |
| 67924A — Clamp, Door Scuff Plate, NO.2 | ||||
| 67924-BZ020 |
Clamp, Door Scuff Plate, NO.2
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
