Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

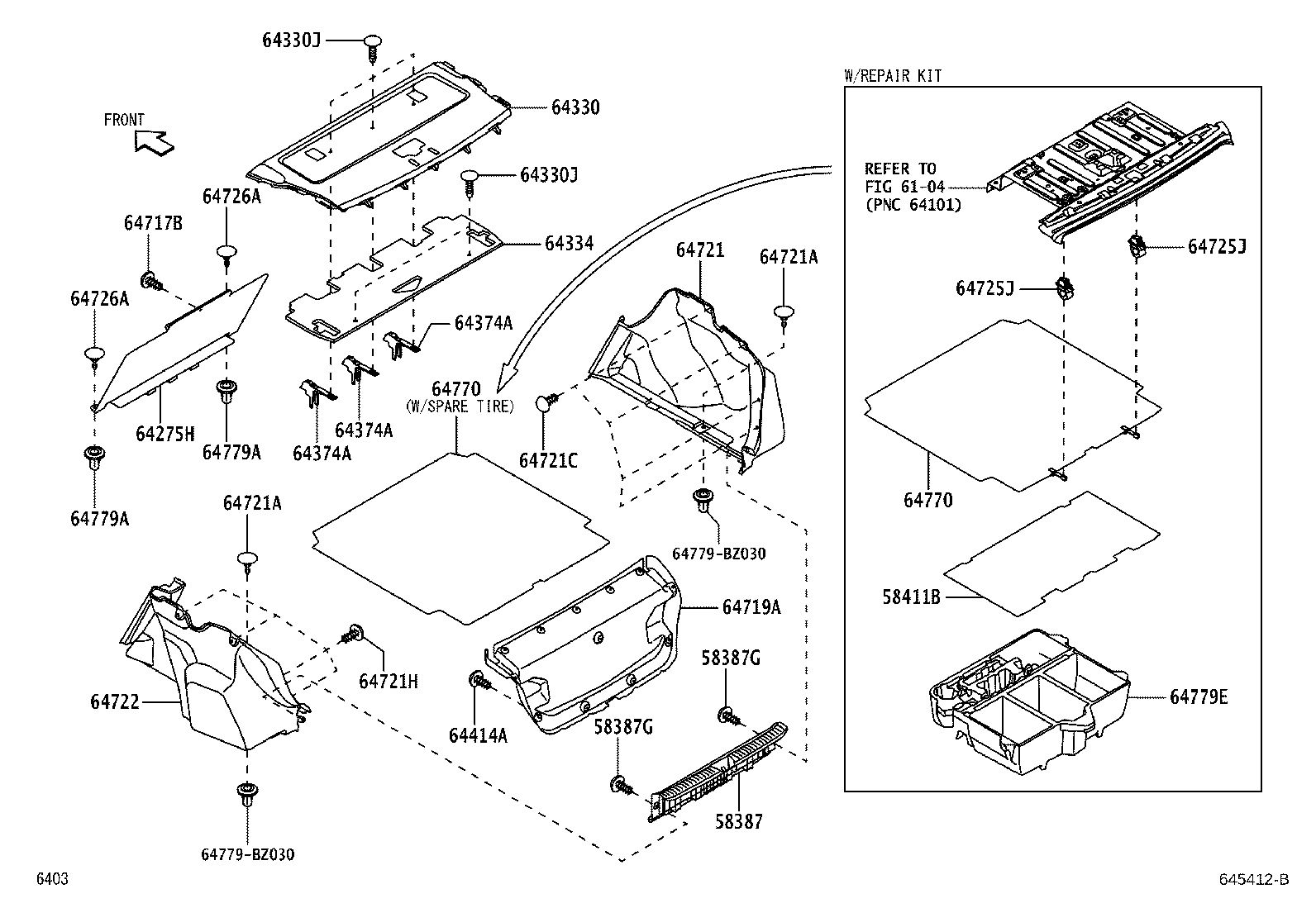

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58387 — Plate, Rear Floor Finish | ||||
| 58387-BZ030-C1 note |
Plate, Rear Floor Finish
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 58387-BZ030-C1 note |
Plate, Rear Floor Finish
2022-08 → —
|
NGC100 | — | |
| 58387-BZ030-C1 note |
Plate, Rear Floor Finish
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 58387G — Clip(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-T0045-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2022-08 → —
|
NGC100 | — | |
| 90467-T0045-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0045-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 58411B — Board, Deck, NO.1 | ||||
| 58411-BZ040-C1 note |
Board, Deck, NO.1
2022-08 → —
|
NGC100 | — | |
| 58411-BZ040-C1 note |
Board, Deck, NO.1
2023-03 → —
|
NGC102 MA | — | |
| 64275H — Cover, Room Partition, NO.1 | ||||
| 64275-BZ010-C1 note |
Cover, Room Partition, NO.1
2022-08 → —
|
NGC100 | — | |
| 64275-BZ010-C1 note |
Cover, Room Partition, NO.1
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 64275-BZ010-C1 note |
Cover, Room Partition, NO.1
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 64330 — Panel Assy, Package Tray Trim | ||||
| 64330-BZ090-C1 note |
Panel Assy, Package Tray Trim
2022-08 → —
|
NGC100 | — | |
| 64330-BZ090-C1 note |
Panel Assy, Package Tray Trim
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 64330-BZ090-C1 note |
Panel Assy, Package Tray Trim
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 64330-BZ100-C1 note |
Panel Assy, Package Tray Trim
2023-03 → —
|
NGC102 MA | — | |
| 64330J — Clip(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-T0046-C1 note |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0046-C1 note |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 90467-T0046-C1 note |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2022-08 → —
|
NGC100 | — | |
| 64334 — Pad, Package Tray Trim Silencer | ||||
| 64334-BZ010 |
Pad, Package Tray Trim Silencer
2022-08 → —
|
NGC10# | — | |
| 64374A — Support, Package Tray Trim | ||||
| 64374-BZ010 |
Support, Package Tray Trim
2022-08 → —
|
NGC10# | — | |
| 64414A — Clip, Luggage Compartment Door Panel | ||||
| 90467-T0045-C0 note |
Clip, Luggage Compartment Door Panel
2022-08 → —
|
NGC100 | — | |
| 90467-T0045-C0 note |
Clip, Luggage Compartment Door Panel
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0045-C0 note |
Clip, Luggage Compartment Door Panel
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 64717B — Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-T0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2022-08 → —
|
NGC100 | — | |
| 90467-T0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 64719A — Cover, Luggage Compartment Door | ||||
| 64719-BZ010-C1 note |
Cover, Luggage Compartment Door
2022-08 → —
|
NGC100 | — | |
| 64719-BZ010-C1 note |
Cover, Luggage Compartment Door
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 64719-BZ010-C1 note |
Cover, Luggage Compartment Door
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 64719-BZ020-C1 note |
Cover, Luggage Compartment Door
2023-03 → —
|
NGC102 MA | — | |
| 64721 — Cover, Luggage Compartment Trim, Inner RH | ||||
| 64721-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC100 | — | |
| 64721-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 64721-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 64721-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC100 | — | |
| 64721-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 64721-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2022-08 → —
|
NGC101 LHD RHD CVT +10 | — | |
| 64721-BZ070-C1 note |
Cover, Luggage Compartment Trim, Inner RH
2023-03 → —
|
NGC102 MA | — | |
| 64721A — Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 64726-0D020 |
Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
2022-08 → —
|
NGC10# | — | |
| 64721C — Clip(LUGGAGE COMPARTMENT) | ||||
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC100 | — | |
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 64721H — Clip(LUGGAGE COMPARTMENT) | ||||
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC100 | — | |
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 90467-T0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 64722 — Cover, Luggage Compartment Trim, Inner LH | ||||
| 64722-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 64722-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 64722-BZ010-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC100 | — | |
| 64722-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC101 (GEN,PHL) RHD H;NGC101 +8 | — | |
| 64722-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 64722-BZ020-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2022-08 → —
|
NGC100 | — | |
| 64722-BZ070-C1 note |
Cover, Luggage Compartment Trim, Inner LH
2023-03 → —
|
NGC102 MA | — | |
| 64725J — Hook, Luggage Compartment Trim, NO.1 | ||||
| 58492-BZ010 |
Hook, Luggage Compartment Trim, NO.1
2022-08 → —
|
NGC100,102 MA,TH | — | |
| 64726A — Clip, Luggage Trim, Rear | ||||
| 64726-0D020 |
Clip, Luggage Trim, Rear
2022-08 → —
|
NGC10# | — | |
| 64770 — Cover Assy, Spare Wheel | ||||
| 64770-BZ040-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC100 | — | |
| 64770-BZ040-C1 note |
Cover Assy, Spare Wheel
2023-03 → —
|
NGC102 MA | — | |
| 64770-BZ050-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 64770-BZ050-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC102 LHD H (GEN,PHL) | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC101 .GEN;NGC101 5F LHD +12 | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +7 | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC100 | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC100 | — | |
| 64770-BZ070-C1 note |
Cover Assy, Spare Wheel
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 64779A — Stopper, Spare Wheel Cover | ||||
| 64779-BZ030 |
Stopper, Spare Wheel Cover
2022-08 → —
|
NGC10# | — | |
| 64779E — Tray, Spare Wheel Cover | ||||
| 64779-BZ021 |
Tray, Spare Wheel Cover
2022-08 → —
|
NGC100,102 MA,TH | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
