Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

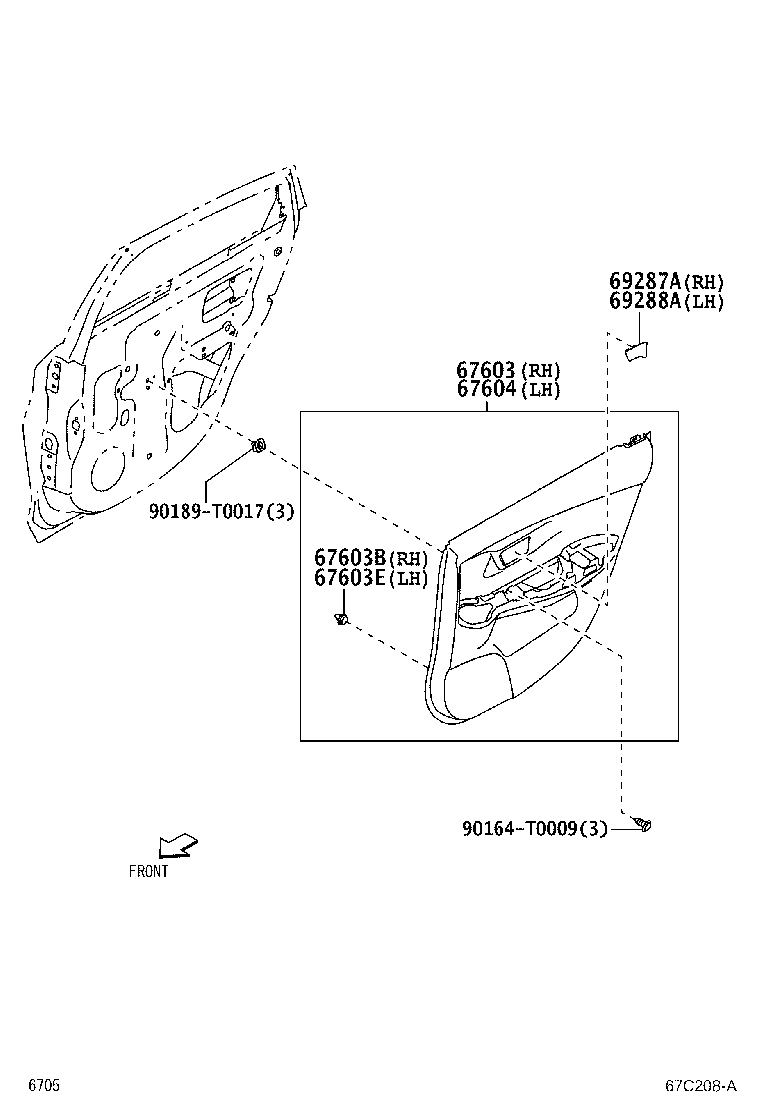

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67630-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC100 | — | |
| 67630-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC101,102 M GCC | — | |
| 67630-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC101,102 M GCC | — | |
| 67630-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67630-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC100 | — | |
| 67630-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC100 | — | |
| 67630-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC101 RHD M;NGC101 LHD +8 | — | |
| 67630-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, RH
2022-08 → 2023-02
ended
|
NGC101 (GEN,PHL) RHD H;NGC101 +8 | — | |
| 67630-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC101 LHD RHD CVT +10 | — | |
| 67630-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 67630-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC100 | — | |
| 67630-BZB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2023-03 → —
|
NGC102 MA | — | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
Clip(FOR REAR DOOR TRIM BOARD)
2022-08 → —
|
NGC10# | — | |
| 67603E — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
Clip(FOR REAR DOOR TRIM BOARD)
2022-08 → —
|
NGC10# | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC101,102 M GCC | — | |
| 67640-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67640-BZ800-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC100 | — | |
| 67640-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC100 | — | |
| 67640-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67640-BZ801-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC101,102 M GCC | — | |
| 67640-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC100 | — | |
| 67640-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC101 (GEN,PHL) RHD H;NGC101 +8 | — | |
| 67640-BZ830-C0 note |
Board Sub-assy, Rear Door Trim, LH
2022-08 → 2023-02
ended
|
NGC101 RHD M;NGC101 LHD +8 | — | |
| 67640-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC100 | — | |
| 67640-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 67640-BZ831-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC101 LHD RHD CVT +10 | — | |
| 67640-BZB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2023-03 → —
|
NGC102 MA | — | |
| 69287A — Bezel, Rear Door Inside Handle, RH | ||||
| 69277-BZ110-C0 note |
Bezel, Rear Door Inside Handle, RH
2022-08 → —
|
NGC100 | — | |
| 69277-BZ110-C0 note |
Bezel, Rear Door Inside Handle, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 69277-BZ110-C0 note |
Bezel, Rear Door Inside Handle, RH
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 69277-BZ120-C0 note |
Bezel, Rear Door Inside Handle, RH
2023-03 → —
|
NGC102 MA | — | |
| 69288A — Bezel, Rear Door Inside Handle, LH | ||||
| 69278-BZ110-C0 note |
Bezel, Rear Door Inside Handle, LH
2022-08 → —
|
NGC100 | — | |
| 69278-BZ110-C0 note |
Bezel, Rear Door Inside Handle, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 69278-BZ110-C0 note |
Bezel, Rear Door Inside Handle, LH
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 69278-BZ120-C0 note |
Bezel, Rear Door Inside Handle, LH
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
