Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

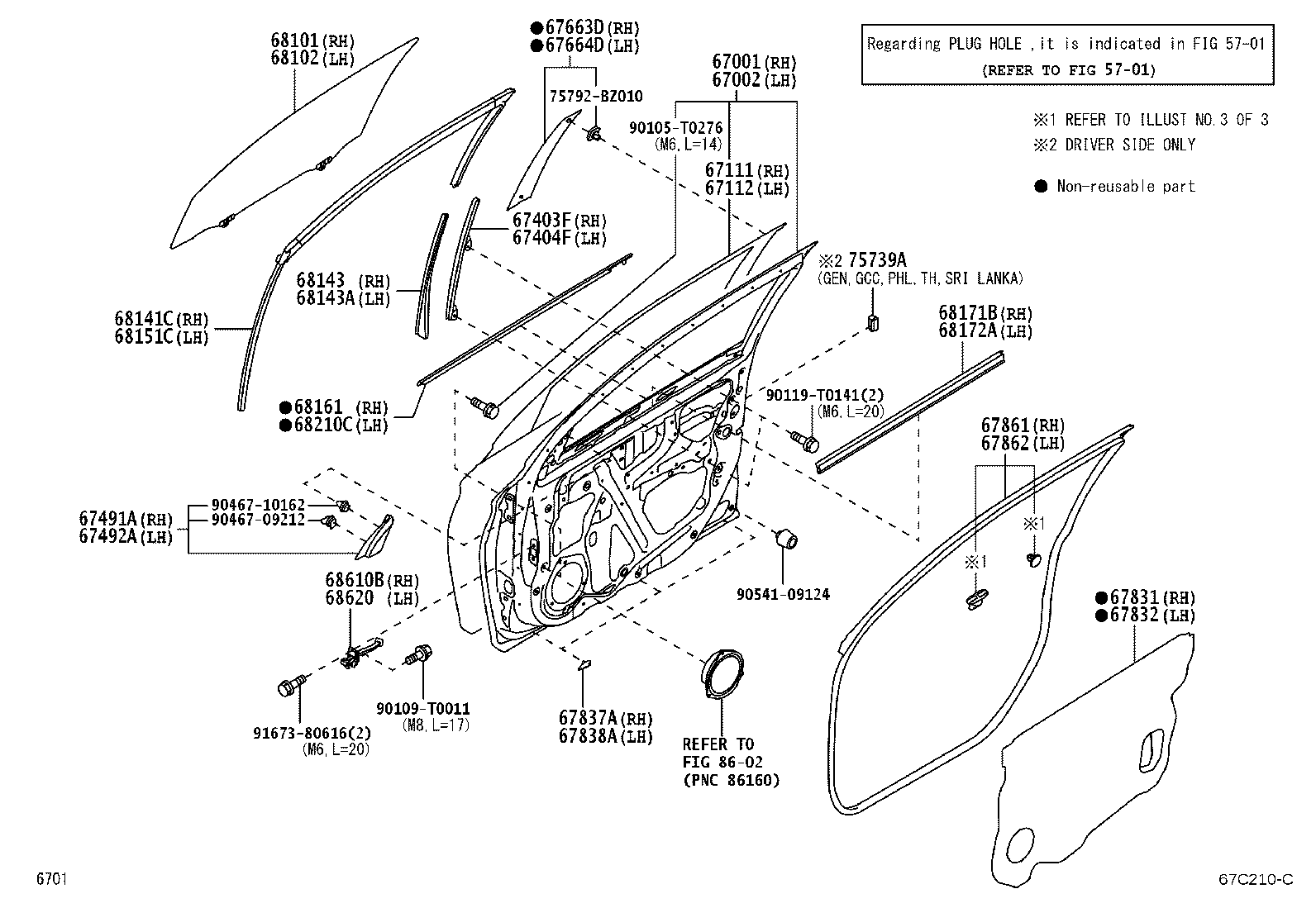

Exploded illustration 67C210C 9167380616 — not listed in this catalogue 9046709212 — not listed in this catalogue 9046710162 — not listed in this catalogue 67837A — SEAL, FRONT DOOR VENT, RH (1 parts) 67838A — SEAL, FRONT DOOR VENT, LH (1 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (1 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (1 parts) 68610B — CHECK ASSY, FRONT DOOR, RH (2 parts) 68620 — CHECK ASSY, FRONT DOOR, LH (2 parts) 90109T0011 — not listed in this catalogue 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (1 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (1 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (2 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (2 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (1 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (1 parts) 9054109124 — not listed in this catalogue 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (1 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (1 parts) 90105T0276 — not listed in this catalogue 75792BZ010 — not listed in this catalogue 67663D — GARNISH, DOOR FRAME, RH (1 parts) 67664D — GARNISH, DOOR FRAME, LH (1 parts) 90119T0141 — not listed in this catalogue 68143 — RUN, FRONT DOOR GLASS, LOWER (1 parts) 68143A — RUN, FRONT DOOR GLASS, NO.2 (1 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (3 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (3 parts) 68141C — RUN, FRONT DOOR GLASS, RH (1 parts) 68151C — RUN, FRONT DOOR GLASS, LH (1 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (1 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 68161 — WEATHERSTRIP, FRONT DOOR GLASS, OUTER (11 parts) 68210C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH (11 parts) 75739A — MOULDING DOOR EDGE (2 parts) 5701 — not listed in this catalogue 8602 — not listed in this catalogue
67C210C · 29 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-BZ750 Panel Sub-assy, Front Door, RH
2022-08 → —
NGC10# GEN,MA,PHL,TH —
67001-BZ760 Panel Sub-assy, Front Door, RH
2022-08 → —
NGC101,102 GCC —
67002 — Panel Sub-assy, Front Door, LH
67002-BZ750 Panel Sub-assy, Front Door, LH
2022-08 → —
NGC10# GEN,MA,PHL,TH —
67002-BZ760 Panel Sub-assy, Front Door, LH
2022-08 → —
NGC101,102 GCC —
67111 — Panel, Front Door, Outer RH
67111-BZ420 Panel, Front Door, Outer RH
2022-08 → —
NGC10# —
67112 — Panel, Front Door, Outer LH
67112-BZ420 Panel, Front Door, Outer LH
2022-08 → —
NGC10# —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-BZ190 Frame Sub-assy, Front Door, Rear Lower RH
2022-08 → —
NGC10# —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-BZ190 Frame Sub-assy, Front Door, Rear Lower LH
2022-08 → —
NGC10# —
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-BZ190 Garnish, Front Door Lower Frame Bracket, RH
2022-08 → —
NGC10# —
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-BZ190 Garnish, Front Door Lower Frame Bracket, LH
2022-08 → —
NGC10# —
67663D — Garnish, Door Frame, RH
75755-BZ010 Garnish, Door Frame, RH
2022-08 → —
NGC10# —
67664D — Garnish, Door Frame, LH
75756-BZ010 Garnish, Door Frame, LH
2022-08 → —
NGC10# —
67831 — Cover, Front Door Service Hole, RH
67831-BZ510 Cover, Front Door Service Hole, RH
2022-08 → —
NGC10# —
67832 — Cover, Front Door Service Hole, LH
67831-BZ510 Cover, Front Door Service Hole, LH
2022-08 → —
NGC10# —
67837A — Seal, Front Door Vent, RH
67837-0K090 Seal, Front Door Vent, RH
2022-08 → —
NGC10# —
67838A — Seal, Front Door Vent, LH
67837-0K090 Seal, Front Door Vent, LH
2022-08 → —
NGC10# —
67861 — Weatherstrip, Front Door, RH
67861-BZ280 Weatherstrip, Front Door, RH
2022-08 → —
NGC10# —
67862 — Weatherstrip, Front Door, LH
67862-BZ270 Weatherstrip, Front Door, LH
2022-08 → —
NGC10# —
68101 — Glass Sub-assy, Front Door, RH
68101-BZ420 Glass Sub-assy, Front Door, RH
2022-08 → —
NGC10#,NYC100 GEN,PHL,TH —
68101-BZ430 Glass Sub-assy, Front Door, RH
2022-08 → —
NGC101,102 GCC —
68101-BZ450 Glass Sub-assy, Front Door, RH
2023-03 → —
NGC102 MA —
68102 — Glass Sub-assy, Front Door, LH
68102-BZ420 Glass Sub-assy, Front Door, LH
2022-08 → —
NGC10#,NYC100 GEN,PHL,TH —
68102-BZ430 Glass Sub-assy, Front Door, LH
2022-08 → —
NGC101,102 GCC —
68102-BZ450 Glass Sub-assy, Front Door, LH
2023-03 → —
NGC102 MA —
68141C — Run, Front Door Glass, RH
68141-BZ240 Run, Front Door Glass, RH
2022-08 → —
NGC10# —
68143 — Run, Front Door Glass, Lower
68143-BZ160 Run, Front Door Glass, Lower
2022-08 → —
NGC10# —
68143A — Run, Front Door Glass, NO.2
68143-BZ160 Run, Front Door Glass, NO.2
2022-08 → —
NGC10# —
68151C — Run, Front Door Glass, LH
68151-BZ240 Run, Front Door Glass, LH
2022-08 → —
NGC10# —
68161 — Weatherstrip, Front Door Glass, Outer
68161-BZ260 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 RHD CVT H +1 —
68161-BZ260 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 RHD CVT H +1 —
68161-BZ260 Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC100,101;NGC102 L,M;NGC102 5F H;NGC102 +3 —
68161-BZ260 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 RHD CVT H +1 —
68161-BZ270 Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 PHL;NGC102 RHD CVT +1 —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 H GCC —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC101,102 H GCC —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC102 H GCC —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC101,102 H GCC —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC100 —
68161-BZ270 note Weatherstrip, Front Door Glass, Outer
2022-08 → —
NGC100 —
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-BZ290 Weatherstrip, Front Door Glass, Inner RH
2022-08 → —
NGC10# —
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-BZ290 Weatherstrip, Front Door Glass, Inner LH
2022-08 → —
NGC10# —
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68162-BZ260 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 RHD CVT H +1 —
68162-BZ260 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 RHD CVT H +1 —
68162-BZ260 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 RHD CVT H +1 —
68162-BZ260 Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC100,101;NGC102 L,M;NGC102 5F H;NGC102 +3 —
68162-BZ270 Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 PHL;NGC102 RHD CVT +1 —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 H GCC —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC101,102 H GCC —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC102 H GCC —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC101,102 H GCC —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC100 —
68162-BZ270 note Weatherstrip Assy, Front Door Glass, Outer LH
2022-08 → —
NGC100 —
68610B — Check Assy, Front Door, RH
68610-BZ240 Check Assy, Front Door, RH
2022-08 → —
NGC10#,NYC100 THP —
68610-BZ260 Check Assy, Front Door, RH
2023-03 → —
NGC102 MA —
68620 — Check Assy, Front Door, LH
68610-BZ240 Check Assy, Front Door, LH
2022-08 → —
NGC10#,NYC100 THP —
68610-BZ260 Check Assy, Front Door, LH
2023-03 → —
NGC102 MA —
75739A — Moulding Door Edge
75739-0K010 Moulding Door Edge
2022-08 → —
NGC101,102,NYC100 GCC,GEN,PHL —
75739-0K010 note Moulding Door Edge
2022-08 → —
NGC100,NYC100 (H,M) TH —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
