Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

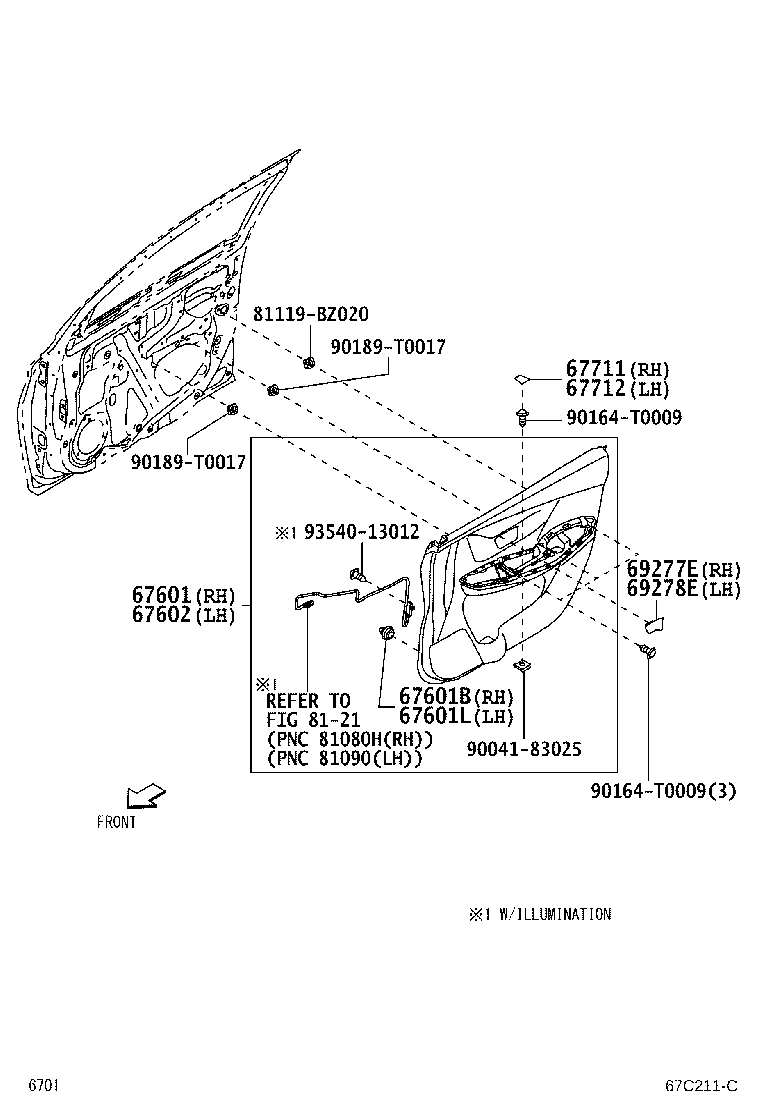

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-BZC00-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 67610-BZC00-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67610-BZC00-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → —
|
NGC100 | — | |
| 67610-BZC50-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 67610-BZC50-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 67610-BZC50-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → —
|
NGC101 1 RHD LHD +10 | — | |
| 67610-BZC80-C0 note |
Board Sub-assy, Front Door Trim, RH
2022-08 → 2023-07
ended
|
NGC100 | — | |
| 67610-BZC81-C0 note |
Board Sub-assy, Front Door Trim, RH
2023-08 → —
|
NGC100 | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → —
|
NGC100 | — | |
| 90467-T0019 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 90467-T0019 |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → —
|
NGC10#;NYC100 LHD | — | |
| 67601L — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → —
|
NGC100 | — | |
| 90467-T0019 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 90467-T0019 |
Clip(FOR FRONT DOOR TRIM BOARD)
2022-08 → —
|
NGC10#;NYC100 LHD | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-BZC00-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → —
|
NGC100 | — | |
| 67620-BZC00-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → —
|
NGC101 L;NGC102 CVT L;NGC102 +2 | — | |
| 67620-BZC00-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 67620-BZC60-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 67620-BZC60-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → —
|
NGC101 GEN RHD M;NGC101 +9 | — | |
| 67620-BZC60-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → —
|
NGC101 1 RHD LHD +10 | — | |
| 67620-BZC90-C0 note |
Board Sub-assy, Front Door Trim, LH
2022-08 → 2023-07
ended
|
NGC100 | — | |
| 67620-BZC91-C0 note |
Board Sub-assy, Front Door Trim, LH
2023-08 → —
|
NGC100 | — | |
| 67711 — Cover, Front Door Trim, RH | ||||
| 74812-BZ020-C0 note |
Cover, Front Door Trim, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 74812-BZ020-C0 note |
Cover, Front Door Trim, RH
2022-08 → —
|
NGC101 C100,102 5F MA,PHL,TH;NGC101 +13 | — | |
| 74812-BZ020-C0 note |
Cover, Front Door Trim, RH
2022-08 → —
|
NGC100 | — | |
| 67712 — Cover, Front Door Trim, LH | ||||
| 74812-BZ020-C0 note |
Cover, Front Door Trim, LH
2022-08 → —
|
NGC101 C100,102 5F MA,PHL,TH;NGC101 +13 | — | |
| 74812-BZ020-C0 note |
Cover, Front Door Trim, LH
2022-08 → —
|
NGC100 | — | |
| 74812-BZ020-C0 note |
Cover, Front Door Trim, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 69277E — Bezel, Front Door Inside Handle, RH | ||||
| 69277-BZ110-C0 note |
Bezel, Front Door Inside Handle, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 69277-BZ110-C0 note |
Bezel, Front Door Inside Handle, RH
2022-08 → —
|
NGC101 HL);NGC100,NYC100 5F THP +14 | — | |
| 69277-BZ110-C0 note |
Bezel, Front Door Inside Handle, RH
2022-08 → —
|
NGC100 | — | |
| 69277-BZ120-C0 note |
Bezel, Front Door Inside Handle, RH
2023-03 → —
|
NGC102 MA | — | |
| 69278E — Bezel, Front Door Inside Handle, LH | ||||
| 69278-BZ110-C0 note |
Bezel, Front Door Inside Handle, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 69278-BZ110-C0 note |
Bezel, Front Door Inside Handle, LH
2022-08 → —
|
NGC101 HL);NGC100,NYC100 5F THP +14 | — | |
| 69278-BZ110-C0 note |
Bezel, Front Door Inside Handle, LH
2022-08 → —
|
NGC100 | — | |
| 69278-BZ120-C0 note |
Bezel, Front Door Inside Handle, LH
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
