Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

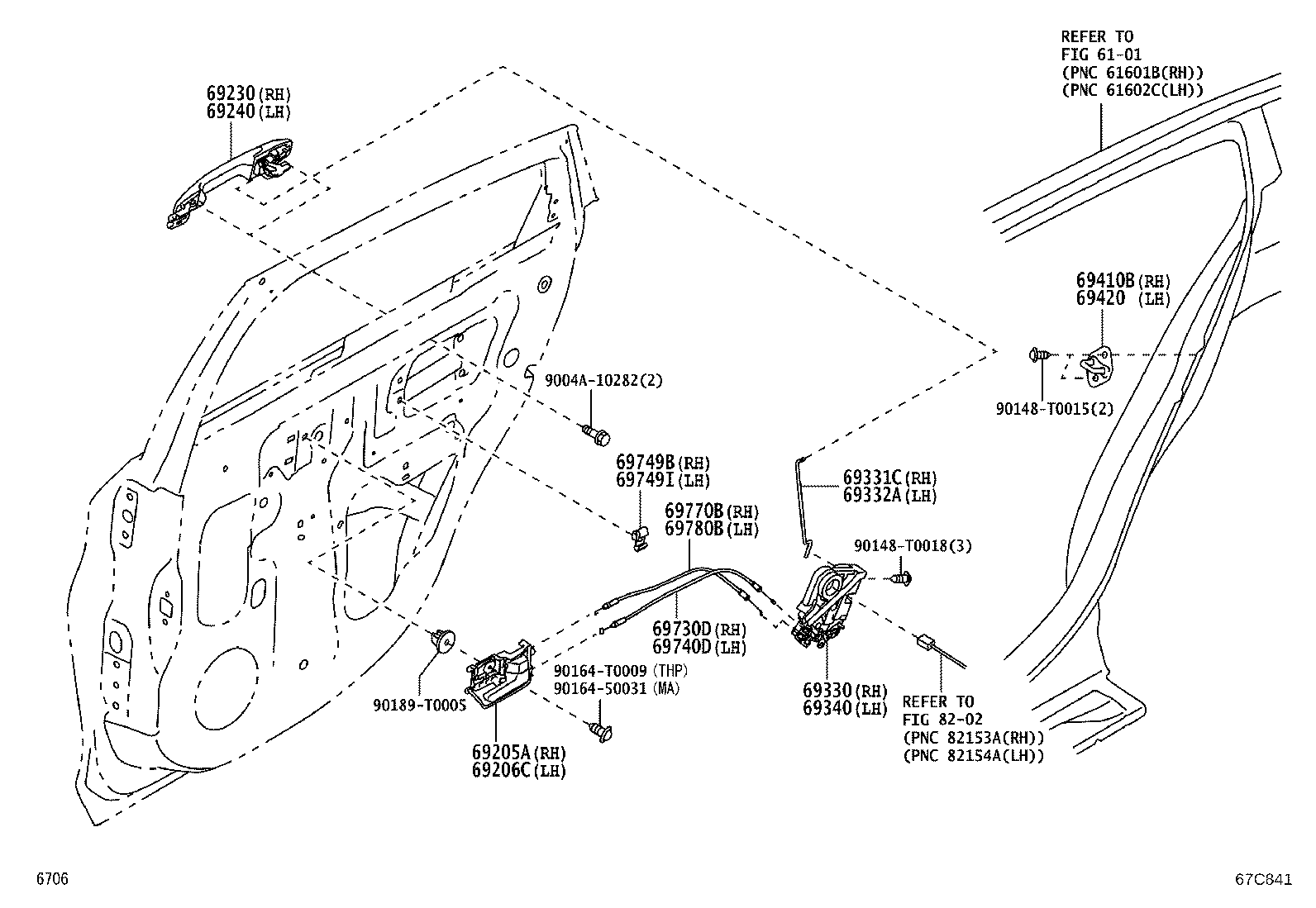

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

92 parts on this figure

Part number	Description	Fitment	Price
69205A — Handle Sub-assy, Rear Door Inside, RH
69270-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC101,102 M GCC;NGC102 RHD +2	—
69270-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC100	—
69270-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC101,102 L	—
69270-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC100	—
69270-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC102 .LHD 5F CVT +10	—
69270-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, RH 2022-08 → —	NGC101 H RHD GEN +10	—
69270-BZ270-C1 note	Handle Sub-assy, Rear Door Inside, RH 2023-03 → —	NGC102 MA	—
69206C — Handle Sub-assy, Rear Door Inside, LH
69280-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC100	—
69280-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC101,102 M GCC;NGC102 RHD +2	—
69280-BZ230-C0 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC101,102 L	—
69280-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC100	—
69280-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC102 .LHD 5F CVT +10	—
69280-BZ240-C1 note	Handle Sub-assy, Rear Door Inside, LH 2022-08 → —	NGC101 H RHD GEN +10	—
69280-BZ270-C1 note	Handle Sub-assy, Rear Door Inside, LH 2023-03 → —	NGC102 MA	—
69230 — Handle Assy, Rear Door Outside, RH
69210-BZ670-A1 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69210-BZ670-B2 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69210-BZ670-B3 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69210-BZ670-C0 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69210-BZ670-D1 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69210-BZ670-J1 note	Handle Assy, Rear Door Outside, RH 2023-03 → —	NGC102 MA	—
69230-BZ070-A0 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC10# GCC,GEN,TH	—
69230-BZ070-A1 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NYC100 GEN,PHL;NGC100,NYC100 (H,M) TH	—
69230-BZ070-A1 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC101,102 THP	—
69230-BZ070-B0 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC10# THP;NYC100 H TH	—
69230-BZ070-B1 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC10# THP	—
69230-BZ070-B2 note	Handle Assy, Rear Door Outside, RH 2024-10 → —	NGC100	—
69230-BZ070-C0 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC10#,NYC100 GCC,GEN,TH	—
69230-BZ070-D0 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NGC10# THP;NYC100 H TH	—
69230-BZ070-D1 note	Handle Assy, Rear Door Outside, RH 2022-08 → —	NYC100 H TH;NGC10# GCC,GEN,TH	—
69240 — Handle Assy, Rear Door Outside, LH
69220-BZ660-A1 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69220-BZ660-B2 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69220-BZ660-B3 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69220-BZ660-C0 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69220-BZ660-D1 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69220-BZ660-J1 note	Handle Assy, Rear Door Outside, LH 2023-03 → —	NGC102 MA	—
69240-BZ070-A0 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC10# GCC,GEN,TH	—
69240-BZ070-A1 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NYC100 GEN,PHL;NGC100,NYC100 (H,M) TH	—
69240-BZ070-A1 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC101,102 THP	—
69240-BZ070-B0 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC10# THP;NYC100 H TH	—
69240-BZ070-B1 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC10# THP	—
69240-BZ070-B2 note	Handle Assy, Rear Door Outside, LH 2024-10 → —	NGC100	—
69240-BZ070-C0 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC10#,NYC100 GCC,GEN,TH	—
69240-BZ070-D0 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NGC10# THP;NYC100 H TH	—
69240-BZ070-D1 note	Handle Assy, Rear Door Outside, LH 2022-08 → —	NYC100 H TH;NGC10# GCC,GEN,TH	—
69330 — Lock Assy, Rear Door, RH
69330-BZ290 note	Lock Assy, Rear Door, RH 2023-04 → —	NGC102 LHD (H,M) GEN	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC102,NYC100 LHD (H,M) GEN	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101 LHD CVT M +1	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101 RHD M	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NYC100 LHD GEN;NGC101 LHD +3	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC102 GCC	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NYC100 LHD GEN;NGC102 LHD +3	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101 CVT L;NYC100 RHD +2	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101 5F M GEN;NGC101 +3	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC102 5F L;NYC100 LHD +1	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101,102 GCC	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC102 GCC	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NYC100 LHD GEN;NGC101 LHD +3	—
69330-BZ290	Lock Assy, Rear Door, RH 2022-08 → —	NGC10#,NYC100 PHL,TH	—
69330-BZ290 note	Lock Assy, Rear Door, RH 2022-08 → —	NGC101 RHD (H,M)	—
69330-BZ300	Lock Assy, Rear Door, RH 2022-08 → —	NGC101,102,NYC100 GCC,GEN	—
69330-BZ430	Lock Assy, Rear Door, RH 2023-03 → —	NGC102 MA	—
69331C — Rod, Rear Door Lock Open, RH
69331-BZ130	Rod, Rear Door Lock Open, RH 2022-08 → —	NGC10#	—
69332A — Rod, Rear Door Lock Open, LH
69332-BZ130	Rod, Rear Door Lock Open, LH 2022-08 → —	NGC10#	—
69340 — Lock Assy, Rear Door, LH
69340-BZ290 note	Lock Assy, Rear Door, LH 2023-04 → —	NGC102 LHD (H,M) GEN	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC102,NYC100 LHD (H,M) GEN	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101 RHD M	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NYC100 LHD GEN;NGC101 LHD +3	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC102 GCC	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NYC100 LHD GEN;NGC102 LHD +3	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101 CVT L;NYC100 RHD +2	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101 5F M GEN;NGC101 +3	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC102 5F L;NYC100 LHD +1	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101,102 GCC	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC102 GCC	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101 LHD CVT M +1	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NYC100 LHD GEN;NGC101 LHD +3	—
69340-BZ290	Lock Assy, Rear Door, LH 2022-08 → —	NGC10#,NYC100 PHL,TH	—
69340-BZ290 note	Lock Assy, Rear Door, LH 2022-08 → —	NGC101 RHD (H,M)	—
69340-BZ300	Lock Assy, Rear Door, LH 2022-08 → —	NGC101,102,NYC100 GCC,GEN	—
69340-BZ430	Lock Assy, Rear Door, LH 2023-03 → —	NGC102 MA	—
69410B — Plate Assy, Rear Door Lock Striker
69410-0D070	Plate Assy, Rear Door Lock Striker 2022-08 → —	NGC10#	—
69420 — Plate Assy, Rear Door Lock Striker
69410-0D070	Plate Assy, Rear Door Lock Striker 2022-08 → —	NGC10#	—
69730D — Cable Assy, Rear Door Lock Remote Control, RH
69730-BZ290	Cable Assy, Rear Door Lock Remote Control, RH 2022-08 → —	NGC10#,NYC100 THP	—
69730-BZ310	Cable Assy, Rear Door Lock Remote Control, RH 2023-03 → —	NGC102 MA	—
69740D — Cable Assy, Rear Door Lock Remote Control LH
69730-BZ290	Cable Assy, Rear Door Lock Remote Control LH 2022-08 → —	NGC10#,NYC100 THP	—
69730-BZ310	Cable Assy, Rear Door Lock Remote Control LH 2023-03 → —	NGC102 MA	—
69749B — Clamp, Rear Door Lock Link
69749-32040	Clamp, Rear Door Lock Link 2022-08 → —	NGC10#	—
69749I — Clamp, Door Lock Link
69749-32040	Clamp, Door Lock Link 2022-08 → —	NGC10#	—
69770B — Cable Assy, Rear Door Inside Locking, RH
69770-BZ200	Cable Assy, Rear Door Inside Locking, RH 2022-08 → —	NGC10#,NYC100 THP	—
69770-BZ220	Cable Assy, Rear Door Inside Locking, RH 2023-03 → —	NGC102 MA	—
69780B — Cable Assy, Rear Door Inside Locking, LH
69780-BZ200	Cable Assy, Rear Door Inside Locking, LH 2022-08 → —	NGC10#,NYC100 THP	—
69780-BZ220	Cable Assy, Rear Door Inside Locking, LH 2023-03 → —	NGC102 MA	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
