Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

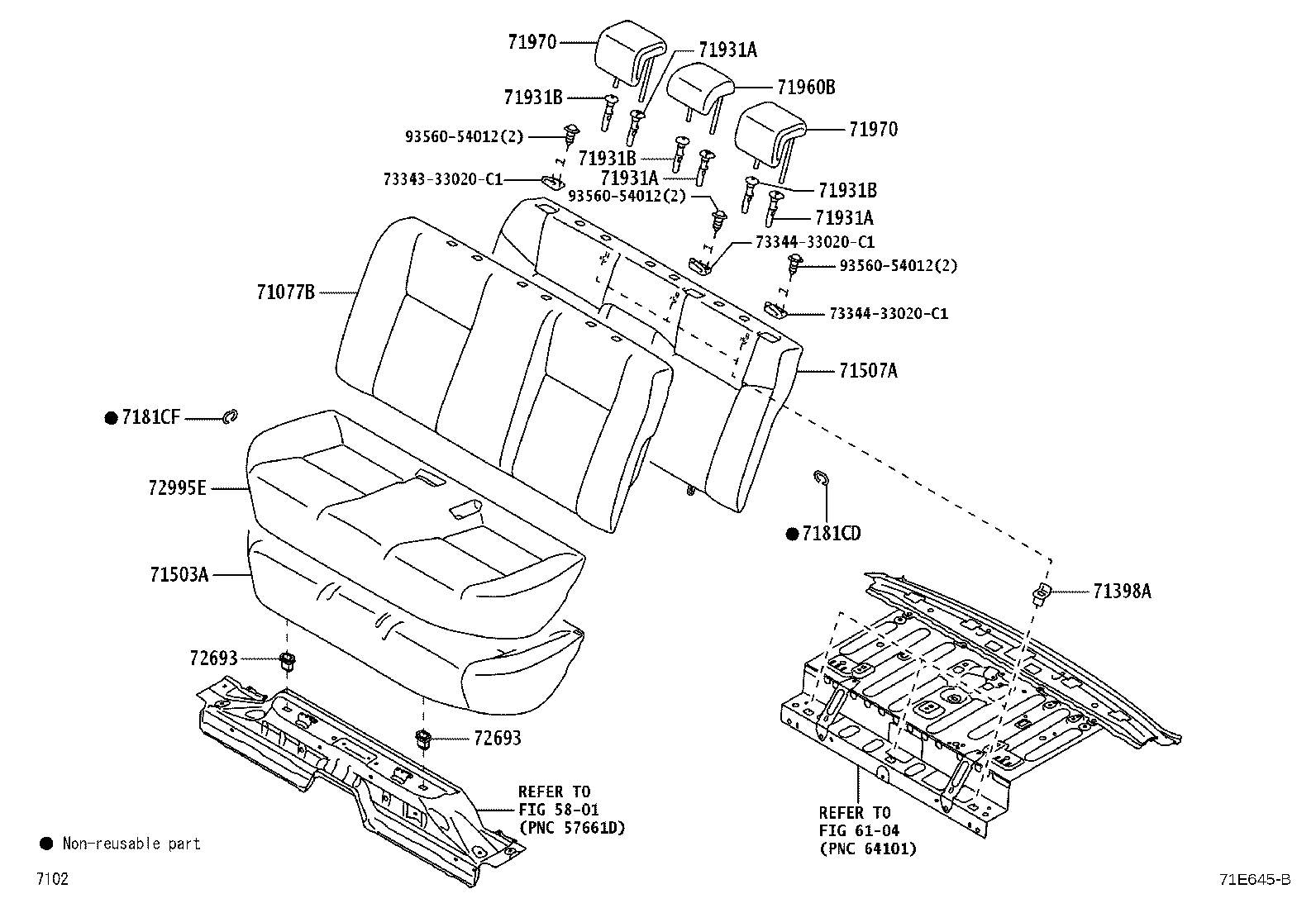

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71077B — Cover, Rear Seatback (FOR BENCH TYPE) | ||||
| 71077-BZJ70-D5 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC100 | — | |
| 71077-BZN50-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC100 | — | |
| 71077-BZN50-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC101,102 L;NGC101,102 M GCC | — | |
| 71077-BZN50-E4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC101,102 M GCC | — | |
| 71077-BZN60-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → 2023-04
ended
|
NGC102 RHD CVT H +1 | — | |
| 71077-BZN60-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → 2023-04
ended
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71077-BZN60-C5 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71077-BZN60-C5 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC102 RHD CVT H +1 | — | |
| 71077-BZN60-E4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC101 5F M GEN;NGC101,102 +5 | — | |
| 71077-BZN70-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → 2023-04
ended
|
NGC100 | — | |
| 71077-BZN70-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → 2023-04
ended
|
NGC100;NGC101,102 CVT H GEN | — | |
| 71077-BZN70-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC100;NGC101,102 CVT H GEN | — | |
| 71077-BZN70-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC100 | — | |
| 71077-BZN70-E4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2022-08 → —
|
NGC101 LHD H GEN;NGC102 +4 | — | |
| 71077-BZN80-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-03 → 2023-04
ended
|
NGC102 M MA | — | |
| 71077-BZN80-C4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC102 M MA | — | |
| 71077-BZN90-C2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-03 → 2023-04
ended
|
NGC102 H MA | — | |
| 71077-BZN90-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-04 → —
|
NGC102 H MA | — | |
| 71398A — Holder, Rear Seatback | ||||
| 71398-02040 |
Holder, Rear Seatback
2022-08 → —
|
NGC10# | — | |
| 71503A — Pad Sub-assy, Rear Seat Cushion | ||||
| 71503-BZ650 |
Pad Sub-assy, Rear Seat Cushion
2022-08 → —
|
NGC10# THP | — | |
| 71503-BZ660 |
Pad Sub-assy, Rear Seat Cushion
2023-03 → —
|
NGC102 MA | — | |
| 71507A — Pad Sub-assy, Rear Seatback | ||||
| 71507-BZ580 |
Pad Sub-assy, Rear Seatback
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 71507-BZ590 |
Pad Sub-assy, Rear Seatback
2023-03 → —
|
NGC102 MA | — | |
| 7181CD — Ring, Hog, Small (FOR REAR SEATBACK) | ||||
| 90468-18008 |
Ring, Hog, Small (FOR REAR SEATBACK)
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 90468-18008 |
Ring, Hog, Small (FOR REAR SEATBACK)
2023-03 → —
|
NGC102 MA | — | |
| 7181CF — Ring, Hog, Small (FOR REAR SEAT CUSHION) | ||||
| 90468-18008 |
Ring, Hog, Small (FOR REAR SEAT CUSHION)
2022-08 → —
|
NGC10# | — | |
| 71931A — Support, Rear Seat Headrest | ||||
| 71930-02370-C3 note |
Support, Rear Seat Headrest
2022-08 → —
|
NGC100 | — | |
| 71930-02370-C3 note |
Support, Rear Seat Headrest
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 71930-02370-C3 note |
Support, Rear Seat Headrest
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 71930-02370-C3 note |
Support, Rear Seat Headrest
2023-03 → —
|
NGC102 MA | — | |
| 71931B — Support Assy, Rear NO.1 Seat Headrest | ||||
| 71931-02130-C3 note |
Support Assy, Rear NO.1 Seat Headrest
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 71931-02130-C3 note |
Support Assy, Rear NO.1 Seat Headrest
2023-03 → —
|
NGC102 MA | — | |
| 71931-02130-C3 note |
Support Assy, Rear NO.1 Seat Headrest
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 71931-02130-C3 note |
Support Assy, Rear NO.1 Seat Headrest
2022-08 → —
|
NGC100 | — | |
| 71960B — Headrest Assy, Rear Seat, Center | ||||
| 71960-BZ120-C2 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC101,102 L;NGC101,102 M GCC | — | |
| 71960-BZ120-C2 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC100 | — | |
| 71960-BZ120-E2 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC101,102 M GCC | — | |
| 71960-BZ130-C1 note |
Headrest Assy, Rear Seat, Center
2022-08 → 2023-04
ended
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71960-BZ130-C1 note |
Headrest Assy, Rear Seat, Center
2022-08 → 2023-04
ended
|
NGC102 RHD CVT H +1 | — | |
| 71960-BZ130-C3 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC102 RHD CVT H +1 | — | |
| 71960-BZ130-C3 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71960-BZ130-E2 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC101 5F M GEN;NGC101,102 +5 | — | |
| 71960-BZ140-C0 note |
Headrest Assy, Rear Seat, Center
2022-08 → 2023-04
ended
|
NGC100 | — | |
| 71960-BZ140-C0 note |
Headrest Assy, Rear Seat, Center
2022-08 → 2023-04
ended
|
NGC100;NGC101,102 CVT H GEN | — | |
| 71960-BZ140-C5 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC101,102 CVT H GEN;NGC100,NYC100 +2 | — | |
| 71960-BZ140-C5 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC100 | — | |
| 71960-BZ140-E1 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC101 LHD H GEN;NGC102 +4 | — | |
| 71960-BZ150-C1 note |
Headrest Assy, Rear Seat, Center
2023-03 → 2023-04
ended
|
NGC102 M MA | — | |
| 71960-BZ150-C3 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC102 M MA | — | |
| 71960-BZ160-C0 note |
Headrest Assy, Rear Seat, Center
2023-03 → 2023-04
ended
|
NGC102 H MA | — | |
| 71960-BZ160-C2 note |
Headrest Assy, Rear Seat, Center
2023-04 → —
|
NGC102 H MA | — | |
| 71960-BZ170-D1 note |
Headrest Assy, Rear Seat, Center
2022-08 → —
|
NGC100 | — | |
| 71970 — Headrest Assy, Rear Seat | ||||
| 71940-BZG80-C1 note |
Headrest Assy, Rear Seat
2023-03 → 2023-04
ended
|
NGC102 M MA | — | |
| 71940-BZG80-C3 note |
Headrest Assy, Rear Seat
2023-04 → —
|
NGC102 M MA | — | |
| 71940-BZG90-C0 note |
Headrest Assy, Rear Seat
2023-03 → 2023-04
ended
|
NGC102 H MA | — | |
| 71940-BZG90-C2 note |
Headrest Assy, Rear Seat
2023-04 → —
|
NGC102 H MA | — | |
| 72693 — Hook, Rear Seat Cushion Lock | ||||
| 72693-12080 |
Hook, Rear Seat Cushion Lock
2022-08 → —
|
NGC10# | — | |
| 72995E — Cover, Rear Seat Cushion | ||||
| 71075-BZK90-D2 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC100 | — | |
| 71075-BZN90-C2 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC101,102 L;NGC101,102 M GCC | — | |
| 71075-BZN90-C2 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC100 | — | |
| 71075-BZN90-E2 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC101,102 M GCC | — | |
| 71075-BZP00-C2 note |
Cover, Rear Seat Cushion
2022-08 → 2023-04
ended
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71075-BZP00-C2 note |
Cover, Rear Seat Cushion
2022-08 → 2023-04
ended
|
NGC102 RHD CVT H +1 | — | |
| 71075-BZP00-C3 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC102 RHD CVT H +1 | — | |
| 71075-BZP00-C3 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC102 5F H;NGC101,102 H +3 | — | |
| 71075-BZP00-E2 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC101 5F M GEN;NGC101,102 +5 | — | |
| 71075-BZP10-C1 note |
Cover, Rear Seat Cushion
2022-08 → 2023-04
ended
|
NGC100;NGC101,102 CVT H GEN | — | |
| 71075-BZP10-C1 note |
Cover, Rear Seat Cushion
2022-08 → 2023-04
ended
|
NGC100 | — | |
| 71075-BZP10-C2 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC100;NGC101,102 CVT H GEN | — | |
| 71075-BZP10-C2 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC100 | — | |
| 71075-BZP10-E1 note |
Cover, Rear Seat Cushion
2022-08 → —
|
NGC101 LHD H GEN;NGC102 +4 | — | |
| 71075-BZP20-C2 note |
Cover, Rear Seat Cushion
2023-03 → 2023-04
ended
|
NGC102 M MA | — | |
| 71075-BZP20-C3 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC102 M MA | — | |
| 71075-BZP30-C1 note |
Cover, Rear Seat Cushion
2023-03 → 2023-04
ended
|
NGC102 H MA | — | |
| 71075-BZP30-C2 note |
Cover, Rear Seat Cushion
2023-04 → —
|
NGC102 H MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
