Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

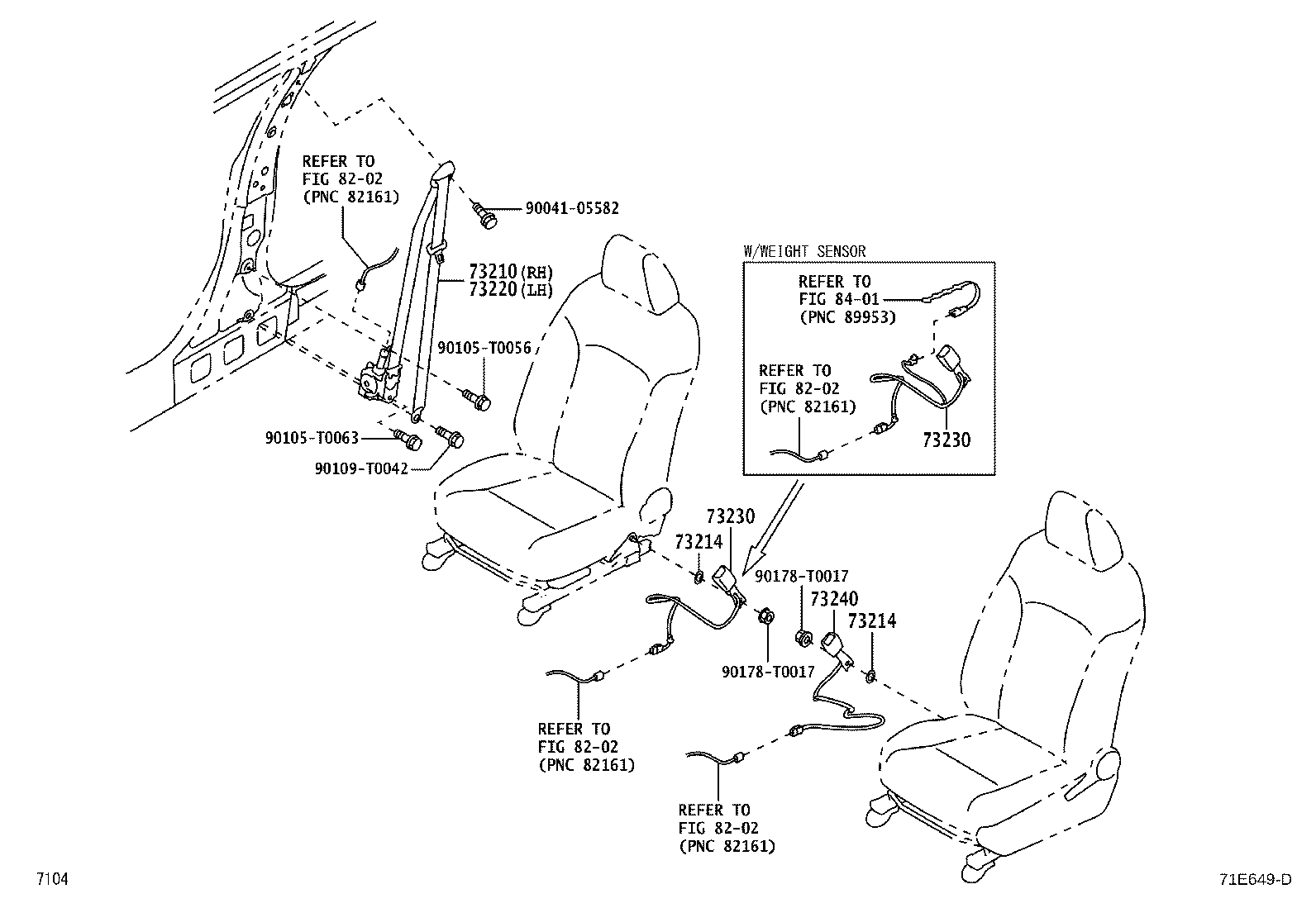

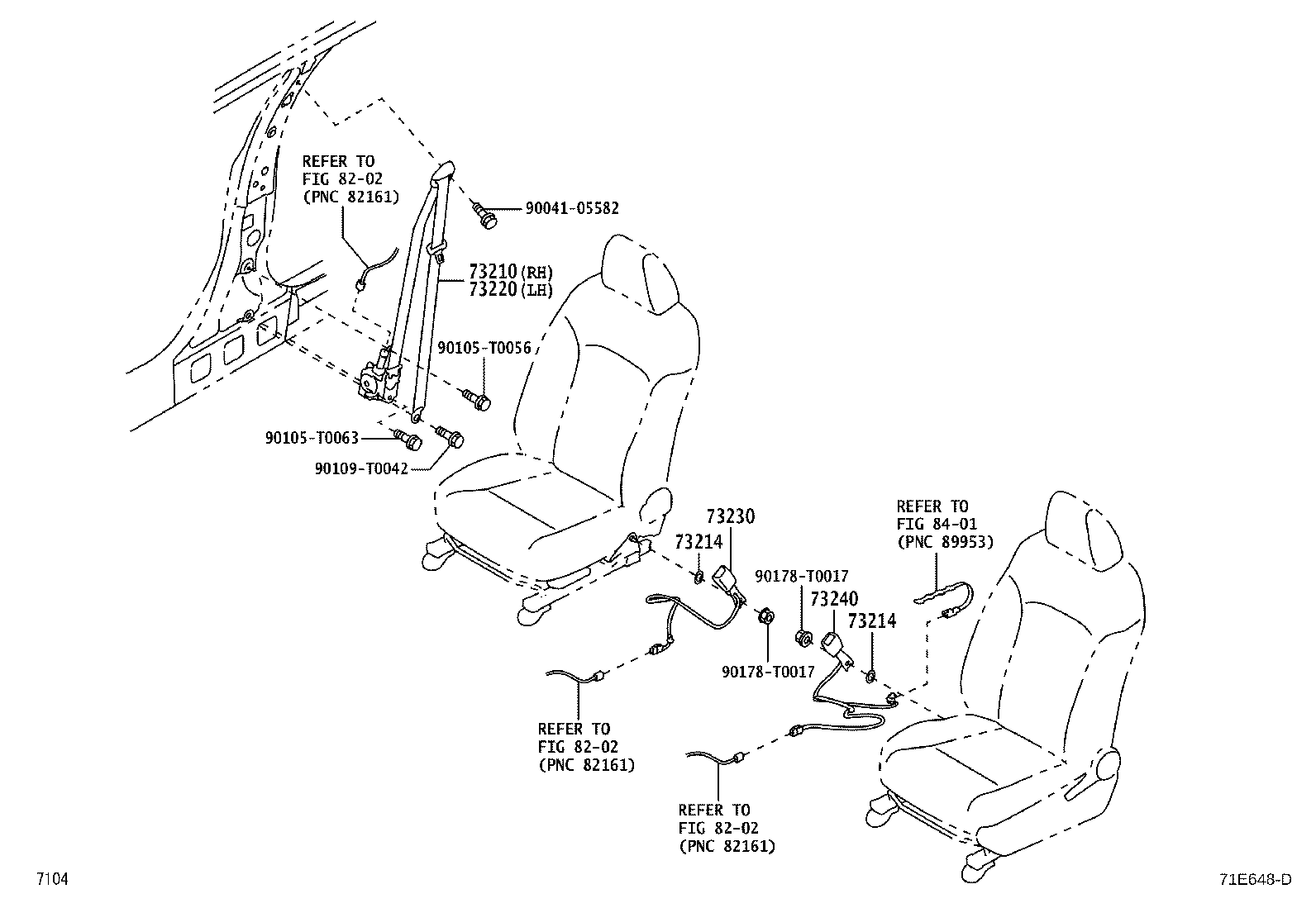

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73210 — Belt Assy, Front Seat Outer, RH | ||||
| 73210-BZ710-C1 note |
Belt Assy, Front Seat Outer, RH
2022-08 → —
|
NGC10# THP | — | |
| 73210-BZ710-C2 note |
Belt Assy, Front Seat Outer, RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 73210-BZ810-C1 note |
Belt Assy, Front Seat Outer, RH
2023-03 → —
|
NGC102 MA | — | |
| 73214 — Plate, Front Seat Belt Anchor | ||||
| 73214-0K010 |
Plate, Front Seat Belt Anchor
2022-08 → —
|
NGC10# | — | |
| 73220 — Belt Assy, Front Seat Outer, LH | ||||
| 73220-BZ680-C1 note |
Belt Assy, Front Seat Outer, LH
2022-08 → —
|
NGC10# THP | — | |
| 73220-BZ680-C2 note |
Belt Assy, Front Seat Outer, LH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 73220-BZ760-C1 note |
Belt Assy, Front Seat Outer, LH
2023-03 → —
|
NGC102 MA | — | |
| 73230 — Belt Assy, Front Seat Inner, RH | ||||
| 73230-BZD60-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC100 | — | |
| 73230-BZD60-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101 RHD M | — | |
| 73230-BZD60-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101 RHD H;NYC100 THP +3 | — | |
| 73230-BZD70-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101 CVT L | — | |
| 73230-BZD80-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101 ) 5F L;NGC101 +8 | — | |
| 73230-BZD80-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101 5F M GEN;NGC101 +3 | — | |
| 73230-BZD90-C0 note |
Belt Assy, Front Seat Inner, RH
2022-08 → —
|
NGC101,102 GCC | — | |
| 73230-BZF90-C0 note |
Belt Assy, Front Seat Inner, RH
2023-03 → —
|
NGC102 MA | — | |
| 73240 — Belt Assy, Front Seat Inner, LH | ||||
| 73230-BZD60-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC101,102 GCC;NGC101 5F M +4 | — | |
| 73230-BZD60-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC101 5F PHL;NGC102 LHD +6 | — | |
| 73230-BZD70-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC101,102 LHD L | — | |
| 73230-BZD70-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC102 M GCC | — | |
| 73230-BZD80-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC100 | — | |
| 73230-BZD80-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NGC101 RHD M | — | |
| 73230-BZD80-C0 note |
Belt Assy, Front Seat Inner, LH
2022-08 → —
|
NYC100 THP G;NGC102 RHD +3 | — | |
| 73230-BZG00-C0 note |
Belt Assy, Front Seat Inner, LH
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
