Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

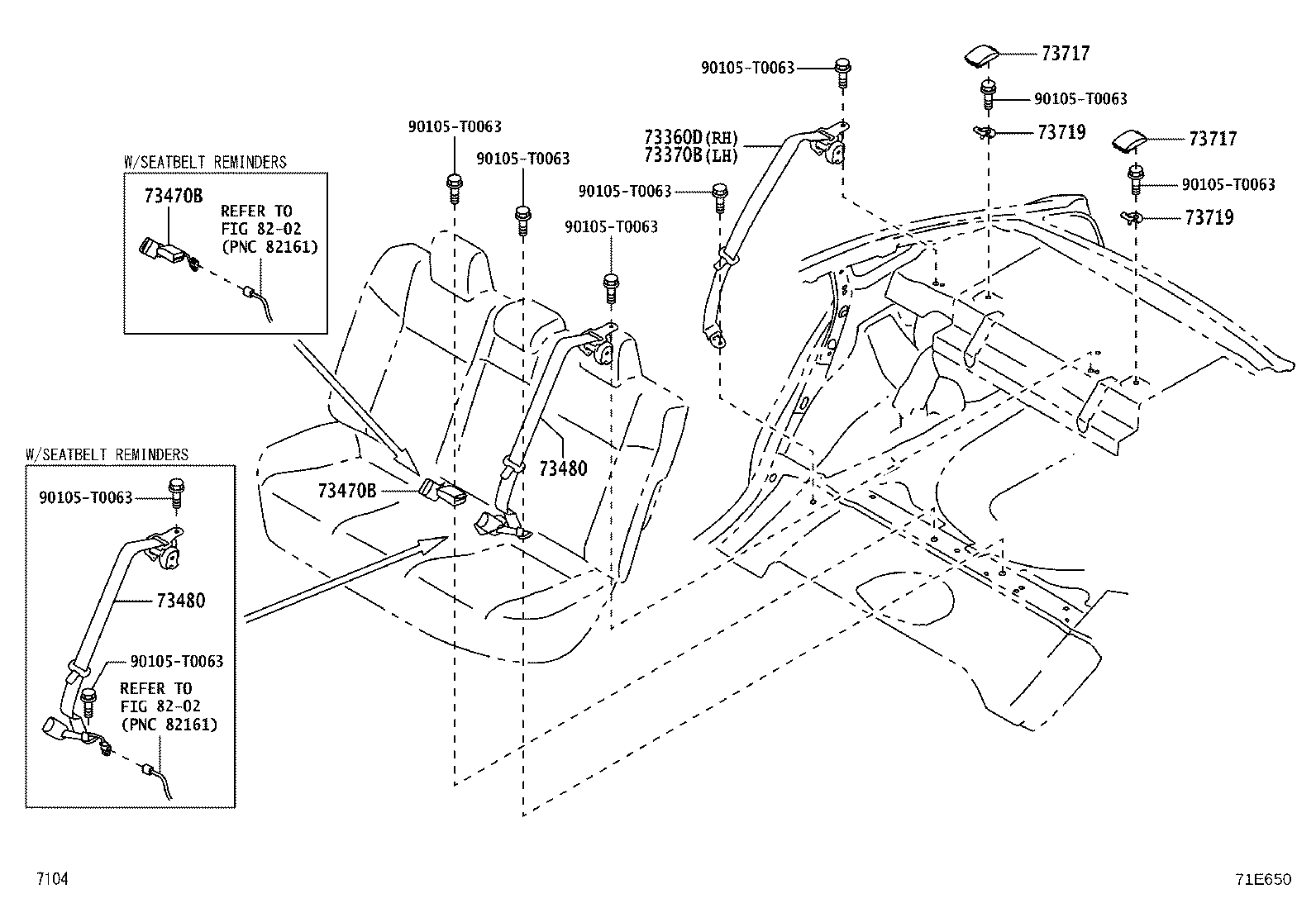

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73360D — Belt Assy, Rear Seat, Outer RH | ||||
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer RH
2022-08 → —
|
NGC100 | — | |
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer RH
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer RH
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 73360-BZ480-C1 note |
Belt Assy, Rear Seat, Outer RH
2023-03 → 2023-04
ended
|
NGC102 MA | — | |
| 73360-BZ481-C1 note |
Belt Assy, Rear Seat, Outer RH
2023-04 → —
|
NGC102 MA | — | |
| 73370B — Belt Assy, Rear Seat, Outer | ||||
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer
2022-08 → —
|
NGC100 | — | |
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 73360-BZ400-C1 note |
Belt Assy, Rear Seat, Outer
2022-08 → —
|
NGC101 02 5F LHD +14 | — | |
| 73360-BZ480-C1 note |
Belt Assy, Rear Seat, Outer
2023-03 → 2023-04
ended
|
NGC102 MA | — | |
| 73360-BZ481-C1 note |
Belt Assy, Rear Seat, Outer
2023-04 → —
|
NGC102 MA | — | |
| 73470B — Belt Assy, Rear Seat Inner W/Center, RH | ||||
| 73470-BZ180-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2022-08 → —
|
NGC101,102 GCC | — | |
| 73470-BZ190-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2022-08 → —
|
NGC101 HL);NGC101 5F LHD +12 | — | |
| 73470-BZ190-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2022-08 → —
|
NGC101 RHD M;NGC101 5F +8 | — | |
| 73470-BZ190-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2022-08 → —
|
NGC100 | — | |
| 73470-BZ290-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2023-03 → —
|
NGC102 MA | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-BZ160-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2022-08 → —
|
NGC101,102 GCC | — | |
| 73480-BZ170-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2022-08 → —
|
NGC100 | — | |
| 73480-BZ170-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2022-08 → —
|
NGC101 HL);NGC101 5F LHD +12 | — | |
| 73480-BZ170-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2022-08 → —
|
NGC101 RHD M;NGC101 5F +8 | — | |
| 73480-BZ270-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2023-03 → —
|
NGC102 MA | — | |
| 73717 — Cover, Child Restraint Seat Tether Anchor | ||||
| 64332-0D011-C1 note |
Cover, Child Restraint Seat Tether Anchor
2022-08 → —
|
NGC100 | — | |
| 64332-0D011-C1 note |
Cover, Child Restraint Seat Tether Anchor
2022-08 → —
|
NGC101 .CVT RHD GEN +9 | — | |
| 64332-0D011-C1 note |
Cover, Child Restraint Seat Tether Anchor
2022-08 → —
|
NGC101 RHD 5F (H,L);NGC101 +12 | — | |
| 73719 — Bracket, Child Restraint Seat Tether Anchor | ||||
| 73719-0D010 |
Bracket, Child Restraint Seat Tether Anchor
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
