Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

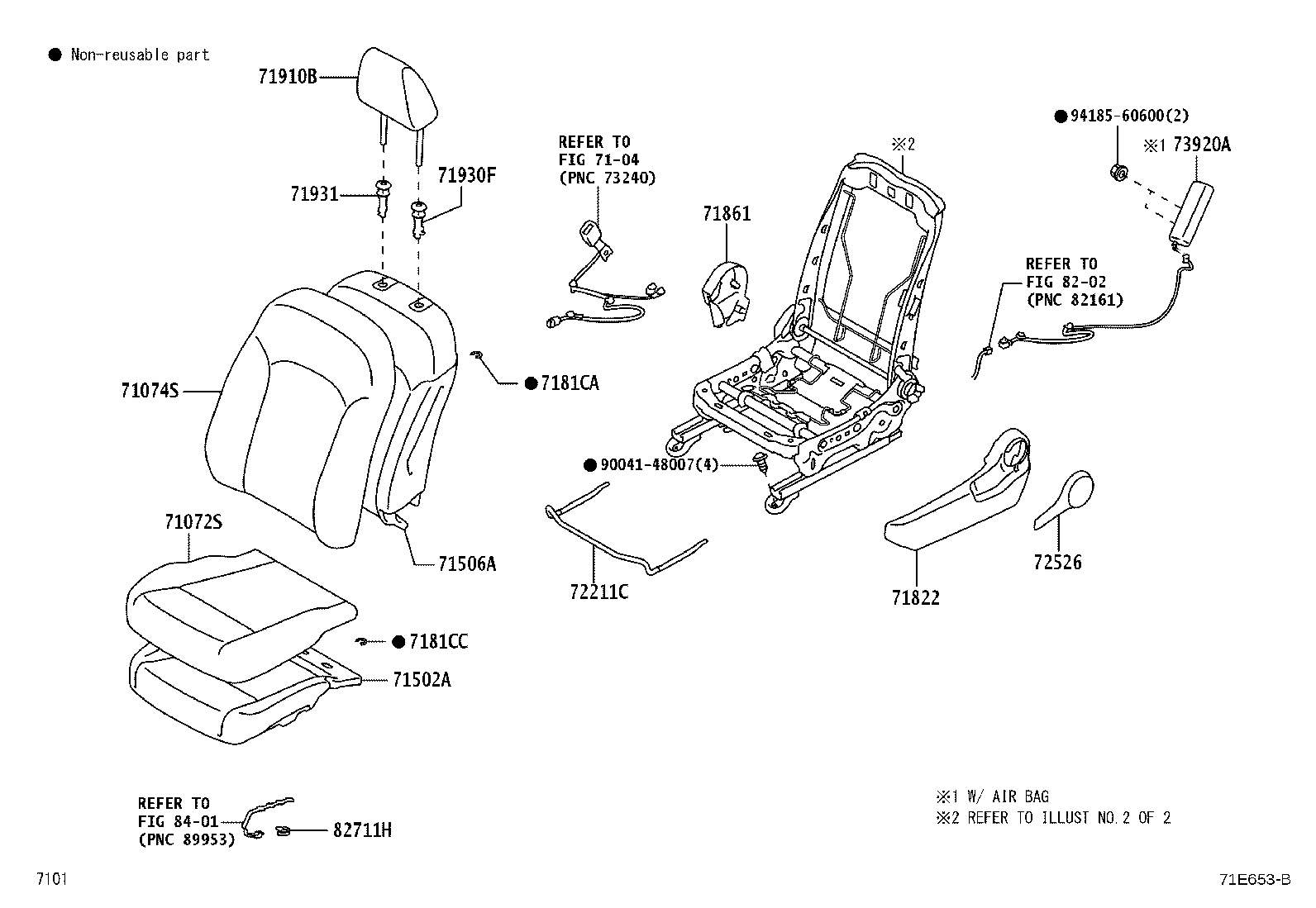

Exploded illustration 71E653B 82711H — CLAMP, WIRING HARNESS (1 parts) 9004148007 — not listed in this catalogue 7181CC — RING, HOG, SMALL (FOR FRONT SEAT CUSHION) (1 parts) 7181CA — RING, HOG, SMALL (FOR FRONT SEATBACK) (1 parts) 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (48 parts) 71502A — PAD SUB-ASSY, FRONT SEAT CUSHION, LH (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (43 parts) 71506A — PAD SUB-ASSY, FRONT SEATBACK, LH (10 parts) 71930F — SUPPORT ASSY, FRONT SEAT HEADREST, LH (3 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (3 parts) 71910B — HEADREST ASSY, FRONT SEAT (18 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (6 parts) 71822 — SHIELD, FRONT SEAT SIDE, LH (16 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (3 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (6 parts) 8401 — not listed in this catalogue 7104 — not listed in this catalogue
71E653B · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
162 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-BZM00-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101,102 LHD M GEN;NGC101,102 +2 —
71072-BZM00-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101,102 LHD M GEN;NGC101,102 +2 —
71072-BZM00-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 5F M GEN;NGC101,102 +2 —
71072-BZM10-D2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC100 —
71072-BZR50-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101,102 LHD H GEN —
71072-BZR50-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101,102 LHD H GEN —
71072-BZR50-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 LHD H GEN —
71072-BZR60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC100 —
71072-BZR60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 L —
71072-BZR70-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT GEN —
71072-BZR70-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD M GEN —
71072-BZR70-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD M GEN —
71072-BZR70-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD M GEN —
71072-BZR70-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD M GEN —
71072-BZR70-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT GEN —
71072-BZR70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71072-BZR70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71072-BZR70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71072-BZR80-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC100;NGC101 RHD H —
71072-BZR80-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71072-BZR80-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71072-BZR80-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC100 —
71072-BZR80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC100 —
71072-BZR80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71072-BZR80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71072-BZR80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC100;NGC101 RHD H —
71072-BZR80-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD CVT H +1 —
71072-BZR80-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD CVT H +1 —
71072-BZR90-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 M GCC —
71072-BZR90-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 M GCC —
71072-BZS00-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 LHD CVT M +1 —
71072-BZS00-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 PHL —
71072-BZS00-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 PHL —
71072-BZS00-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 LHD CVT M +1 —
71072-BZS10-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 CVT L —
71072-BZS10-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 M GCC —
71072-BZS10-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 M GCC —
71072-BZS20-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 5F H;NGC101,102 RHD +2 —
71072-BZS20-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 5F H;NGC101,102 RHD +2 —
71072-BZS20-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 RHD M —
71072-BZS30-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71072-BZS30-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 RHD H —
71072-BZS30-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 RHD H —
71072-BZS30-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71072-BZS40-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-03 → 2023-04 ended
NGC102 M MA —
71072-BZS40-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 M MA —
71072-BZS50-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-03 → 2023-04 ended
NGC102 H MA —
71072-BZS50-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 H MA —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-BZJ30-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 CVT L —
71074-BZJ80-D2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC100 —
71074-BZQ80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101,102 LHD M GEN;NGC101,102 +2 —
71074-BZQ80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT GEN —
71074-BZQ80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD M GEN —
71074-BZQ80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD M GEN —
71074-BZQ80-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101,102 LHD M GEN;NGC101,102 +2 —
71074-BZQ80-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT GEN —
71074-BZQ80-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD M GEN —
71074-BZQ80-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD M GEN —
71074-BZQ80-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 5F M GEN;NGC101,102 +2 —
71074-BZQ80-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71074-BZQ80-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71074-BZQ80-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD M GEN —
71074-BZQ90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC100 —
71074-BZQ90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71074-BZQ90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71074-BZQ90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC100;NGC101 H GEN;NGC102 LHD +2 —
71074-BZQ90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71074-BZQ90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71074-BZQ90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC100 —
71074-BZQ90-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC100;NGC101 H GEN;NGC102 LHD +2 —
71074-BZQ90-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD CVT H +1 —
71074-BZQ90-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 LHD H GEN —
71074-BZQ90-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC102 RHD CVT H +1 —
71074-BZR00-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 LHD L —
71074-BZR00-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC100 —
71074-BZR10-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 CVT L —
71074-BZR20-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 LHD CVT M +1 —
71074-BZR20-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 PHL;NGC102 5F H;NGC101,102 +3 —
71074-BZR20-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 PHL;NGC102 5F H;NGC101,102 +3 —
71074-BZR20-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 LHD CVT M +1 —
71074-BZR20-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101 RHD M —
71074-BZR30-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC101 RHD H —
71074-BZR30-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71074-BZR30-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 RHD CVT H +1 —
71074-BZR30-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC101 RHD H —
71074-BZR40-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 M GCC —
71074-BZR40-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-08 → —
NGC101,102 M GCC —
71074-BZR50-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-03 → 2023-04 ended
NGC102 M MA —
71074-BZR50-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 M MA —
71074-BZR60-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-03 → 2023-04 ended
NGC102 H MA —
71074-BZR60-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-04 → —
NGC102 H MA —
71502A — Pad Sub-assy, Front Seat Cushion, LH
71502-BZ430 Pad Sub-assy, Front Seat Cushion, LH
2022-08 → —
NGC10#,NYC100 THP —
71502-BZ510 Pad Sub-assy, Front Seat Cushion, LH
2023-03 → —
NGC102 MA —
71506A — Pad Sub-assy, Front Seatback, LH
71506-BZ480 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC102 RHD CVT H +1 —
71506-BZ480 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC102 RHD CVT GEN —
71506-BZ480 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC102 RHD M GEN —
71506-BZ480 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC102 RHD CVT GEN —
71506-BZ480 Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC101 N,PHL) H,L;NGC102 H +7 —
71506-BZ490 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC101 CVT L —
71506-BZ490 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC101 LHD CVT M +1 —
71506-BZ490 note Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC101 RHD H —
71506-BZ490 Pad Sub-assy, Front Seatback, LH
2022-08 → —
NGC101 RHD M;NGC102 RHD +3 —
71506-BZ500 Pad Sub-assy, Front Seatback, LH
2023-03 → —
NGC102 MA —
7181CA — Ring, Hog, Small (FOR FRONT SEATBACK)
90468-18008 Ring, Hog, Small (FOR FRONT SEATBACK)
2022-08 → —
NGC10# —
7181CC — Ring, Hog, Small (FOR FRONT SEAT CUSHION)
90468-18008 Ring, Hog, Small (FOR FRONT SEAT CUSHION)
2022-08 → —
NGC10# —
71822 — Shield, Front Seat Side, LH
71812-BZ290-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 LHD H;NGC102 H +4 —
71812-BZ290-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 LHD CVT M +4 —
71812-BZ300-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 PHL —
71812-BZ300-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 LHD CVT M +1 —
71812-BZ300-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101,102 M GCC —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC100 —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 MA;NGC101,102 LHD L;NGC101 +2 —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 RHD CVT H +1 —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 RHD CVT GEN —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 RHD M GEN —
71812-BZ310-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 RHD CVT GEN —
71812-BZ320-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 RHD H —
71812-BZ320-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 M GCC —
71812-BZ320-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 RHD M —
71812-BZ320-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC102 RHD GEN —
71812-BZ320-C0 note Shield, Front Seat Side, LH
2022-08 → 2025-03 ended
NGC101 CVT L —
71861 — Shield, Front Seat Cushion, Inner RH
71862-BZ100-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC101,102 GCC;NGC101 5F M +4 —
71862-BZ100-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC101 5F PHL;NGC102 LHD +6 —
71862-BZ110-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC100 —
71862-BZ110-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC101 RHD M —
71862-BZ110-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC102 RHD;NGC101,102 LHD L;NGC101 +2 —
71862-BZ110-C0 note Shield, Front Seat Cushion, Inner RH
2022-08 → —
NGC102 M GCC —
71910B — Headrest Assy, Front Seat
71910-BZK10-C2 note Headrest Assy, Front Seat
2022-08 → —
NGC100 —
71910-BZK10-C2 note Headrest Assy, Front Seat
2022-08 → —
NGC101,102 L;NGC101,102 M GCC —
71910-BZK10-E2 note Headrest Assy, Front Seat
2022-08 → —
NGC101,102 M GCC —
71910-BZK20-C1 note Headrest Assy, Front Seat
2022-08 → 2023-04 ended
NGC102 5F H;NGC101,102 H +3 —
71910-BZK20-C1 note Headrest Assy, Front Seat
2022-08 → 2023-04 ended
NGC102 RHD CVT H +1 —
71910-BZK20-C3 note Headrest Assy, Front Seat
2023-04 → —
NGC102 RHD CVT H +1 —
71910-BZK20-C3 note Headrest Assy, Front Seat
2023-04 → —
NGC102 5F H;NGC101,102 H +3 —
71910-BZK20-E2 note Headrest Assy, Front Seat
2022-08 → —
NGC101 5F M GEN;NGC101,102 +5 —
71910-BZK30-C0 note Headrest Assy, Front Seat
2022-08 → 2023-04 ended
NGC100 —
71910-BZK30-C0 note Headrest Assy, Front Seat
2022-08 → 2023-04 ended
NGC100;NGC101,102 CVT H GEN —
71910-BZK30-C5 note Headrest Assy, Front Seat
2023-04 → —
NGC100;NGC101,102 CVT H GEN —
71910-BZK30-C5 note Headrest Assy, Front Seat
2023-04 → —
NGC100 —
71910-BZK30-E1 note Headrest Assy, Front Seat
2022-08 → —
NGC101 LHD H GEN;NGC102 +4 —
71910-BZK40-C1 note Headrest Assy, Front Seat
2023-03 → 2023-04 ended
NGC102 M MA —
71910-BZK40-C3 note Headrest Assy, Front Seat
2023-04 → —
NGC102 M MA —
71910-BZK50-C0 note Headrest Assy, Front Seat
2023-03 → 2023-04 ended
NGC102 H MA —
71910-BZK50-C2 note Headrest Assy, Front Seat
2023-04 → —
NGC102 H MA —
71910-BZK90-D1 note Headrest Assy, Front Seat
2022-08 → —
NGC100 —
71930F — Support Assy, Front Seat Headrest, LH
71930-BZ110-C0 note Support Assy, Front Seat Headrest, LH
2022-08 → —
NGC100 —
71930-BZ110-C0 note Support Assy, Front Seat Headrest, LH
2022-08 → —
NGC101 RHD M;NGC101,102 GCC;NGC101 +6 —
71930-BZ110-C0 note Support Assy, Front Seat Headrest, LH
2022-08 → —
NGC101 VT 5F M +9 —
71931 — Support, Front Seat Headrest
71931-BZ120-C0 note Support, Front Seat Headrest
2022-08 → —
NGC100 —
71931-BZ120-C0 note Support, Front Seat Headrest
2022-08 → —
NGC101 VT 5F M +9 —
71931-BZ120-C0 note Support, Front Seat Headrest
2022-08 → —
NGC101 RHD M;NGC101,102 GCC;NGC101 +6 —
72211C — Handle, Seat Track Adjusting
72211-BZ180 Handle, Seat Track Adjusting
2022-08 → —
NGC10# —
72526 — Handle, Reclining Adjuster Release, LH
72526-BZ120-C0 note Handle, Reclining Adjuster Release, LH
2022-08 → —
NGC100 —
72526-BZ120-C0 note Handle, Reclining Adjuster Release, LH
2022-08 → —
NGC101 RHD M;NGC101,102 GCC;NGC101 +6 —
72526-BZ120-C0 note Handle, Reclining Adjuster Release, LH
2022-08 → —
NGC101 VT 5F M +9 —
73920A — Airbag Assy, Front Seat, LH
73920-BZ070 Airbag Assy, Front Seat, LH
2022-08 → —
NGC101 N,PHL) H,L;NGC102 H +7 —
73920-BZ070 note Airbag Assy, Front Seat, LH
2022-08 → —
NGC102 RHD CVT H +1 —
73920-BZ070 note Airbag Assy, Front Seat, LH
2022-08 → —
NGC102 RHD CVT GEN —
73920-BZ070 note Airbag Assy, Front Seat, LH
2022-08 → —
NGC102 RHD M GEN —
73920-BZ070 note Airbag Assy, Front Seat, LH
2022-08 → —
NGC102 RHD CVT GEN —
73920-BZ120 Airbag Assy, Front Seat, LH
2023-03 → —
NGC102 MA —
82711H — Clamp, Wiring Harness
82711-1E360 Clamp, Wiring Harness
2022-08 → —
NGC10# RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
