Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

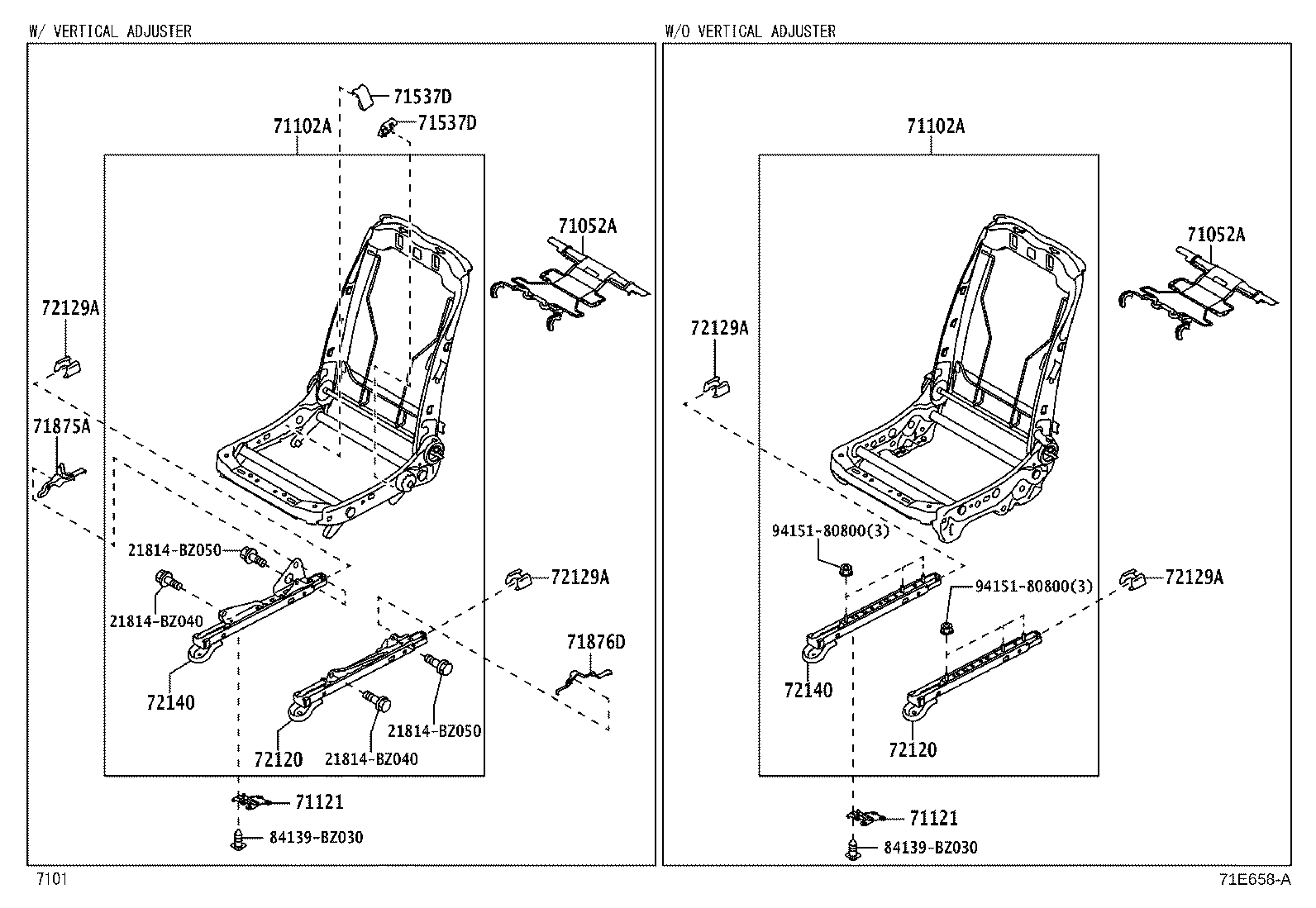

Exploded illustration 71E658A 21814BZ040 — not listed in this catalogue 21814BZ050 — not listed in this catalogue 21814BZ040 — not listed in this catalogue 21814BZ050 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 71102A — SEAT SUB-ASSY, FRONT LH (4 parts) 71102A — SEAT SUB-ASSY, FRONT LH (4 parts) 71537D — PROTECTOR, FRONT SEAT CUSHION EDGE, LH (1 parts) 71537D — PROTECTOR, FRONT SEAT CUSHION EDGE, LH (1 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (2 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (1 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (1 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (1 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (1 parts) 71121 — BRACKET, FRONT SEAT CUSHION, RH (1 parts) 71121 — BRACKET, FRONT SEAT CUSHION, RH (1 parts) 71876D — COVER, RECLINING ADJUSTER OUTSIDE, LH (2 parts) 72120 — TRACK ASSY, FRONT SEAT, OUTER LH (3 parts) 72140 — TRACK ASSY, LH SEAT, INNER (3 parts) 72120 — TRACK ASSY, FRONT SEAT, OUTER LH (3 parts) 72140 — TRACK ASSY, LH SEAT, INNER (3 parts) 84139BZ030 — not listed in this catalogue 84139BZ030 — not listed in this catalogue
71E658A · 18 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-0D160 Spring Sub-assy, Front Seat Cushion, LH
2022-08 → —
NGC10# —
71102A — Seat Sub-assy, Front LH
71102-BZ010 Seat Sub-assy, Front LH
2022-08 → —
NGC101,102,NYC100 LHD (H,M) —
71102-BZ020 Seat Sub-assy, Front LH
2022-08 → —
NGC101,102 LHD L;NGC10#,NYC100 RHD +1 —
71102-BZ020 note Seat Sub-assy, Front LH
2022-08 → —
NGC102 M GCC —
71102-BZ050 Seat Sub-assy, Front LH
2023-03 → —
NGC102 MA —
71121 — Bracket, Front Seat Cushion, RH
71122-BZ080 Bracket, Front Seat Cushion, RH
2022-08 → —
NGC10# —
71537D — Protector, Front Seat Cushion Edge, LH
71537-0D400 Protector, Front Seat Cushion Edge, LH
2022-08 → —
NGC10# —
71875A — Cover, Reclining Adjuster Inside, RH
71876-BZ140-C0 note Cover, Reclining Adjuster Inside, RH
2022-08 → —
NGC101,102 GCC;NGC101 5F M +4 —
71876-BZ140-C0 note Cover, Reclining Adjuster Inside, RH
2022-08 → —
NGC101 5F PHL;NGC102 LHD +6 —
71876D — Cover, Reclining Adjuster Outside, LH
71875-BZ170-C0 note Cover, Reclining Adjuster Outside, LH
2022-08 → —
NGC101,102 GCC;NGC101 5F M +4 —
71875-BZ170-C0 note Cover, Reclining Adjuster Outside, LH
2022-08 → —
NGC101 5F PHL;NGC102 LHD +6 —
72120 — Track Assy, Front Seat, Outer LH
72110-BZ350 Track Assy, Front Seat, Outer LH
2022-08 → —
NGC10# RHD;NGC101,102 LHD L —
72110-BZ350 note Track Assy, Front Seat, Outer LH
2022-08 → —
NGC102 M GCC —
72120-BZ310 Track Assy, Front Seat, Outer LH
2022-08 → —
NGC101,102,NYC100 LHD (H,M) —
72129A — Protector, Seat Track Lower Rail, NO.2
72129-BZ070 Protector, Seat Track Lower Rail, NO.2
2022-08 → —
NGC10# —
72140 — Track Assy, LH Seat, Inner
72130-BZ370 Track Assy, LH Seat, Inner
2022-08 → —
NGC10# RHD;NGC101,102 LHD L —
72130-BZ370 note Track Assy, LH Seat, Inner
2022-08 → —
NGC102 M GCC —
72140-BZ360 Track Assy, LH Seat, Inner
2022-08 → —
NGC101,102,NYC100 LHD (H,M) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
