Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

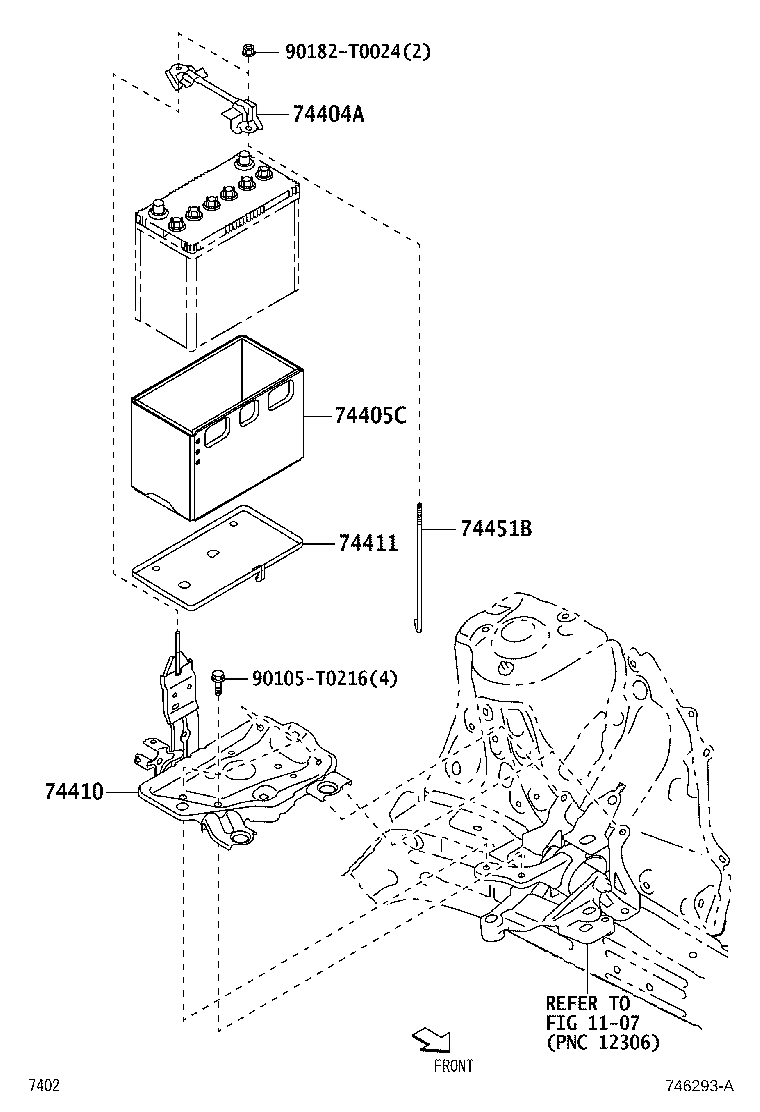

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-BZ190 |
Clamp Sub-assy, Battery
2022-08 → —
|
NGC10# | — | |
| 74405C — Cover Sub-assy,Battery | ||||
| 74405-BZ110 |
Cover Sub-assy,Battery
2022-08 → —
|
NGC100 | — | |
| 74405-BZ130 |
Cover Sub-assy,Battery
2022-08 → —
|
NGC101,102 | — | |
| 74410 — Carrier Assy, Battery | ||||
| 74410-BZ080 |
Carrier Assy, Battery
2022-08 → —
|
NGC10# | — | |
| 74411 — Carrier, Battery | ||||
| 74411-BZ160 |
Carrier, Battery
2022-08 → —
|
NGC101,102 | — | |
| 74411-BZ210 |
Carrier, Battery
2022-08 → —
|
NGC100 | — | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-BZ150 |
Bolt, Battery Clamp
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
