Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

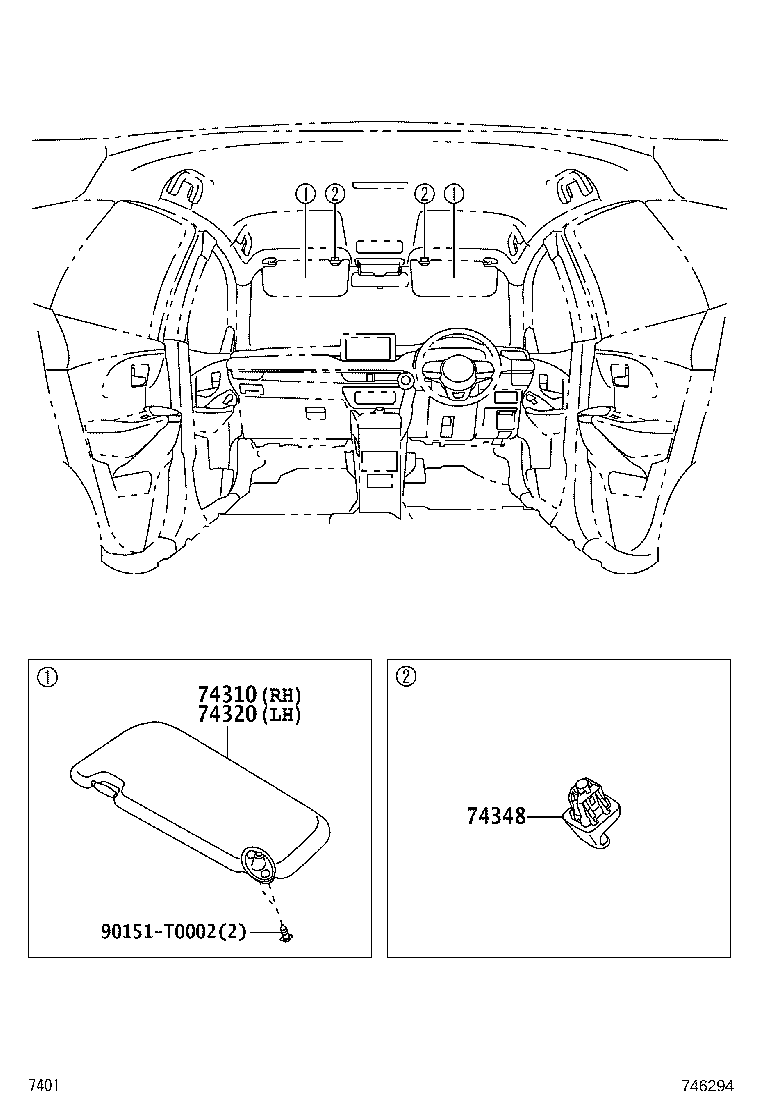

Exploded illustration 746294 74310 — VISOR ASSY, RH (69 parts) 74320 — VISOR ASSY, LH (39 parts) 74348 — HOLDER, VISOR (3 parts) 90151T0002 — not listed in this catalogue
746294 · 3 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
111 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-0DF00-B1 note Visor Assy, RH
2023-03 → —
NGC102 MA —
74310-BZC30-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 RHD CVT GEN —
74310-BZC30-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC100 —
74310-BZC31-B0 note Visor Assy, RH
2023-12 → —
NGC100 —
74310-BZC31-B0 note Visor Assy, RH
2023-12 → —
NGC102 RHD CVT GEN —
74310-BZC40-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC100 —
74310-BZC40-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 RHD (H,M) GEN —
74310-BZC40-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101 RHD M;NGC102 RHD +2 —
74310-BZC41-B0 note Visor Assy, RH
2023-12 → —
NGC101,102 RHD (H,M) GEN —
74310-BZC41-B0 note Visor Assy, RH
2023-12 → —
NGC100 —
74310-BZC41-E0 note Visor Assy, RH
2023-12 → —
NGC101 RHD M;NGC102 RHD +2 —
74310-BZC50-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101 CVT L —
74310-BZC51-B0 note Visor Assy, RH
2023-12 → —
NGC101 CVT L —
74310-BZC60-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 LHD —
74310-BZC60-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 GCC;NGC101 5F M +4 —
74310-BZC61-B0 note Visor Assy, RH
2023-12 → —
NGC101,102 LHD —
74310-BZC61-E0 note Visor Assy, RH
2023-12 → —
NGC101,102 GCC;NGC101 5F M +4 —
74310-BZC70-B0 note Visor Assy, RH
2023-04 → 2023-11 ended
NGC102 LHD (H,M) GEN —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101 LHD CVT M +1 —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-B0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC101,102 GCC —
74310-BZC70-E0 note Visor Assy, RH
2022-08 → 2023-11 ended
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 LHD (H,M) GEN —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC101,102 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC101 LHD CVT M +1 —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC101,102 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC101 GCC —
74310-BZC71-B0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC101,102 GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC101,102 GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 M GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC102 GCC —
74310-BZC71-E0 note Visor Assy, RH
2023-12 → —
NGC101 GCC —
74320 — Visor Assy, LH
74320-0DE40-B1 note Visor Assy, LH
2023-03 → —
NGC102 MA —
74320-BZC30-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC101,102 RHD GEN —
74320-BZC30-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC100 —
74320-BZC30-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC101 RHD M;NGC102 RHD +2 —
74320-BZC31-B0 note Visor Assy, LH
2023-12 → —
NGC101,102 RHD GEN —
74320-BZC31-B0 note Visor Assy, LH
2023-12 → —
NGC100 —
74320-BZC31-E0 note Visor Assy, LH
2023-12 → —
NGC101 RHD M;NGC102 RHD +2 —
74320-BZC60-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 CVT L;NGC101,102 LHD +1 —
74320-BZC60-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 5F L —
74320-BZC60-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC101,102 GCC;NGC101 5F M +4 —
74320-BZC61-B0 note Visor Assy, LH
2023-12 → —
NGC102 5F L —
74320-BZC61-B0 note Visor Assy, LH
2023-12 → —
NGC102 CVT L;NGC101,102 LHD +1 —
74320-BZC61-E0 note Visor Assy, LH
2023-12 → —
NGC101,102 GCC;NGC101 5F M +4 —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-B0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC101,102 5F L —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC70-E0 note Visor Assy, LH
2022-08 → 2023-11 ended
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-B0 note Visor Assy, LH
2023-12 → —
NGC101,102 5F L —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74320-BZC71-E0 note Visor Assy, LH
2023-12 → —
NGC102 M GCC —
74348 — Holder, Visor
74348-0D130-B1 note Holder, Visor
2022-08 → —
NGC100 —
74348-0D130-B1 note Holder, Visor
2022-08 → —
NGC101,102 —
74348-0D130-E1 note Holder, Visor
2022-08 → —
NGC101 .CVT RHD GEN +9 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
