Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

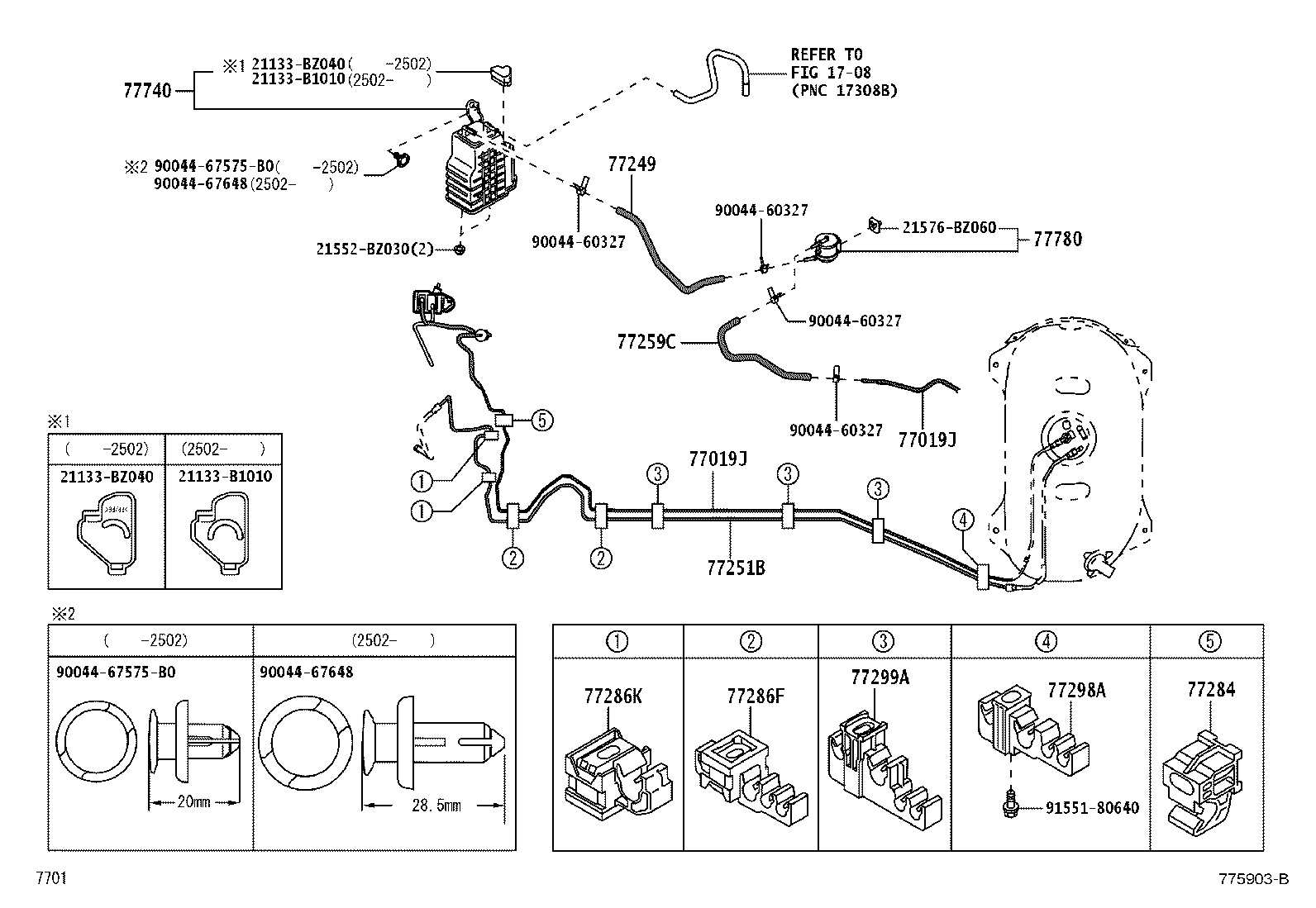

Exploded illustration 775903B 77299A — CLAMP, FUEL TUBE, NO.5 (1 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (1 parts) 77284 — CLAMP, FUEL TUBE (1 parts) 9155180640 — not listed in this catalogue 9004467575B0 — not listed in this catalogue 77249 — HOSE, FUEL EMISSION (2 parts) 77740 — CANISTER ASSY, CHARCOAL (7 parts) 21133BZ040 — not listed in this catalogue 21552BZ030 — not listed in this catalogue 9004460327 — not listed in this catalogue 9004460327 — not listed in this catalogue 9004460327 — not listed in this catalogue 9004460327 — not listed in this catalogue 77019J — TUBE SUB-ASSY, FUEL TANK TO CANISTER (2 parts) 77019J — TUBE SUB-ASSY, FUEL TANK TO CANISTER (2 parts) 77259C — HOSE, FUEL (1 parts) 77251B — TUBE, FUEL MAIN (3 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (1 parts) 77780 — VALVE ASSY, PURGE CONTROL (1 parts) 21576BZ060 — not listed in this catalogue 77286K — CLAMP, FUEL TUBE, NO.2 (1 parts) 1708 — not listed in this catalogue 21133B1010 — not listed in this catalogue 21133B1010 — not listed in this catalogue 9004467648 — not listed in this catalogue 9004467648 — not listed in this catalogue 9004467575B0 — not listed in this catalogue 21133BZ040 — not listed in this catalogue
775903B · 12 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
77019J — Tube Sub-assy, Fuel Tank TO Canister
77263-BZ280 Tube Sub-assy, Fuel Tank TO Canister
2022-08 → —
NGC10# RHD —
77263-BZ350 Tube Sub-assy, Fuel Tank TO Canister
2022-08 → —
NGC101,102 LHD —
77249 — Hose, Fuel Emission
77249-BZ050 Hose, Fuel Emission
2023-03 → —
NGC102 MA —
77249-BZ060 Hose, Fuel Emission
2022-08 → —
NGC10#,NYC100 THP —
77251B — Tube, Fuel Main
77251-BZ420 Tube, Fuel Main
2022-08 → —
NGC101,102 RHD —
77251-BZ430 Tube, Fuel Main
2022-08 → —
NGC101,102 LHD —
77251-BZ500 Tube, Fuel Main
2022-08 → —
NGC100 —
77259C — Hose, Fuel
77259-BZ150 Hose, Fuel
2022-08 → —
NGC10# —
77284 — Clamp, Fuel Tube
47372-BZ020 Clamp, Fuel Tube
2022-08 → —
NGC10# RHD —
77286F — Clamp, Fuel Tube, NO.2
77286-BZ070 Clamp, Fuel Tube, NO.2
2022-08 → —
NGC10# —
77286K — Clamp, Fuel Tube, NO.2
77286-BZ010 Clamp, Fuel Tube, NO.2
2022-08 → —
NGC10# —
77298A — Clamp, Fuel Tube, NO.4
77298-BZ010 Clamp, Fuel Tube, NO.4
2022-08 → —
NGC10# —
77299A — Clamp, Fuel Tube, NO.5
77299-BZ010 Clamp, Fuel Tube, NO.5
2022-08 → —
NGC10# —
77740 — Canister Assy, Charcoal
77740-BZ140 Canister Assy, Charcoal
2022-08 → —
NYC100 THP;NGC101 5F L;NGC102 +2 —
77740-BZ140 note Canister Assy, Charcoal
2022-08 → —
NGC101 LHD M GEN —
77740-BZ140 note Canister Assy, Charcoal
2022-08 → —
NGC102 5F L;NGC102 LHD +2 —
77740-BZ140 note Canister Assy, Charcoal
2022-08 → —
NGC102 5F L —
77740-BZ140 note Canister Assy, Charcoal
2022-08 → —
NGC102 LHD (H,M) GEN —
77740-BZ150 Canister Assy, Charcoal
2023-03 → 2025-02 ended
NGC102 MA —
77740-BZ160 Canister Assy, Charcoal
2022-08 → —
NGC101 5F M;NGC102 5F +4 —
77780 — Valve Assy, Purge Control
17660-BZ070 Valve Assy, Purge Control
2022-08 → —
NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
