Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

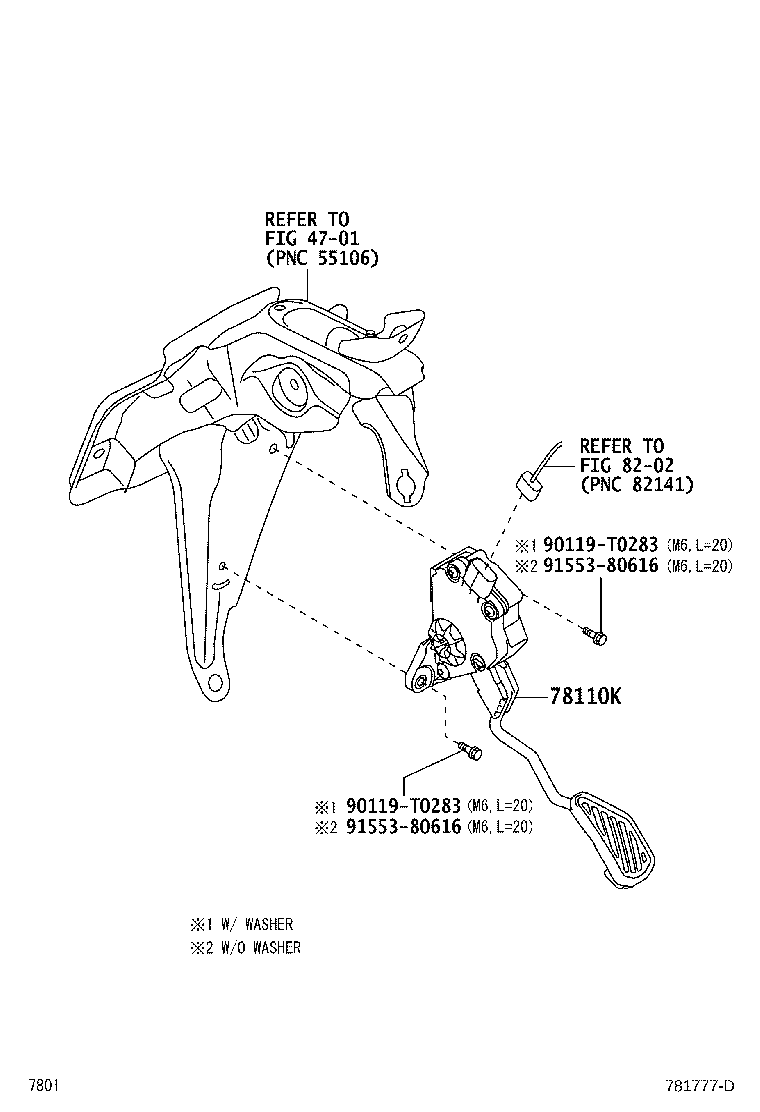

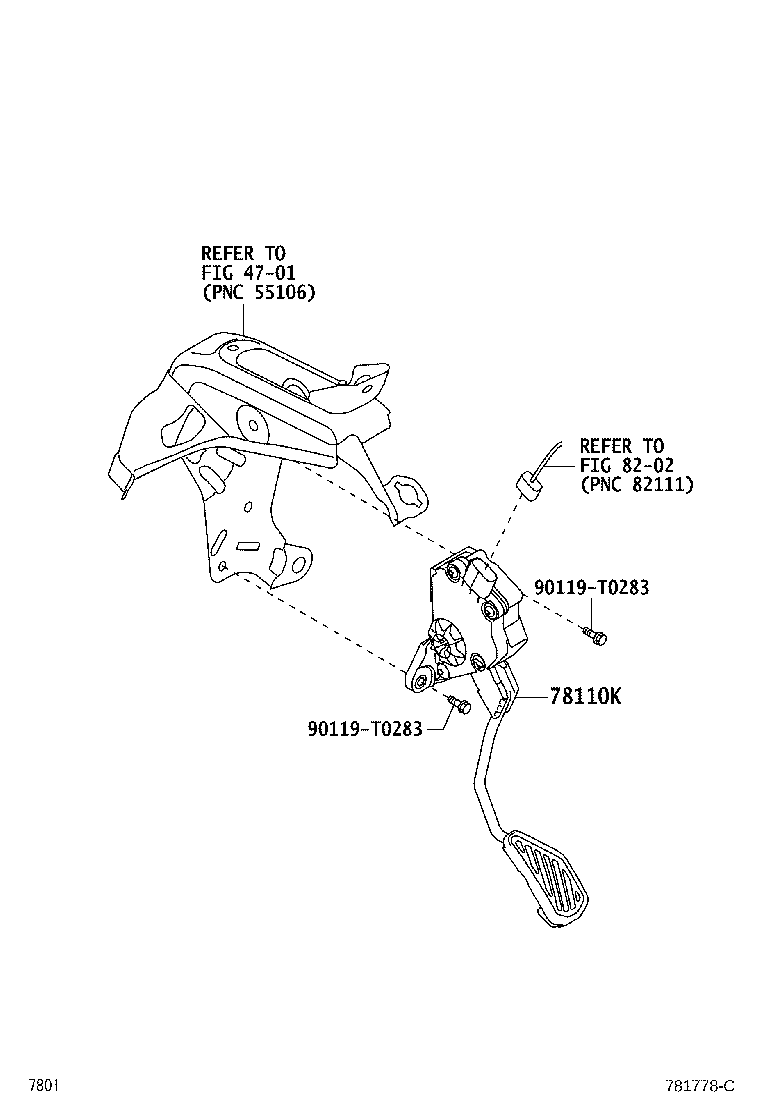

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-BZ160 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-08 → —
|
NGC10# RHD | — | |
| 78110-BZ170 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
