Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

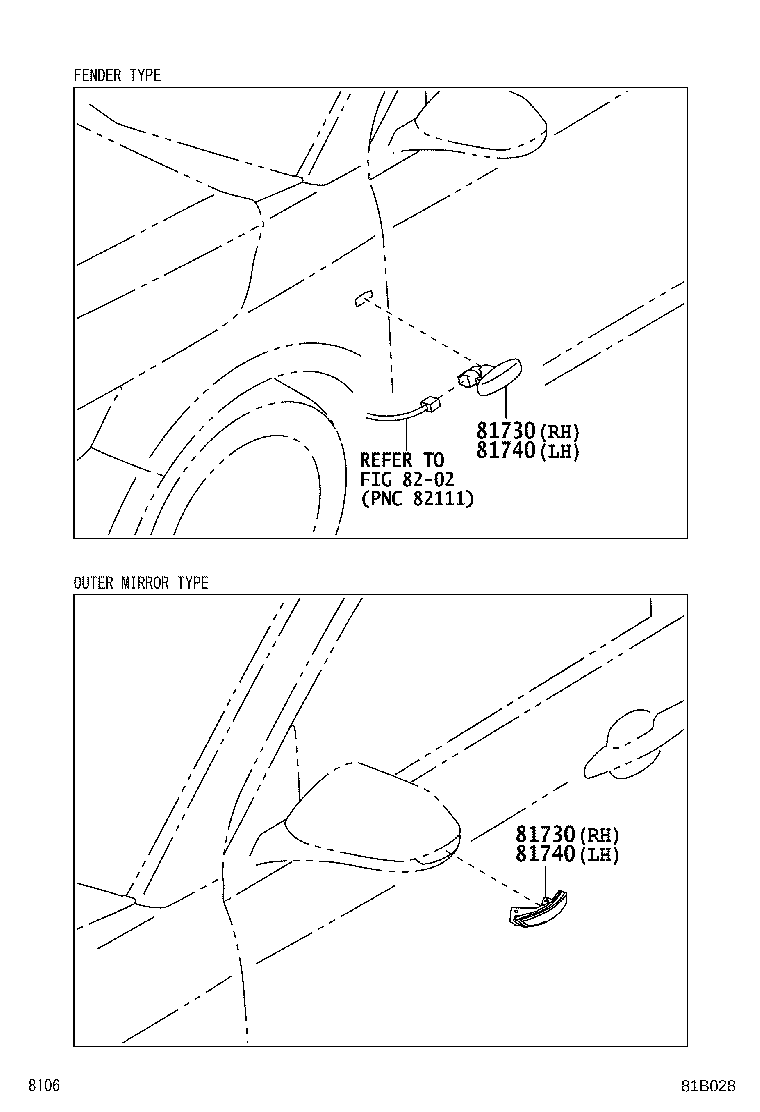

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81730 — Lamp Assy, Side Turn Signal, RH | ||||
| 81730-02170 note |
Lamp Assy, Side Turn Signal, RH
2022-08 → —
|
NGC101,102 H GCC;NGC10# (H,M) +1 | — | |
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, RH
2022-08 → —
|
NGC101,102 L;NGC101,102 M GCC | — | |
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, RH
2022-08 → —
|
NYC100 LHD GEN;NGC102 LHD +2 | — | |
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, RH
2022-08 → —
|
NGC100 | — | |
| 81740 — Lamp Assy, Side Turn Signal, LH | ||||
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, LH
2022-08 → —
|
NGC101,102 L;NGC101,102 M GCC | — | |
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, LH
2022-08 → —
|
NYC100 LHD GEN;NGC102 LHD +2 | — | |
| 81730-0D121 note |
Lamp Assy, Side Turn Signal, LH
2022-08 → —
|
NGC100 | — | |
| 81740-02060 note |
Lamp Assy, Side Turn Signal, LH
2022-08 → —
|
NGC101,102 H GCC;NGC10# (H,M) +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
