Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

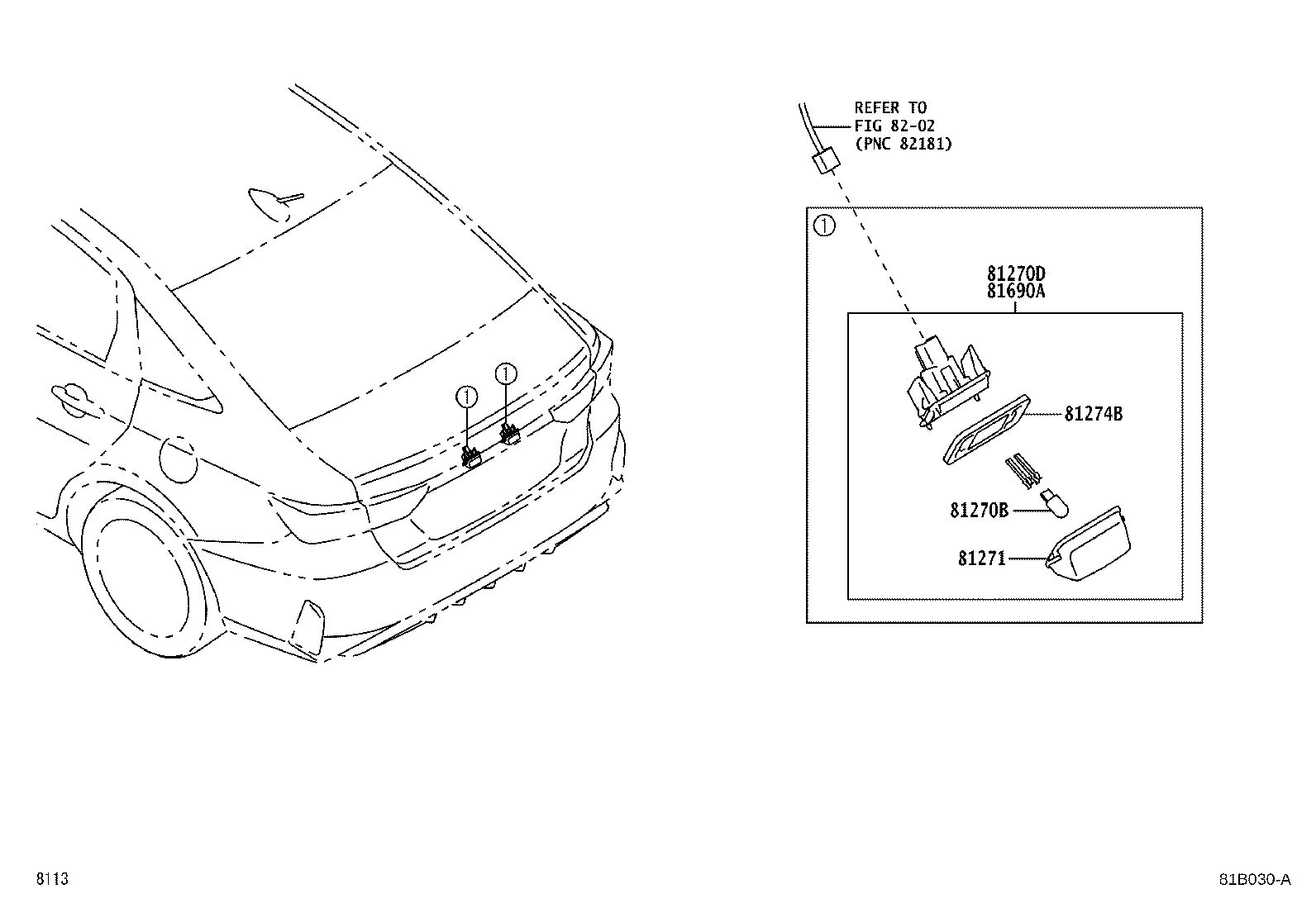

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81270B — Bulb (FOR LICENSE PLATE LAMP) | ||||
| 90981-11013 note |
Bulb (FOR LICENSE PLATE LAMP)
2022-08 → —
|
NGC10# | — | |
| 81270D — Lamp Assy, License Plate, RH | ||||
| 81270-0D120 |
Lamp Assy, License Plate, RH
2022-08 → —
|
NGC10# | — | |
| 81271 — Lens, License Plate Lamp | ||||
| 81271-0D120 |
Lens, License Plate Lamp
2022-08 → —
|
NGC10# | — | |
| 81274B — Packing, License Plate Lamp | ||||
| 81274-02130 |
Packing, License Plate Lamp
2022-08 → —
|
NGC10# | — | |
| 81690A — Lamp Assy, License Plate, LH | ||||
| 81270-0D120 |
Lamp Assy, License Plate, LH
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
