Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

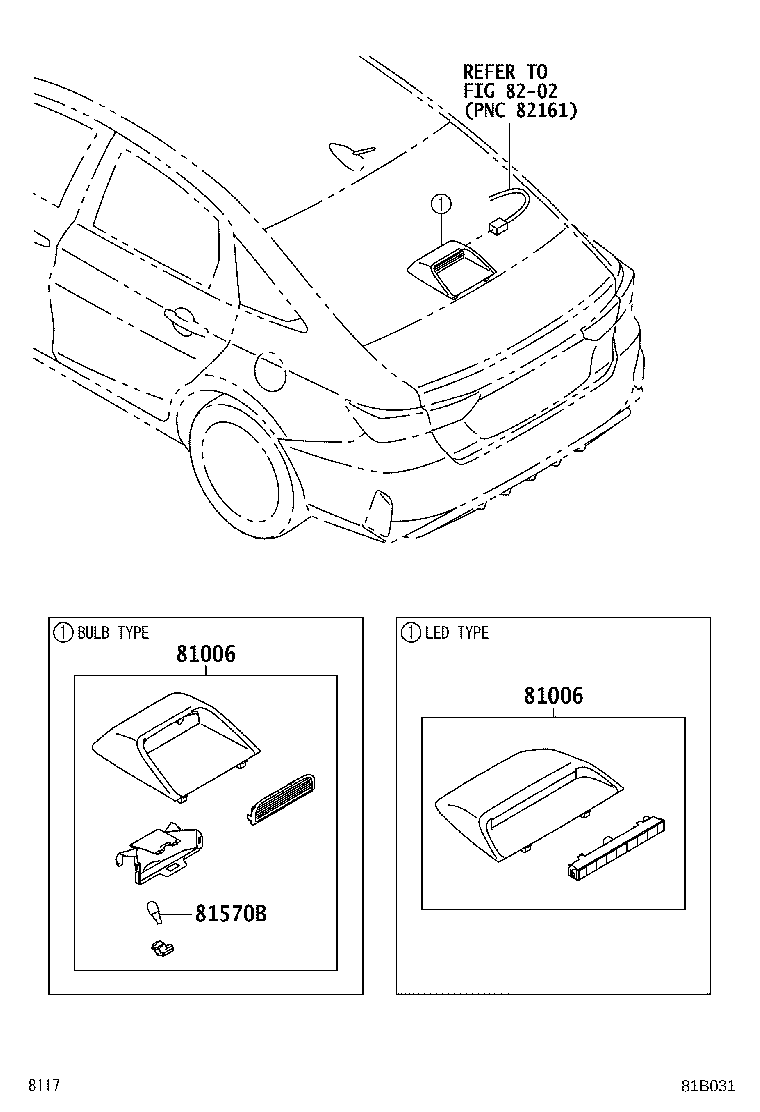

| 81006 — Lamp Set, Stop Center | ||||
| 81006-BZ030-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC101,102 L;NGC101,102 PHL | — | |
| 81006-BZ030-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC101,102 GCC;NGC102 RHD M +1 | — | |
| 81006-BZ030-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 81006-BZ030-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 81006-BZ030-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 81006-BZ040-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC100 | — | |
| 81006-BZ040-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC101 RHD M;NGC101 5F +5 | — | |
| 81006-BZ040-C0 note |
Lamp Set, Stop Center
2022-08 → —
|
NGC102 N MA;NGC101,102 RHD +9 | — | |
| 81570B — Bulb (FOR CENTER STOP LAMP) | ||||
| 90981-TB002 note |
Bulb (FOR CENTER STOP LAMP)
2022-08 → —
|
NGC101,102 L;NGC101,102 GCC,PHL;NGC102 RHD +2 | — | |
| 90981-TB002 note |
Bulb (FOR CENTER STOP LAMP)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90981-TB002 note |
Bulb (FOR CENTER STOP LAMP)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90981-TB002 note |
Bulb (FOR CENTER STOP LAMP)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
