Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

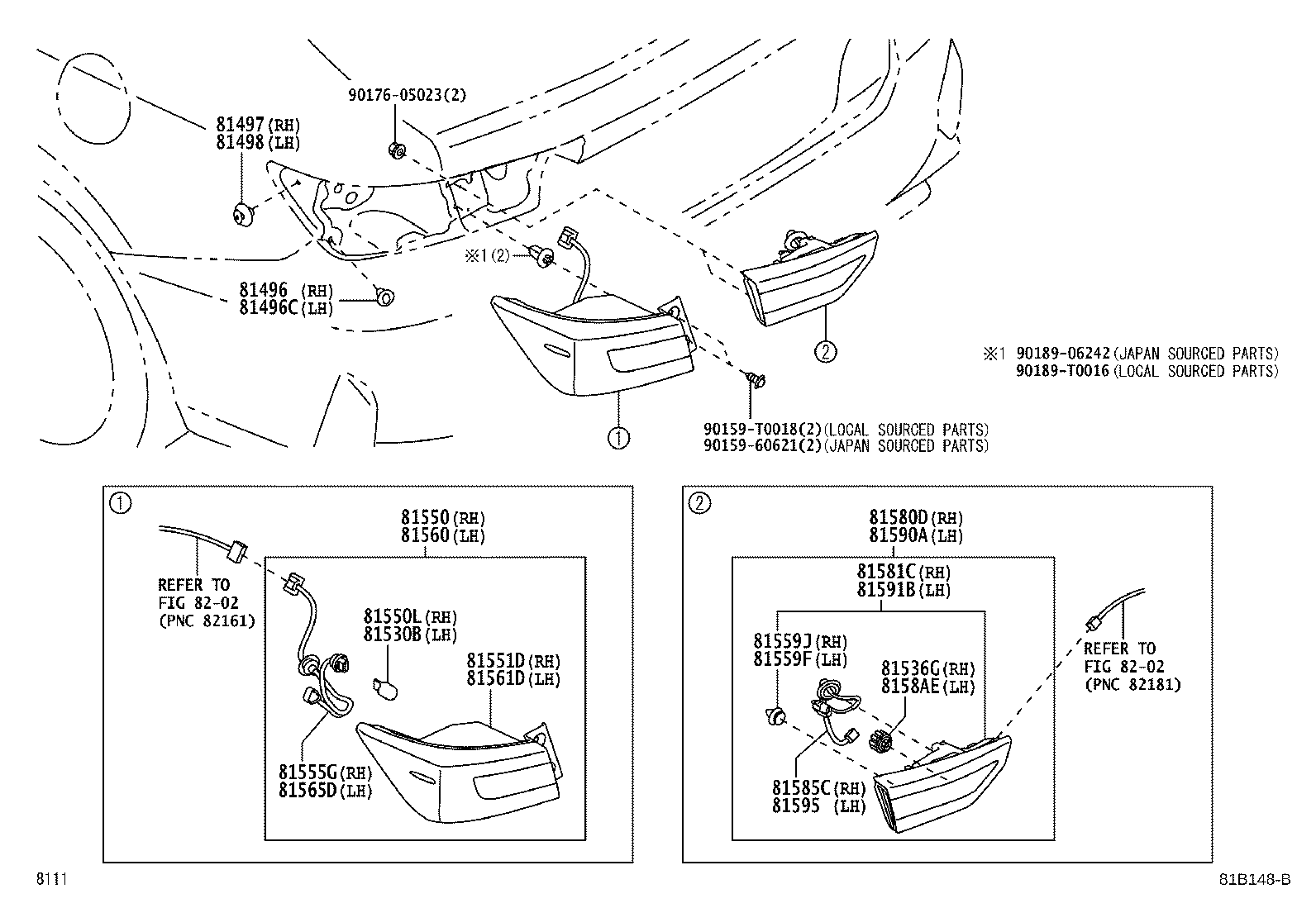

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81496 — Guide, Rear Combination Lamp | ||||
| 81496-0D040 |
Guide, Rear Combination Lamp
2022-08 → —
|
NGC10# | — | |
| 81496C — Guide, Rear Combination Lamp, NO.2 | ||||
| 81496-0D040 |
Guide, Rear Combination Lamp, NO.2
2022-08 → —
|
NGC10# | — | |
| 81497 — Cover, Rear Combination Lamp, RH | ||||
| 81496-60010 note |
Cover, Rear Combination Lamp, RH
2022-08 → —
|
NGC10# | — | |
| 81497-0D070 note |
Cover, Rear Combination Lamp, RH
2022-08 → —
|
NGC10# | — | |
| 81498 — Cover, Rear Combination Lamp, LH | ||||
| 81496-60010 note |
Cover, Rear Combination Lamp, LH
2022-08 → —
|
NGC10# | — | |
| 81497-0D070 note |
Cover, Rear Combination Lamp, LH
2022-08 → —
|
NGC10# | — | |
| 81530B — Bulb, Rear Turn Signal Lamp | ||||
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC10# L,M;NGC102 5F H;NGC101,102 +2 | — | |
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81536G — Led, Back-up Lamp | ||||
| 8158A-12260 |
Led, Back-up Lamp
2022-08 → —
|
NGC102 M MA;NGC102 LHD +6 | — | |
| 8158A-12260 note |
Led, Back-up Lamp
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 8158A-12260 note |
Led, Back-up Lamp
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-BZ620 |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81550-BZ620 note |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81550-BZ620 note |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81550-BZ640 |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81550-BZ660 note |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC100 | — | |
| 81550-BZ660 note |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC100 | — | |
| 81550-BZ660 |
Lamp Assy, Rear Combination, RH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81550-BZ670 |
Lamp Assy, Rear Combination, RH
2023-03 → —
|
NGC102 M MA | — | |
| 81550-BZ680 |
Lamp Assy, Rear Combination, RH
2023-03 → —
|
NGC102 H MA | — | |
| 81550L — Bulb, Rear Turn Signal Lamp | ||||
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC10# L,M;NGC102 5F H;NGC101,102 +2 | — | |
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 90049-51179 note |
Bulb, Rear Turn Signal Lamp
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81551D — Lens & Body, Rear Combination Lamp, RH | ||||
| 81551-BZ490 |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81551-BZ490 note |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81551-BZ490 note |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81551-BZ500 |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81551-BZ500 note |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81551-BZ500 note |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81551-BZ510 |
Lens & Body, Rear Combination Lamp, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81551-BZ540 |
Lens & Body, Rear Combination Lamp, RH
2023-03 → —
|
NGC102 H MA | — | |
| 81551-BZ550 |
Lens & Body, Rear Combination Lamp, RH
2023-03 → —
|
NGC102 M MA | — | |
| 81555G — Cord, Rear Combination Lamp, RH | ||||
| 81555-BZ250 note |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81555-BZ250 |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC101,102 CVT H (GEN,MA) | — | |
| 81555-BZ250 note |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81555-BZ260 |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC102 M MA;NGC102 LHD +6 | — | |
| 81555-BZ260 note |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81555-BZ260 note |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81555-BZ270 |
Cord, Rear Combination Lamp, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81559F — Clip, RR Combination Lamp, LH | ||||
| 90044-67500 |
Clip, RR Combination Lamp, LH
2022-08 → —
|
NGC10# | — | |
| 81559J — Clip, RR Combination Lamp, RH | ||||
| 90044-67500 |
Clip, RR Combination Lamp, RH
2022-08 → —
|
NGC10# | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-BZ620 |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81560-BZ620 note |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81560-BZ620 note |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81560-BZ640 |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81560-BZ660 |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81560-BZ660 note |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC100 | — | |
| 81560-BZ660 note |
Lamp Assy, Rear Combination, LH
2022-08 → —
|
NGC100 | — | |
| 81560-BZ670 |
Lamp Assy, Rear Combination, LH
2023-03 → —
|
NGC102 M MA | — | |
| 81560-BZ680 |
Lamp Assy, Rear Combination, LH
2023-03 → —
|
NGC102 H MA | — | |
| 81561D — Lens & Body, Rear Combination Lamp, LH | ||||
| 81561-BZ490 |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81561-BZ490 note |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81561-BZ490 note |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81561-BZ500 |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81561-BZ500 note |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81561-BZ500 note |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81561-BZ510 |
Lens & Body, Rear Combination Lamp, LH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81561-BZ540 |
Lens & Body, Rear Combination Lamp, LH
2023-03 → —
|
NGC102 H MA | — | |
| 81561-BZ550 |
Lens & Body, Rear Combination Lamp, LH
2023-03 → —
|
NGC102 M MA | — | |
| 81565D — Cord, Rear Combination Lamp, LH | ||||
| 81555-BZ250 |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC101,102 CVT H (GEN,MA) | — | |
| 81555-BZ250 note |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81555-BZ250 note |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81555-BZ260 note |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81555-BZ260 note |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81555-BZ260 |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC102 M MA;NGC102 LHD +6 | — | |
| 81555-BZ270 |
Cord, Rear Combination Lamp, LH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81580D — Lamp Assy, Rear, RH | ||||
| 81580-BZ220 note |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81580-BZ220 note |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81580-BZ220 |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81580-BZ240 |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81580-BZ260 |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81580-BZ260 note |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC100 | — | |
| 81580-BZ260 note |
Lamp Assy, Rear, RH
2022-08 → —
|
NGC100 | — | |
| 81580-BZ270 |
Lamp Assy, Rear, RH
2023-03 → —
|
NGC102 M MA | — | |
| 81580-BZ280 |
Lamp Assy, Rear, RH
2023-03 → —
|
NGC102 H MA | — | |
| 81581C — Lens And Body, Rear Lamp, RH | ||||
| 81581-BZ090 |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81581-BZ090 note |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81581-BZ090 note |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81581-BZ100 note |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81581-BZ100 note |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81581-BZ100 |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC102 LHD M GEN;NGC100,101 +4 | — | |
| 81581-BZ110 |
Lens And Body, Rear Lamp, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 81581-BZ130 |
Lens And Body, Rear Lamp, RH
2023-03 → —
|
NGC102 H MA | — | |
| 81581-BZ140 |
Lens And Body, Rear Lamp, RH
2023-03 → —
|
NGC102 M MA | — | |
| 81585C — Socket & Wire, Rear Lamp, RH | ||||
| 81585-BZ050 |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC101,102 CVT H (GEN,MA) | — | |
| 81585-BZ050 note |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81585-BZ050 note |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC100 | — | |
| 81585-BZ060 |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC102 M MA;NGC102 LHD +6 | — | |
| 81585-BZ060 note |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81585-BZ060 note |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81585-BZ070 |
Socket & Wire, Rear Lamp, RH
2022-08 → —
|
NGC101 ,PHL) L;NGC102 CVT +8 | — | |
| 8158AE — Led, Back-up Lamp | ||||
| 8158A-12260 |
Led, Back-up Lamp
2022-08 → —
|
NGC102 PHL;NGC102 M MA;NGC102 +5 | — | |
| 8158A-12260 note |
Led, Back-up Lamp
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 8158A-12260 note |
Led, Back-up Lamp
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81590A — Lamp Assy, Rear, LH | ||||
| 81590-BZ220 note |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81590-BZ220 |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC102 PHL;NGC102 LHD M +3 | — | |
| 81590-BZ220 note |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81590-BZ230 |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC101,102 H GCC | — | |
| 81590-BZ240 |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC101 L;NGC101 PHL;NGC102 CVT +6 | — | |
| 81590-BZ250 |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 81590-BZ250 note |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC102 5F L | — | |
| 81590-BZ260 |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81590-BZ260 note |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC100 | — | |
| 81590-BZ260 note |
Lamp Assy, Rear, LH
2022-08 → —
|
NGC100 | — | |
| 81590-BZ270 |
Lamp Assy, Rear, LH
2023-03 → —
|
NGC102 M MA | — | |
| 81590-BZ280 |
Lamp Assy, Rear, LH
2023-03 → —
|
NGC102 H MA | — | |
| 81591B — Lens And Body, Rear Lamp, LH | ||||
| 81591-BZ090 |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC102 CVT H GEN;NGC101,NYC100 +2 | — | |
| 81591-BZ090 note |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81591-BZ090 note |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81591-BZ100 note |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81591-BZ100 |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC102 PHL;NGC102 LHD M +3 | — | |
| 81591-BZ100 note |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81591-BZ110 |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC101,102 H GCC | — | |
| 81591-BZ120 |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC101 L;NGC101 PHL;NGC102 CVT +6 | — | |
| 81591-BZ130 |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 81591-BZ130 note |
Lens And Body, Rear Lamp, LH
2022-08 → —
|
NGC102 5F L | — | |
| 81591-BZ150 |
Lens And Body, Rear Lamp, LH
2023-03 → —
|
NGC102 H MA | — | |
| 81591-BZ160 |
Lens And Body, Rear Lamp, LH
2023-03 → —
|
NGC102 M MA | — | |
| 81595 — Socket & Wire, Rear Lamp, LH | ||||
| 81585-BZ050 note |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81585-BZ050 note |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC100 | — | |
| 81585-BZ050 |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC101,102 CVT H (GEN,MA) | — | |
| 81585-BZ060 |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC102 PHL;NGC102 M MA;NGC102 +5 | — | |
| 81585-BZ060 note |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC102,NYC100 RHD CVT (G,H) +1 | — | |
| 81585-BZ060 note |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 81585-BZ070 |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC101 L;NGC101 PHL;NGC102 CVT +6 | — | |
| 81595-BZ020 |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC101,102 H GCC | — | |
| 81595-BZ030 |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC101,102 M GCC | — | |
| 81595-BZ030 note |
Socket & Wire, Rear Lamp, LH
2022-08 → —
|
NGC102 5F L | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
