Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

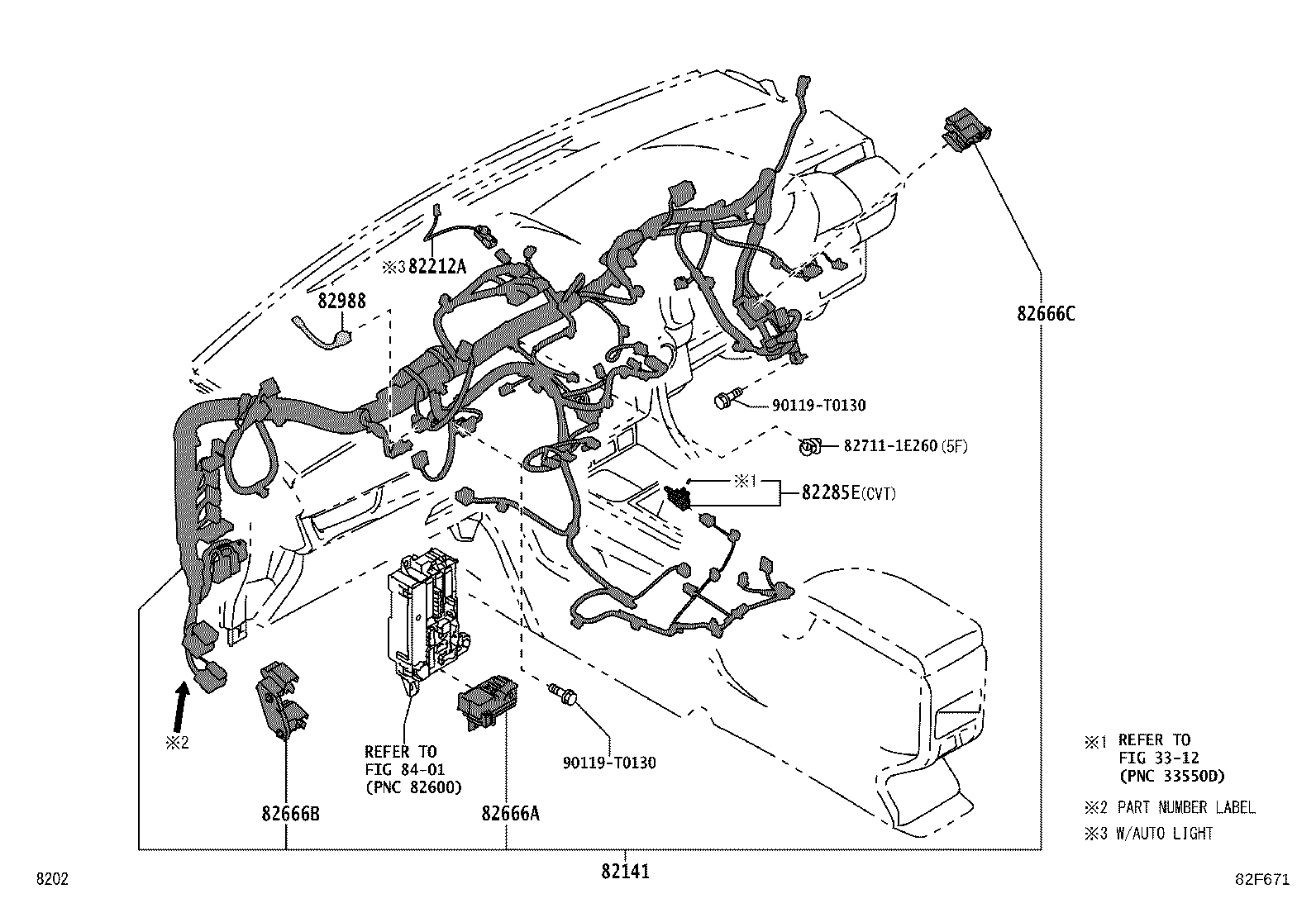

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-BXP10 |
Wire, Instrument Panel
2023-03 → —
|
NGC102 M MA | — | |
| 82141-BXP20 |
Wire, Instrument Panel
2023-03 → —
|
NGC102 H MA | — | |
| 82141-BXU10 |
Wire, Instrument Panel
2022-08 → —
|
NGC102 5F H | — | |
| 82141-BXU20 |
Wire, Instrument Panel
2022-08 → —
|
NGC101 CVT L;NGC102 RHD +2 | — | |
| 82141-BXU30 note |
Wire, Instrument Panel
2022-08 → —
|
NGC100 | — | |
| 82141-BXU40 note |
Wire, Instrument Panel
2022-08 → —
|
NGC101 M GCC | — | |
| 82141-BXU50 |
Wire, Instrument Panel
2022-08 → —
|
NGC101 RHD M | — | |
| 82141-BXU60 |
Wire, Instrument Panel
2022-08 → —
|
NGC102 PHL | — | |
| 82141-BXU70 |
Wire, Instrument Panel
2022-08 → —
|
NGC101,102 RHD CVT H +1 | — | |
| 82141-BXU70 note |
Wire, Instrument Panel
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 82141-BXU80 |
Wire, Instrument Panel
2022-08 → —
|
NGC100 | — | |
| 82141-BXU90 note |
Wire, Instrument Panel
2022-08 → —
|
NGC100 | — | |
| 82141-BXV00 |
Wire, Instrument Panel
2022-08 → —
|
NGC101,102 5F L | — | |
| 82141-BXV10 |
Wire, Instrument Panel
2022-08 → —
|
NGC102 CVT L;NGC101,102 M +1 | — | |
| 82141-BXV20 note |
Wire, Instrument Panel
2022-08 → —
|
NGC102 M GCC | — | |
| 82141-BXV30 |
Wire, Instrument Panel
2022-08 → —
|
NGC101,102 5F M | — | |
| 82141-BXV40 note |
Wire, Instrument Panel
2022-08 → —
|
NGC102 H GCC | — | |
| 82141-BXV50 note |
Wire, Instrument Panel
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 82141-BXV50 note |
Wire, Instrument Panel
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 82141-BXV50 |
Wire, Instrument Panel
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 82141-BXV60 |
Wire, Instrument Panel
2022-08 → —
|
NGC101 LHD H;NGC102 H +5 | — | |
| 82141-BXZ00 note |
Wire, Instrument Panel
2022-08 → —
|
NGC100 | — | |
| 82212A — Harness, Air Conditioner | ||||
| 88605-BZ240 |
Harness, Air Conditioner
2022-08 → —
|
NGC100,101 PHL,TH;NGC101,102 LHD H;NGC101,102 +3 | — | |
| 88605-BZ240 note |
Harness, Air Conditioner
2022-08 → —
|
NGC101 5F M GEN | — | |
| 88605-BZ240 note |
Harness, Air Conditioner
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 88605-BZ240 note |
Harness, Air Conditioner
2022-08 → —
|
NGC102 LHD M GEN | — | |
| 82285E — Wire, Illumination | ||||
| 82285-BZ060 |
Wire, Illumination
2022-08 → —
|
NGC10#,NYC100 THP CVT | — | |
| 82285-BZ110 |
Wire, Illumination
2023-03 → —
|
NGC102 MA | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-B2230 |
Holder, Connector NO.2
2022-08 → —
|
NGC10#;NYC100 LHD | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-BZ040 |
Holder, Connector NO.3
2022-08 → —
|
NGC10# | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-B2250 |
Holder, Connector NO.4
2022-08 → —
|
NGC10# | — | |
| 82988 — Wire, Airbag Repair | ||||
| 89171-BZ040 |
Wire, Airbag Repair
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 89171-BZ050 |
Wire, Airbag Repair
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
