Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

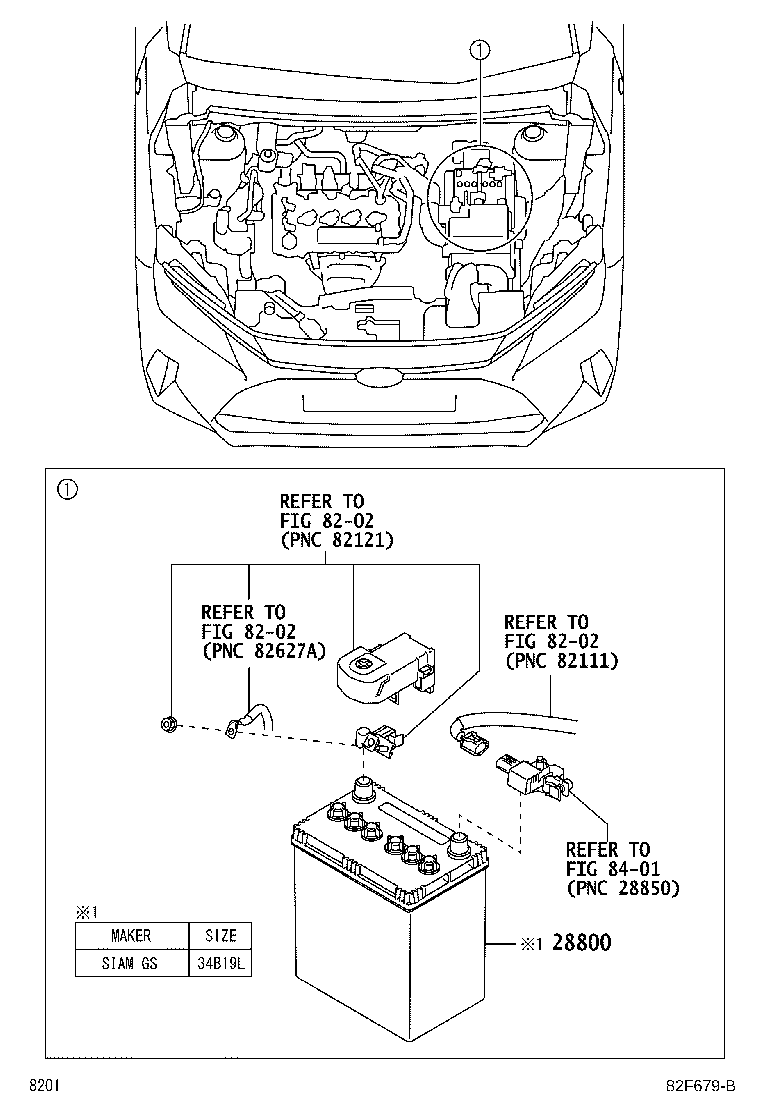

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-BZ390 note |
Battery
2022-08 → —
|
3NRVE NGC100 | — | |
| 28800-BZ400 note |
Battery
2022-08 → —
|
1NRVE,2NRVE NGC101,102 GEN,PHL | — | |
| 28800-BZ410 note |
Battery
2022-08 → —
|
1NRVE,2NRVE NGC101,102 GCC | — | |
| 28800-BZ500 note |
Battery
2022-08 → —
|
3NRVE NGC100 | — | |
| 28800-BZ510 note |
Battery
2022-08 → —
|
1NRVE,2NRVE NGC101,102 GEN,PHL | — | |
| 28800-BZ520 note |
Battery
2022-08 → —
|
1NRVE,2NRVE NGC101,102 GCC | — | |
| 28800-BZ550 note |
Battery
2023-03 → —
|
2NRVE NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
