Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

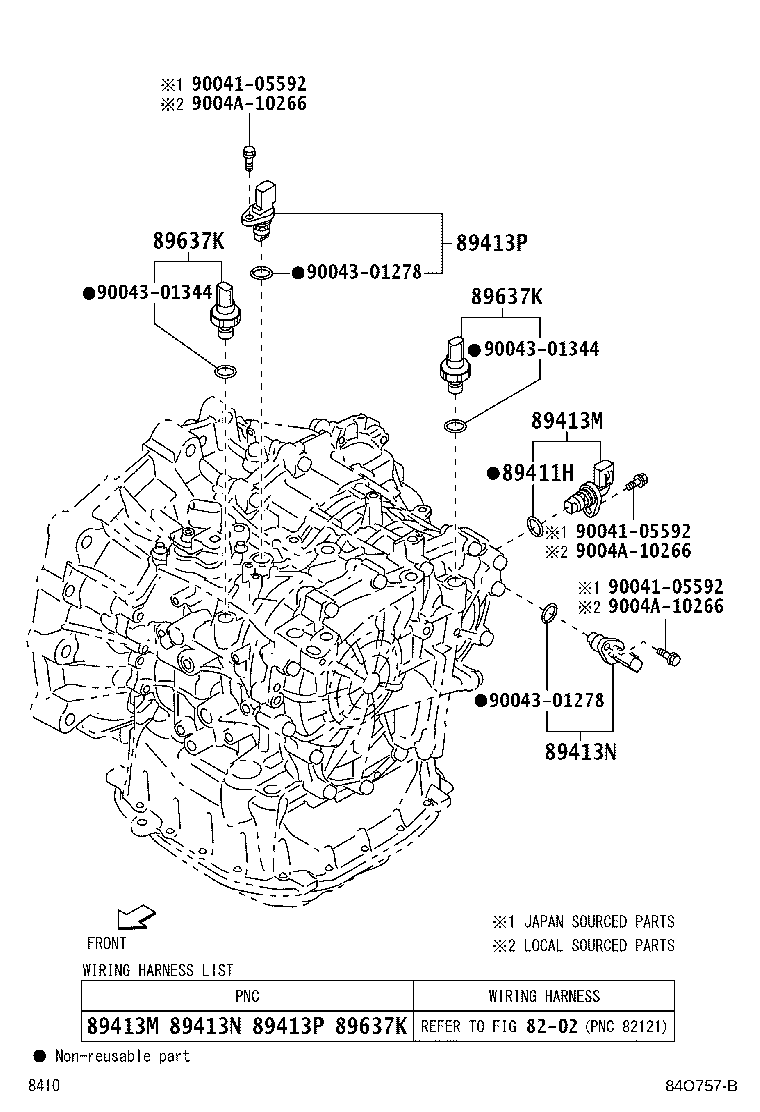

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89411H — Ring, O | ||||
| 90043-01278 |
Ring, O
2022-08 → —
|
NGC10# CVT | — | |
| 89413M — Sensor, Transmission Revolution, (NOUT) | ||||
| 89413-B2030 |
Sensor, Transmission Revolution, (NOUT)
2022-08 → —
|
NGC10# CVT | — | |
| 89413N — Sensor, Transmission Revolution, (NT) | ||||
| 89413-B2020 |
Sensor, Transmission Revolution, (NT)
2022-08 → —
|
NGC10# CVT | — | |
| 89413P — Sensor, Transmission Revolution, (NIN) | ||||
| 89413-B2020 |
Sensor, Transmission Revolution, (NIN)
2022-08 → —
|
NGC10# CVT | — | |
| 89637K — Sensor, Oil Pressure | ||||
| 89637-B2030 |
Sensor, Oil Pressure
2022-08 → —
|
NGC10# CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
