Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

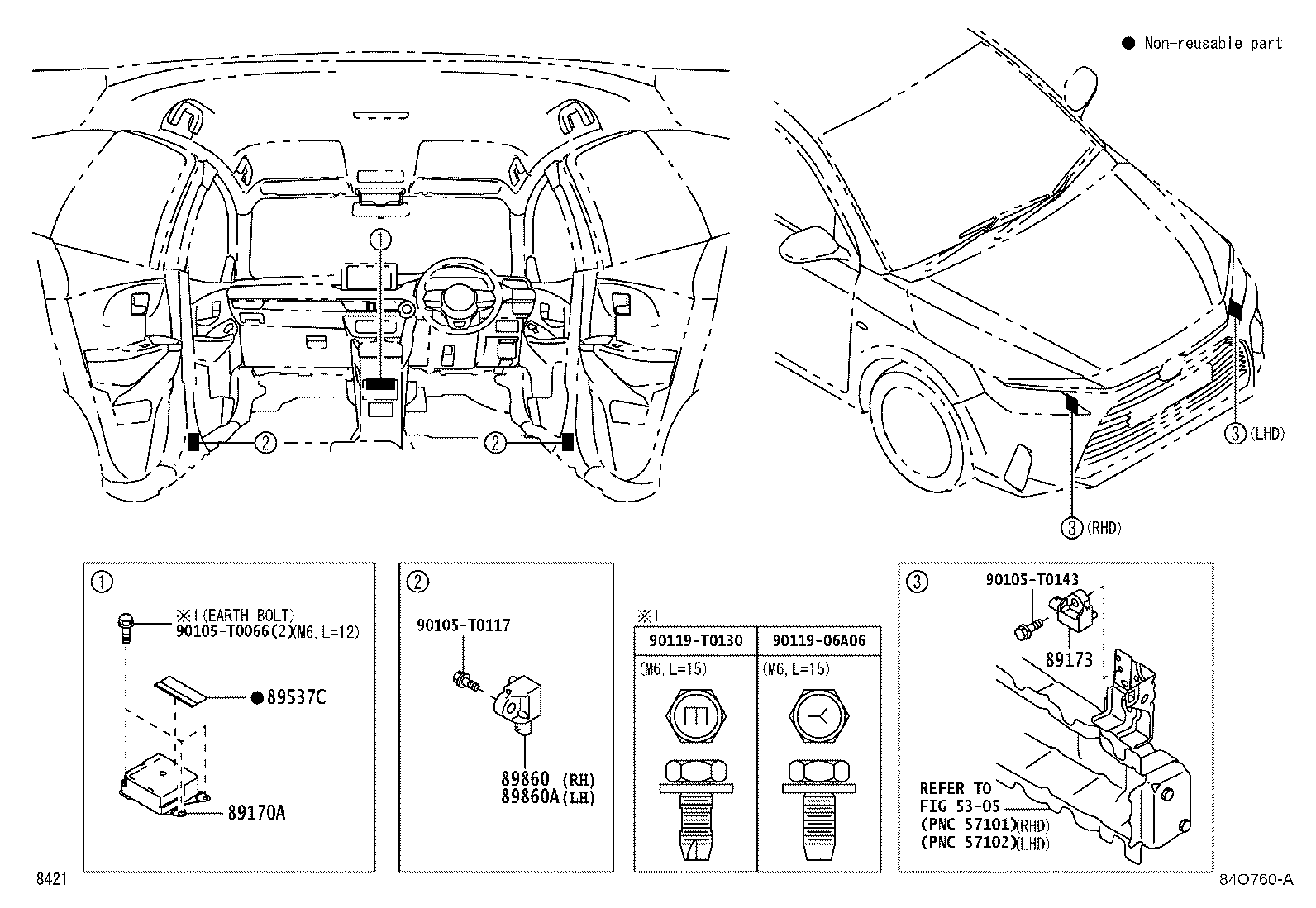

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89170A — Computer Assy, Airbag | ||||
| 89170-BZ830 note |
Computer Assy, Airbag
2022-08 → —
|
NGC101 CVT L | — | |
| 89170-BZ830 note |
Computer Assy, Airbag
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 89170-BZ830 note |
Computer Assy, Airbag
2022-08 → —
|
NGC101 RHD H | — | |
| 89170-BZ830 |
Computer Assy, Airbag
2022-08 → —
|
NGC101 RHD M;NGC102 RHD +3 | — | |
| 89170-BZ840 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 M GCC | — | |
| 89170-BZ850 |
Computer Assy, Airbag
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 89170-BZ850 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 89170-BZ850 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 89170-BZ850 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89170-BZ850 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 89170-BZA60 note |
Computer Assy, Airbag
2022-08 → —
|
NGC102 H GCC | — | |
| 89173 — Sensor, Airbag, Front | ||||
| 89173-B2240 |
Sensor, Airbag, Front
2022-08 → —
|
NGC10#;NYC100 LHD | — | |
| 89537C — Cover, Computer | ||||
| 19114-B2060 |
Cover, Computer
2022-08 → 2023-10
ended
|
NGC10# | — | |
| 19114-BZ040 |
Cover, Computer
2023-10 → —
|
NGC10# | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89860-B1140 |
Sensor Assy, Side Airbag, RH
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, RH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, RH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89860-B1140 |
Sensor Assy, Side Airbag, LH
2022-08 → —
|
NGC101 ,TH H,L;NGC102 H +7 | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, LH
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89860-B1140 note |
Sensor Assy, Side Airbag, LH
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
