Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

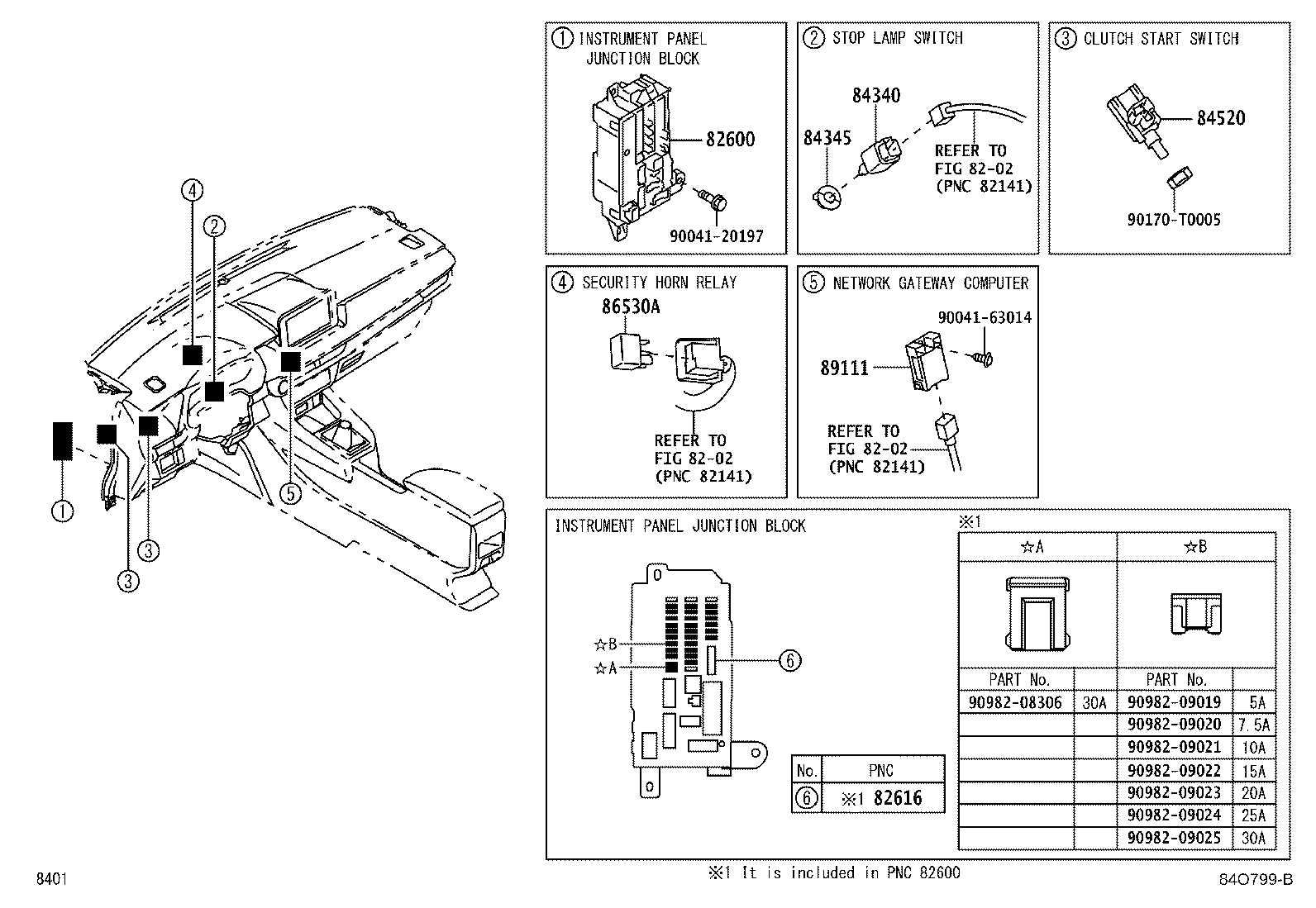

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82600 — Block Assy, Fuse | ||||
| 82600-BZL60 |
Block Assy, Fuse
2022-08 → —
|
NGC101 L;NGC102 5F L | — | |
| 82600-BZL70 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 5F L | — | |
| 82600-BZL80 |
Block Assy, Fuse
2022-08 → —
|
NGC101,102 M GCC | — | |
| 82600-BZL90 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 LHD (H,M) GEN | — | |
| 82600-BZM10 |
Block Assy, Fuse
2022-08 → 2023-12
ended
|
NGC102 RHD CVT H +1 | — | |
| 82600-BZM11 |
Block Assy, Fuse
2024-01 → —
|
NGC102 RHD CVT H +1 | — | |
| 82600-BZM20 |
Block Assy, Fuse
2023-03 → —
|
NGC102 H MA | — | |
| 82600-BZM30 note |
Block Assy, Fuse
2022-08 → —
|
NGC100 | — | |
| 82600-BZM50 note |
Block Assy, Fuse
2022-08 → —
|
NGC100 | — | |
| 82600-BZM50 note |
Block Assy, Fuse
2022-08 → —
|
NGC100 | — | |
| 82600-BZM60 |
Block Assy, Fuse
2022-08 → —
|
NGC100 | — | |
| 82600-BZM70 |
Block Assy, Fuse
2022-08 → —
|
NGC102 CVT L | — | |
| 82600-BZM70 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 5F L | — | |
| 82600-BZM80 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 82600-BZM90 |
Block Assy, Fuse
2022-08 → —
|
NGC101,102 LHD M GEN | — | |
| 82600-BZN00 |
Block Assy, Fuse
2022-08 → —
|
NGC101,102 H GCC | — | |
| 82600-BZN10 |
Block Assy, Fuse
2022-08 → —
|
NGC101 RHD M | — | |
| 82600-BZN10 note |
Block Assy, Fuse
2022-08 → —
|
NGC101 5F M GEN | — | |
| 82600-BZN10 note |
Block Assy, Fuse
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 82600-BZN20 |
Block Assy, Fuse
2022-08 → —
|
NGC101 H GEN;NGC102 LHD +2 | — | |
| 82600-BZN30 |
Block Assy, Fuse
2022-08 → —
|
NGC102 PHL | — | |
| 82600-BZN40 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 82600-BZN50 |
Block Assy, Fuse
2022-08 → 2023-12
ended
|
NGC102 5F H | — | |
| 82600-BZN51 |
Block Assy, Fuse
2024-01 → —
|
NGC102 5F H | — | |
| 82600-BZN60 |
Block Assy, Fuse
2022-08 → —
|
NGC101 PHL | — | |
| 82600-BZT10 note |
Block Assy, Fuse
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 82600-BZT20 note |
Block Assy, Fuse
2022-08 → —
|
NGC101 LHD H GEN | — | |
| 82600-BZT20 note |
Block Assy, Fuse
2022-08 → —
|
NGC101 LHD H GEN | — | |
| 82600-BZU50 |
Block Assy, Fuse
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 82600-BZV40 |
Block Assy, Fuse
2023-03 → —
|
NGC102 M MA | — | |
| 82616 — Puller, Fuse | ||||
| 82616-58010 |
Puller, Fuse
2022-08 → —
|
NGC10# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-B2061 |
Switch Assy, Stop Lamp
2022-08 → —
|
NGC10# | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-BZ040 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → —
|
NGC10# | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-BZ010 |
Switch Assy, Clutch Start
2022-08 → —
|
NGC101,102 5F | — | |
| 86530A — Relay, Horn | ||||
| 90987-T2001 |
Relay, Horn
2022-08 → —
|
NGC10# | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-BZ031 |
Computer, Network Gateway
2022-08 → —
|
NGC10# THP | — | |
| 89111-BZ110 |
Computer, Network Gateway
2023-03 → —
|
NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
