Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

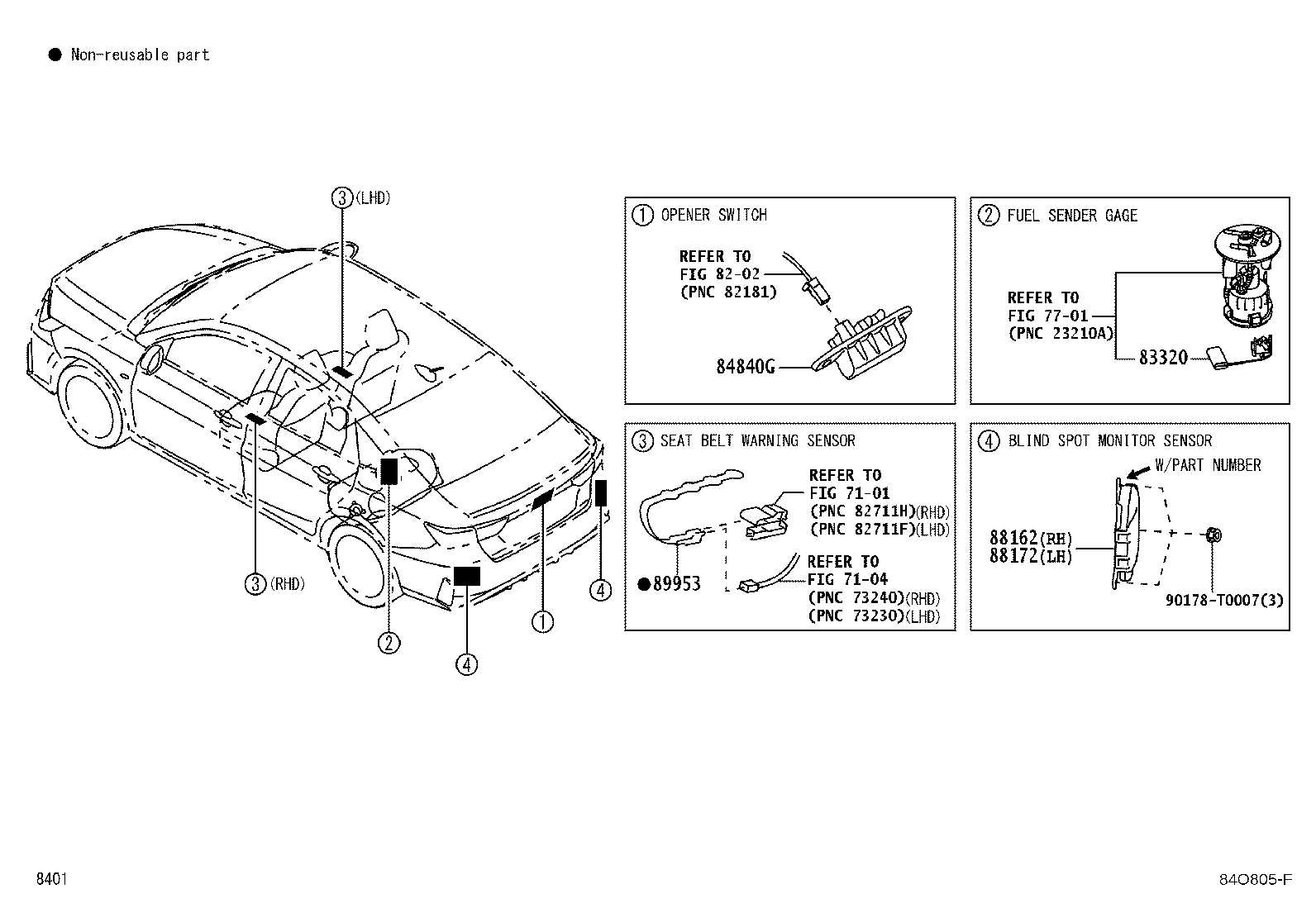

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83301-BZ320 |
Gage Assy, Fuel Sender
2022-08 → —
|
NGC10# | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-0K050 |
Switch Assy, Back Door Opener
2022-08 → —
|
NGC102 ;NGC100,101 MA,PHL;NGC101,102 (H,M) +10 | — | |
| 84840-0K050 note |
Switch Assy, Back Door Opener
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC101 L;NGC101 LHD M +4 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC100 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC100 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC102 RHD CVT | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC102 RHD CVT H | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC102 RHD M | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, RH
2022-08 → 2022-12
ended
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC101 L;NGC101 LHD M +4 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC100 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC100 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC102 RHD CVT GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC102 RHD CVT H +1 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, RH
2022-12 → 2024-05
ended
|
NGC102 RHD M GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC101 L;NGC101 LHD M +4 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC100 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC102 LHD H GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC102 LHD H GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC102 RHD CVT GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC102 RHD CVT H +1 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC102 RHD M GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, RH
2024-06 → —
|
NGC100 | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC100 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC101 L;NGC101 LHD M +4 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC100 | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC102 RHD CVT | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC102 RHD CVT H | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC102 RHD M | — | |
| 88162-B1120 note |
Sensor, Blind Spot Monitor, LH
2022-08 → 2022-12
ended
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC102 RHD CVT H +1 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC101 L;NGC101 LHD M +4 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC100 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC102 LHD H GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC100 | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC102 RHD CVT GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC102 RHD M GEN | — | |
| 88162-B1240 note |
Sensor, Blind Spot Monitor, LH
2022-12 → 2024-05
ended
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC101 H GEN;NGC102 RHD +4 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC102 RHD M GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC102 RHD CVT H +1 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC102 RHD CVT GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC100 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC102 LHD H GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC102 LHD H GEN | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC100 | — | |
| 88162-B1241 note |
Sensor, Blind Spot Monitor, LH
2024-06 → —
|
NGC101 L;NGC101 LHD M +4 | — | |
| 89953 — Sensor, Belt Warning Occupant Detection | ||||
| 89953-BZ010 |
Sensor, Belt Warning Occupant Detection
2022-08 → —
|
NGC10# GEN,MA,PHL,TH | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
