Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

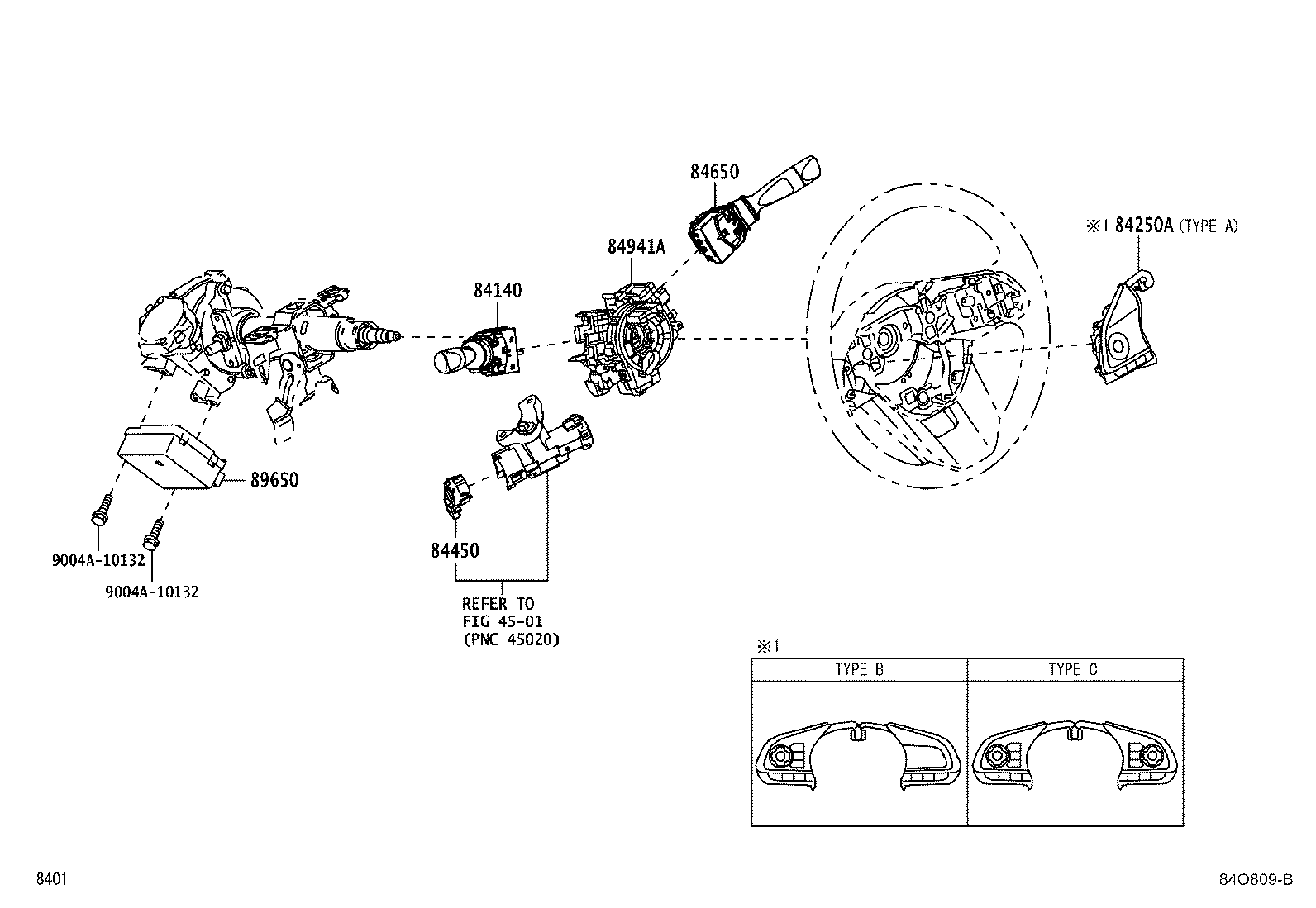

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-BZ460 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC101 5F M GEN | — | |
| 84140-BZ460 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC101,102 LHD H (GEN,PHL) | — | |
| 84140-BZ460 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC102 LHD M GEN | — | |
| 84140-BZ460 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC101 LHD CVT M +1 | — | |
| 84140-BZ461 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC102 LHD M GEN | — | |
| 84140-BZ461 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC101 LHD CVT M +1 | — | |
| 84140-BZ461 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC101 5F M GEN | — | |
| 84140-BZ461 |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC101,102,NYC100 LHD H (GEN,PHL) | — | |
| 84140-BZ470 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC101,102 H GCC;NGC101,102 LHD +1 | — | |
| 84140-BZ471 |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC101,102 H GCC;NGC101,102 LHD +1 | — | |
| 84140-BZ480 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC102 RHD M GEN | — | |
| 84140-BZ481 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC102 RHD M GEN | — | |
| 84140-BZ490 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 84140-BZ490 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC102 RHD M GEN | — | |
| 84140-BZ490 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC102 5F H;NGC101 CVT +1 | — | |
| 84140-BZ491 |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC102 5F H;NGC101 CVT +1 | — | |
| 84140-BZ491 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC102 RHD M GEN | — | |
| 84140-BZ491 note |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC100 | — | |
| 84140-BZ500 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-11
ended
|
NGC10# RHD CVT (H,M) | — | |
| 84140-BZ501 |
Switch Assy, Headlamp Dimmer
2023-12 → —
|
NGC10# RHD CVT (H,M) | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD M GEN;NGC101 +4 | — | |
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101 5F M GEN | — | |
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD M GEN | — | |
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 5F H | — | |
| 84250-BZ270-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD M GEN | — | |
| 84250-BZ280-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101,102 L | — | |
| 84250-BZ340-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101,102 L | — | |
| 84250-BZ340-C1 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 M GCC | — | |
| 84250-BZ370-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC100 | — | |
| 84250-BZ370-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 84250-BZ420-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 84250-BZ420-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 84250-BZ420-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 84250-BZ420-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101 PHL;NGC101 RHD H | — | |
| 84250-BZ490-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD M GEN;NGC101 +4 | — | |
| 84250-BZ490-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101 RHD M;NGC101,102 M +4 | — | |
| 84250-BZ500-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC100 | — | |
| 84250-BZ550-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101 LHD H GEN | — | |
| 84250-BZ550-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 84250-BZ560-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101,102 H GCC | — | |
| 84250-BZ560-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 84250-BZ560-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC101 M GCC | — | |
| 84250-BZ710-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 84250-BZ720-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 PHL | — | |
| 84250-BZ730-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC100 | — | |
| 84250-BZ740-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC100 | — | |
| 84250-BZ750-C0 note |
Switch Assy, Steering Pad
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 84250-BZA70-C0 note |
Switch Assy, Steering Pad
2023-03 → —
|
NGC102 H MA | — | |
| 84250-BZC40-C0 note |
Switch Assy, Steering Pad
2023-03 → —
|
NGC102 M MA | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-B2040 |
Switch Assy, Ignition OR Starter
2022-08 → —
|
NGC101 L;NGC102 CVT L;NGC102 +7 | — | |
| 84450-B2040 note |
Switch Assy, Ignition OR Starter
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-BZ360 |
Switch Assy, Windshield Wiper
2022-08 → 2023-11
ended
|
NGC101,102 H GCC;NGC101,102 LHD +1 | — | |
| 84652-BZ361 |
Switch Assy, Windshield Wiper
2023-12 → —
|
NGC101,102 H GCC;NGC101,102,NYC100 LHD +1 | — | |
| 84652-BZ370 |
Switch Assy, Windshield Wiper
2022-08 → 2023-11
ended
|
NGC102 RHD M;NGC100,101 RHD;NGC102 +3 | — | |
| 84652-BZ371 |
Switch Assy, Windshield Wiper
2023-12 → —
|
NGC102 RHD M;NGC102 RHD +4 | — | |
| 84652-BZ390 |
Switch Assy, Windshield Wiper
2023-03 → 2023-11
ended
|
NGC102 H MA | — | |
| 84652-BZ391 |
Switch Assy, Windshield Wiper
2023-12 → —
|
NGC102 H MA | — | |
| 84652-BZ400 |
Switch Assy, Windshield Wiper
2022-08 → 2023-11
ended
|
NGC101,102 M GCC | — | |
| 84652-BZ401 |
Switch Assy, Windshield Wiper
2023-12 → —
|
NGC101,102 M GCC | — | |
| 84652-BZ410 note |
Switch Assy, Windshield Wiper
2022-08 → 2023-11
ended
|
NGC100 | — | |
| 84652-BZ411 note |
Switch Assy, Windshield Wiper
2023-12 → —
|
NGC100 | — | |
| 84941A — Base, Switch | ||||
| 84941-BZ190 |
Base, Switch
2024-08 → —
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 84941-BZ220 |
Base, Switch
2024-09 → —
|
NGC102 5F H;NGC101 CVT +4 | — | |
| 84941-BZ300 |
Base, Switch
2022-08 → 2022-12
ended
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 84941-BZ301 |
Base, Switch
2023-01 → 2024-07
ended
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 84941-BZ302 |
Base, Switch
2024-08 → 2024-08
ended
|
NGC101,102 M GCC;NGC101,102 LHD +1 | — | |
| 84941-BZ320 |
Base, Switch
2022-08 → 2022-12
ended
|
NGC102 5F H;NGC102 RHD +3 | — | |
| 84941-BZ321 |
Base, Switch
2023-01 → 2024-07
ended
|
NGC102 5F H;NGC101 CVT +4 | — | |
| 84941-BZ322 |
Base, Switch
2024-08 → 2024-09
ended
|
NGC102 5F H;NGC101 CVT +4 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101 CVT L | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101 CVT L | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101 LHD CVT M +1 | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 89650-BZ440 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 N PHL;NGC101 CVT +8 | — | |
| 89650-BZ450 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 89650-BZ450 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101 CVT L;NGC101,102 LHD +3 | — | |
| 89650-BZ450 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101 M GCC | — | |
| 89650-BZ450 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 89650-BZ450 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC102 MA;NGC102 RHD M +4 | — | |
| 89650-BZ460 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC100 | — | |
| 89650-BZ460 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC100 | — | |
| 89650-BZ460 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC100 | — | |
| 89650-BZ470 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC100 | — | |
| 89650-BZ730 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101,102 5F | — | |
| 89650-BZ740 note |
Computer Assy, Power Steering
2022-08 → —
|
NGC101,102 LHD 5F GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
