Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

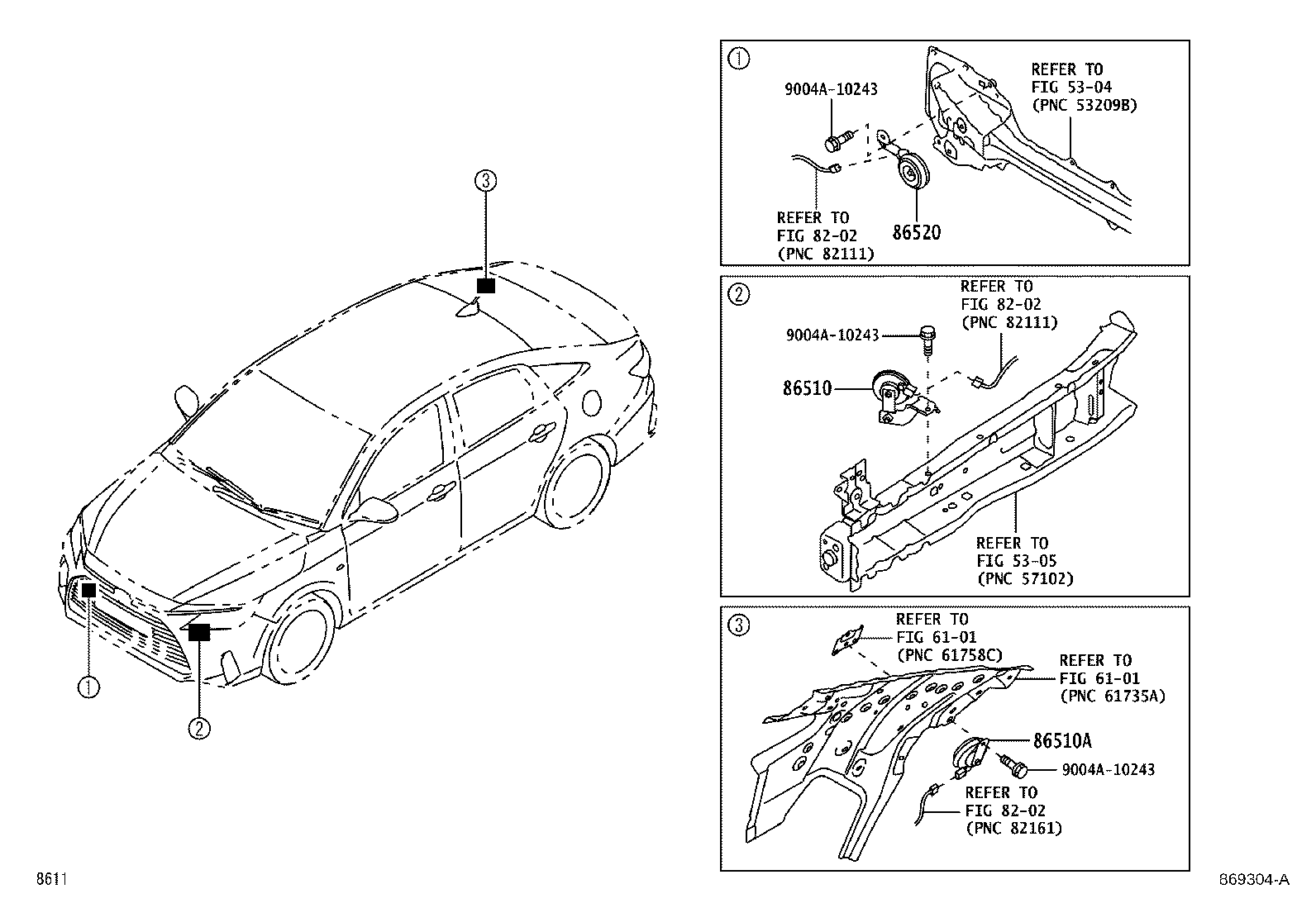

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510 — Horn Assy, High Pitched | ||||
| 86510-BZ300 |
Horn Assy, High Pitched
2022-08 → —
|
NGC102 RHD GEN | — | |
| 86510-BZ300 note |
Horn Assy, High Pitched
2022-08 → —
|
NGC101 CVT L | — | |
| 86510-BZ300 note |
Horn Assy, High Pitched
2022-08 → —
|
NGC101 CVT L | — | |
| 86510-BZ300 note |
Horn Assy, High Pitched
2022-08 → —
|
NGC101 RHD M | — | |
| 86510A — Horn Assy, Security | ||||
| 86520-BZ330 |
Horn Assy, Security
2022-08 → —
|
NGC10# | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-BZ430 |
Horn Assy, Low Pitched
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
