Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

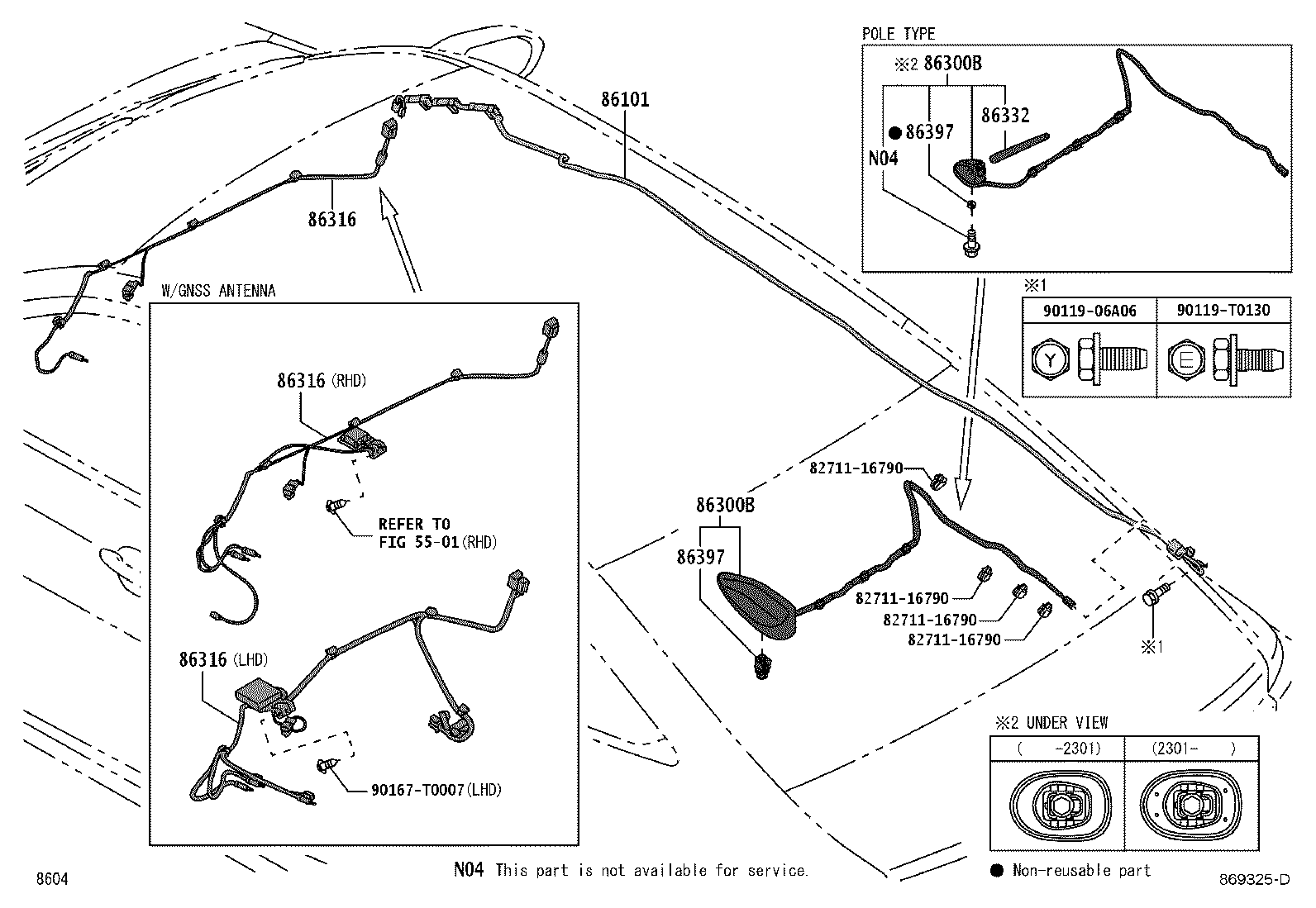

Exploded illustration 869325D 86300B — ANTENNA ASSY, AMPLIFIER, NO.1 (36 parts) 86316 — CABLE, ANTENNA (7 parts) 8271116790 — not listed in this catalogue 86397 — PLATE, ANTENNA EARTH (6 parts) 86101 — CORD SUB-ASSY, ANTENNA (3 parts) 86300B — ANTENNA ASSY, AMPLIFIER, NO.1 (36 parts) 86316 — CABLE, ANTENNA (7 parts) 86316 — CABLE, ANTENNA (7 parts) 86332 — ROD, ANTENNA (2 parts) 86397 — PLATE, ANTENNA EARTH (6 parts) 8271116790 — not listed in this catalogue 8271116790 — not listed in this catalogue 8271116790 — not listed in this catalogue 9011906A06 — not listed in this catalogue 90119T0130 — not listed in this catalogue 90167T0007 — not listed in this catalogue 5501 — not listed in this catalogue
869325D · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
86101 — Cord Sub-assy, Antenna
86316-BZ860 Cord Sub-assy, Antenna
2022-08 → —
NGC10# —
86316-BZ880 note Cord Sub-assy, Antenna
2025-01 → —
NGC102 GCC —
86316-BZD00 note Cord Sub-assy, Antenna
2022-08 → —
NGC101 GCC —
86300B — Antenna Assy, Amplifier, NO.1
86300-BZ360-A0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NYC100 H GEN;NGC101,102 H +3 —
86300-BZ360-A0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-A1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 RHD;NGC100,101 PHL,TH;NGC101,102 H +1 —
86300-BZ360-A1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-B0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 RHD GEN;NGC100,101 PHL,TH;NYC100 +4 —
86300-BZ360-B0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-B1 note Antenna Assy, Amplifier, NO.1
2023-03 → —
NGC102 MA —
86300-BZ360-B2 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 RHD GEN;NGC100,101 PHL,TH;NYC100 +4 —
86300-BZ360-B2 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-B3 note Antenna Assy, Amplifier, NO.1
2023-03 → —
NGC102 MA —
86300-BZ360-C0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 RHD;NGC101,102 H GCC —
86300-BZ360-C0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-C0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC100 —
86300-BZ360-D0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 RHD;NGC100,101 PHL,TH;NGC101,102 H +1 —
86300-BZ360-D0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-D1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NYC100 GEN;NGC100,102 RHD THP;NGC101,102,NYC100 +2 —
86300-BZ360-D1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC102 M GCC —
86300-BZ360-J0 note Antenna Assy, Amplifier, NO.1
2023-03 → —
NGC102 MA —
86300-BZ520-A0 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-A1 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-B0 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-B1 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-C0 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-D0 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ520-D1 note Antenna Assy, Amplifier, NO.1
2025-01 → —
NGC102 GCC —
86300-BZ540 note Antenna Assy, Amplifier, NO.1
2022-08 → 2023-01 ended
NGC100 —
86300-BZ540 Antenna Assy, Amplifier, NO.1
2022-08 → 2023-01 ended
NGC101 H GEN;NGC102 LHD +6 —
86300-BZ541 Antenna Assy, Amplifier, NO.1
2023-01 → —
NGC101 H GEN;NGC102 LHD +6 —
86300-BZ541 note Antenna Assy, Amplifier, NO.1
2023-01 → —
NGC100 —
86300-BZ690-A0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-A1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-B0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-B1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-C0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-D0 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86300-BZ690-D1 note Antenna Assy, Amplifier, NO.1
2022-08 → —
NGC101 GCC —
86316 — Cable, Antenna
86316-BZ890 Cable, Antenna
2022-08 → —
NGC101,102,NYC100 LHD —
86316-BZA00 note Cable, Antenna
2022-08 → —
NGC100 —
86316-BZA00 note Cable, Antenna
2022-08 → —
NGC100 —
86316-BZA00 Cable, Antenna
2022-08 → —
NGC101,102 RHD —
86316-BZA20 note Cable, Antenna
2022-08 → —
NGC100,NYC100 TH —
86316-BZA30 note Cable, Antenna
2025-01 → —
NGC102 GCC —
86316-BZD10 note Cable, Antenna
2022-08 → —
NGC101 GCC —
86332 — Rod, Antenna
86332-BZ100 Rod, Antenna
2022-08 → —
NGC101 H GEN;NGC102 LHD +6 —
86332-BZ100 note Rod, Antenna
2022-08 → —
NGC100 —
86397 — Plate, Antenna Earth
86397-B1020 Plate, Antenna Earth
2022-08 → —
NGC102 RHD;NGC100,101 PHL,TH;NGC101,102 H +1 —
86397-B1020 note Plate, Antenna Earth
2022-08 → —
NGC101 M GCC —
86397-B1020 note Plate, Antenna Earth
2022-08 → —
NGC102 M GCC —
86397-B1020 note Plate, Antenna Earth
2025-01 → —
NGC102 M GCC —
86397-BZ040 Plate, Antenna Earth
2022-08 → —
NGC101 H GEN;NGC102 LHD +6 —
86397-BZ040 note Plate, Antenna Earth
2022-08 → —
NGC100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
