Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

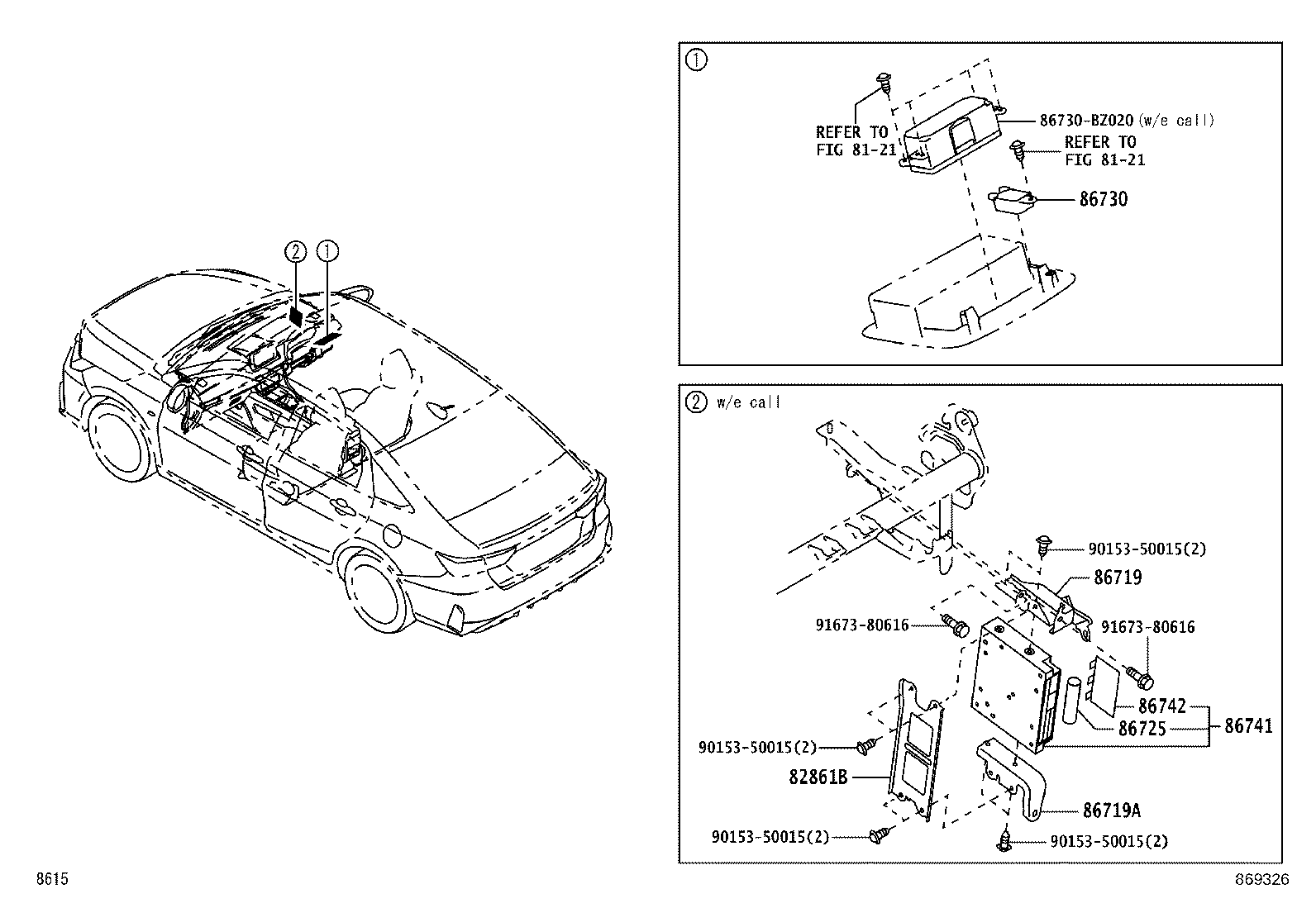

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82861B — Bracket, Computer Integration | ||||
| 89237-BZ130 note |
Bracket, Computer Integration
2022-08 → —
|
NGC102 GCC | — | |
| 86719 — Bracket, Telephone | ||||
| 89237-BZ080 note |
Bracket, Telephone
2022-08 → —
|
NGC102 GCC | — | |
| 86719A — Bracket, Telephone NO.1 | ||||
| 89237-BZ100 note |
Bracket, Telephone NO.1
2022-08 → —
|
NGC102 GCC | — | |
| 86725 — Battery, Mobilephone | ||||
| 86725-BZ010 note |
Battery, Mobilephone
2022-08 → —
|
NGC102 GCC | — | |
| 86730 — Microphone Assy, Telephone | ||||
| 86730-BZ030 |
Microphone Assy, Telephone
2022-08 → —
|
NGC102 L,M) THP (GCC,GEN) +10 | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC101,102 RHD M GEN | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC101 GCC | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC102,NYC100 LHD H GEN | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC100 | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC101,102 CVT L;NGC101,102 LHD +2 | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2022-08 → —
|
NGC102 5F L | — | |
| 86730-BZ030 note |
Microphone Assy, Telephone
2023-04 → —
|
NGC100 | — | |
| 86741 — Transceiver, Telephone | ||||
| 86741-BZ010 note |
Transceiver, Telephone
2022-08 → —
|
NGC102 GCC | — | |
| 86742 — Cover, Transceiver | ||||
| 86742-BZ010 note |
Cover, Transceiver
2022-08 → —
|
NGC102 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
