Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09

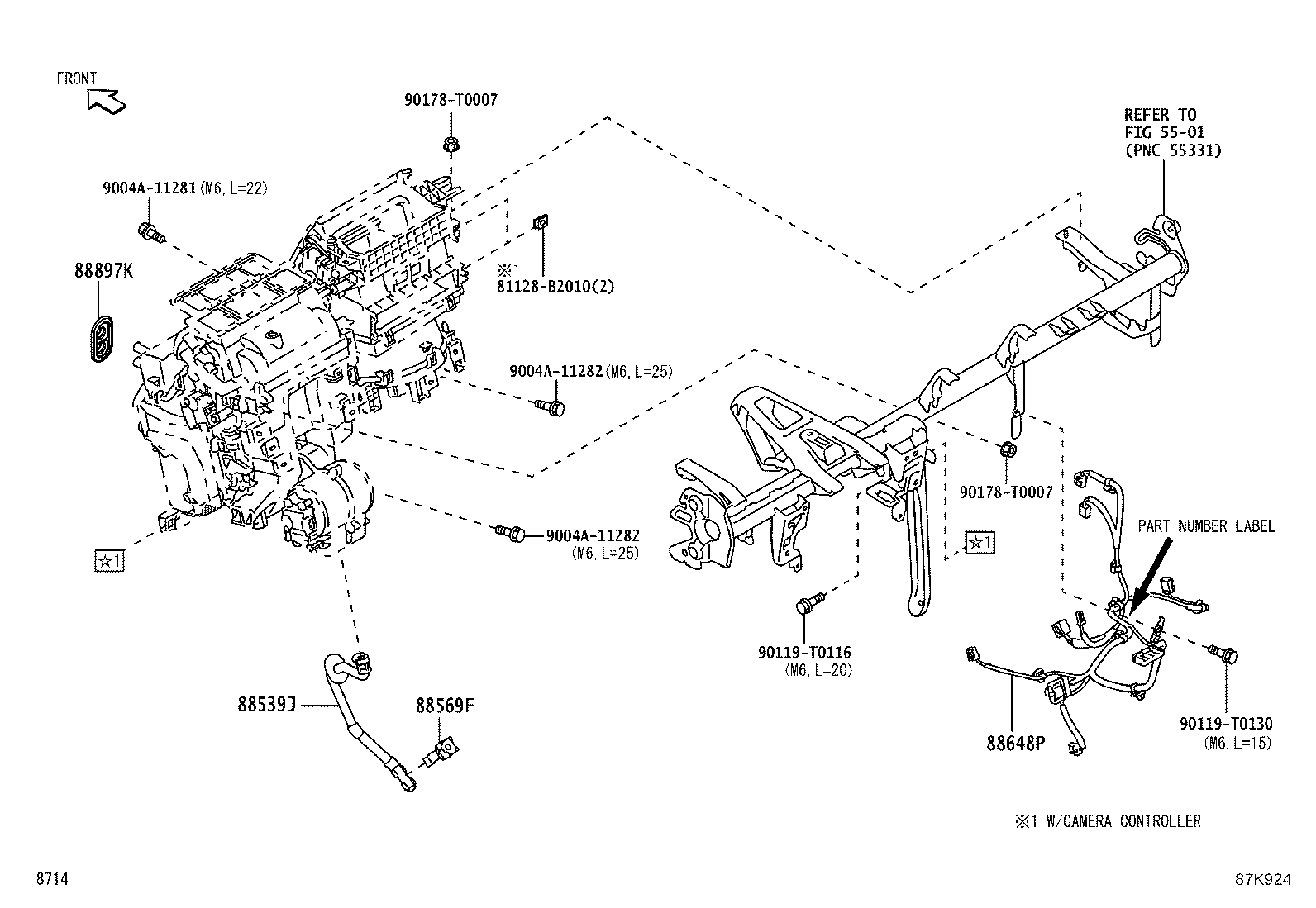

Exploded illustration 87K924 90119T0130 — not listed in this catalogue 88539J — HOSE, DRAIN COOLER (2 parts) 88648P — WIRE,AIR CONDITIONER,NO.1 (25 parts) 88569F — CLAMP (1 parts) 88897K — GROMMET, (FOR COOLER PIPE) (2 parts) 90178T0007 — not listed in this catalogue 90178T0007 — not listed in this catalogue 90119T0116 — not listed in this catalogue 9004A11281 — not listed in this catalogue 9004A11282 — not listed in this catalogue 9004A11282 — not listed in this catalogue 81128B2010 — not listed in this catalogue 5501 — not listed in this catalogue
87K924 · 4 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
88539J — Hose, Drain Cooler
88539-BZ520 Hose, Drain Cooler
2022-08 → —
NGC10# RHD —
88539-BZ530 Hose, Drain Cooler
2022-08 → —
NGC101,102,NYC100 LHD —
88569F — Clamp
C8899-B2010 Clamp
2022-08 → —
NGC10#;NYC100 LHD —
88648P — Wire,Air Conditioner,NO.1
88648-BZ280 Wire,Air Conditioner,NO.1
2022-08 → —
NGC100,102 RHD M —
88648-BZ290 Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 5F H —
88648-BZ290 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 RHD M GEN —
88648-BZ290 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC100 —
88648-BZ300 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC100 —
88648-BZ300 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC100 —
88648-BZ310 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101 CVT L —
88648-BZ310 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 RHD M GEN —
88648-BZ320 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,102 LHD L —
88648-BZ330 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,102 LHD H GEN —
88648-BZ340 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,102 LHD M GEN —
88648-BZ340 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 M GCC —
88648-BZ350 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,102 M GCC —
88648-BZ360 Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 RHD CVT H —
88648-BZ370 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,NYC100 RHD (G,H) GEN —
88648-BZ370 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 RHD CVT H +1 —
88648-BZ370 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 RHD CVT H +1 —
88648-BZ380 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101,102 H GCC —
88648-BZ660 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101 RHD M —
88648-BZ670 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC101 5F M GEN —
88648-BZ670 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC101 LHD CVT M +1 —
88648-BZ670 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 LHD M GEN —
88648-BZ680 Wire,Air Conditioner,NO.1
2022-08 → —
NGC101 PHL —
88648-BZ690 Wire,Air Conditioner,NO.1
2022-08 → —
NGC102,NYC100 PHL —
88648-BZ700 note Wire,Air Conditioner,NO.1
2022-08 → —
NGC102 LHD H GEN —
88897K — Grommet, (FOR COOLER PIPE)
88897-BZ160 Grommet, (FOR COOLER PIPE)
2022-08 → —
NGC101,102,NYC100 PHL —
88897-BZ190 Grommet, (FOR COOLER PIPE)
2022-08 → —
NGC101,102,NYC100 LHD (GCC,GEN) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
