Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

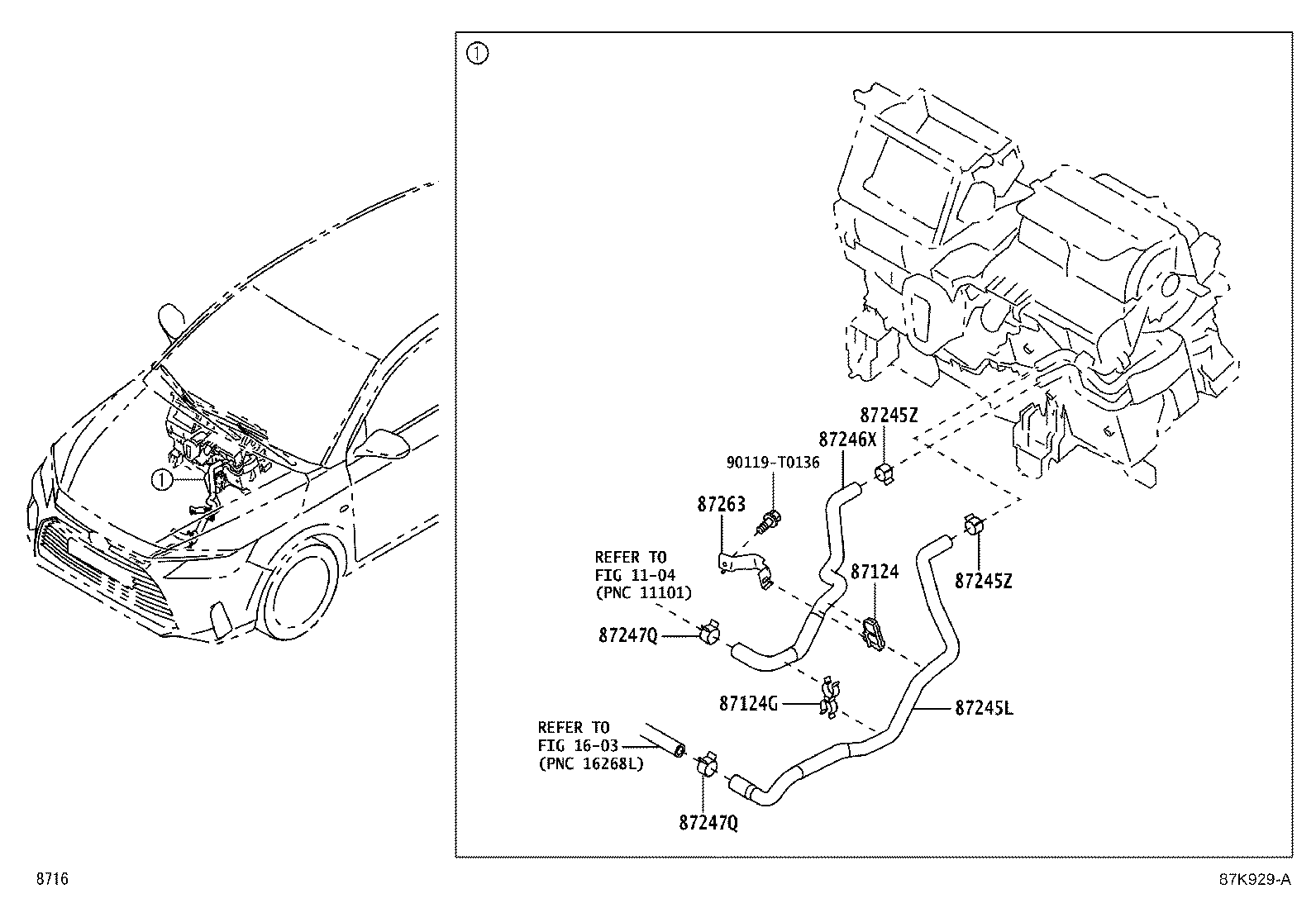

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87124 — Clamp, Heater | ||||
| 87124-B2080 note |
Clamp, Heater
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87124-B2080 note |
Clamp, Heater
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87124-B2080 |
Clamp, Heater
2022-08 → —
|
NGC101 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 87124G — Clamp, Heater Hose, NO.2 | ||||
| 87124-BZ150 |
Clamp, Heater Hose, NO.2
2022-08 → —
|
NGC101 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 87124-BZ150 note |
Clamp, Heater Hose, NO.2
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87124-BZ150 note |
Clamp, Heater Hose, NO.2
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87245L — Hose, Heater Water, L | ||||
| 87245-BZ380 |
Hose, Heater Water, L
2022-08 → —
|
NGC101 RHD | — | |
| 87245-BZ380 note |
Hose, Heater Water, L
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87245-BZ380 note |
Hose, Heater Water, L
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87245-BZ390 |
Hose, Heater Water, L
2022-08 → —
|
NGC101,102 LHD CVT (GCC,GEN) | — | |
| 87245-BZ410 |
Hose, Heater Water, L
2022-08 → —
|
NGC101,102 LHD 5F GEN | — | |
| 87245Z — Clip OR Clamp (FOR HEATER WATER HOSE) | ||||
| 90466-T0017 note |
Clip OR Clamp (FOR HEATER WATER HOSE)
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 90466-T0017 note |
Clip OR Clamp (FOR HEATER WATER HOSE)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90466-T0017 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2022-08 → —
|
NGC101,NYC100 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 87246X — Hose, Heater Water | ||||
| 87246-BZ320 note |
Hose, Heater Water
2022-08 → —
|
NGC101 RHD | — | |
| 87246-BZ320 note |
Hose, Heater Water
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87246-BZ320 note |
Hose, Heater Water
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87246-BZ330 note |
Hose, Heater Water
2022-08 → —
|
NGC101,102 LHD CVT (GCC,GEN) | — | |
| 87246-BZ350 note |
Hose, Heater Water
2022-08 → —
|
NGC101,102 LHD 5F GEN | — | |
| 87247Q — Clip, Hose | ||||
| 90466-T0020 |
Clip, Hose
2022-08 → —
|
NYC100 GEN;NGC101,102 LHD 5F +1 | — | |
| 90466-T0020 |
Clip, Hose
2022-08 → —
|
NGC101 CVT (GCC,GEN);NGC102 LHD +2 | — | |
| 90466-T0020 note |
Clip, Hose
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 90466-T0020 note |
Clip, Hose
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87263 — Bracket, Heater Water Pipe, NO.1 | ||||
| 87263-BZ020 |
Bracket, Heater Water Pipe, NO.1
2022-08 → —
|
NGC101 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 87263-BZ020 note |
Bracket, Heater Water Pipe, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87263-BZ020 note |
Bracket, Heater Water Pipe, NO.1
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
