Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

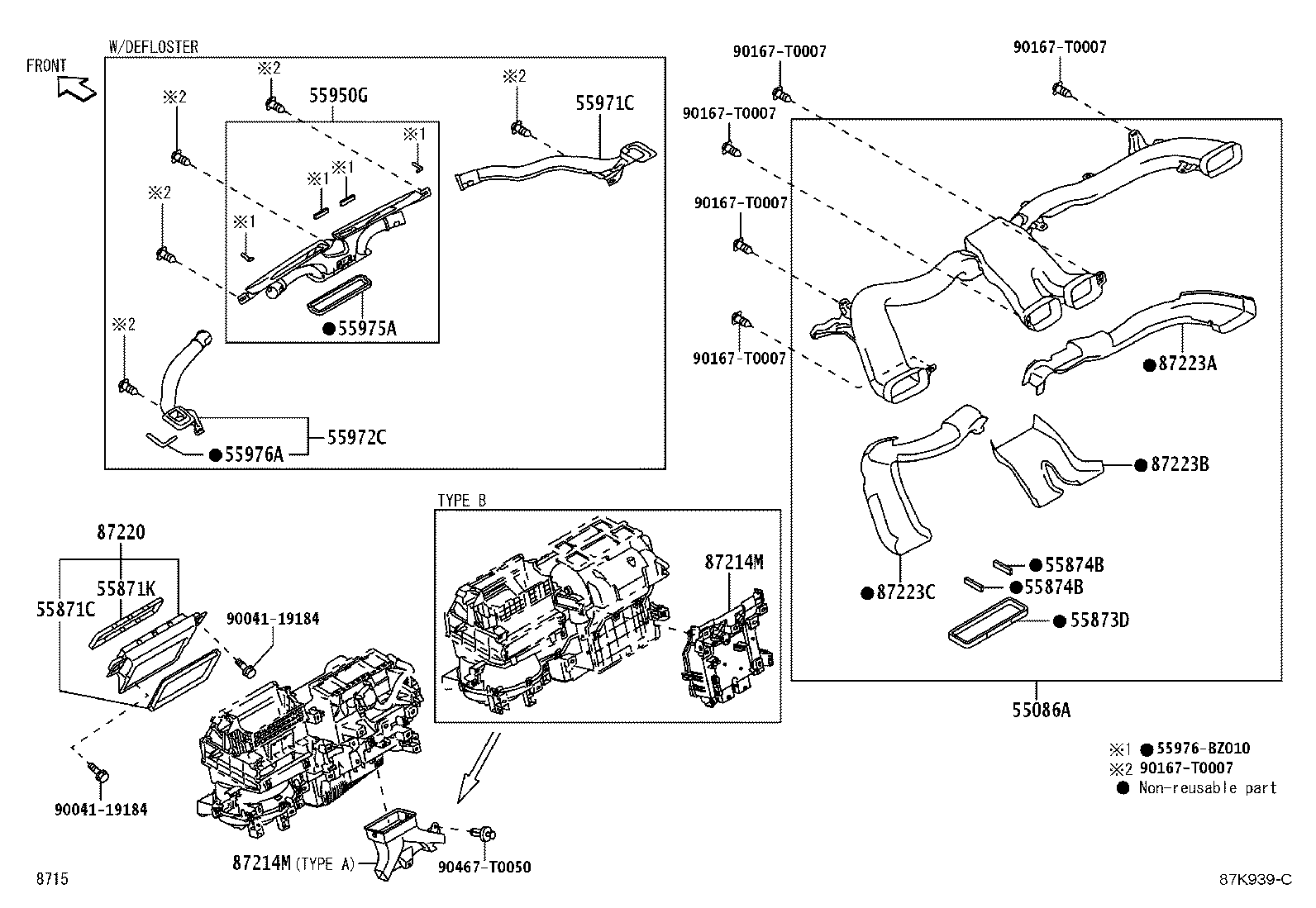

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55086A — Duct Sub-assy, Heater TO Register, Center | ||||
| 55086-BZ380 |
Duct Sub-assy, Heater TO Register, Center
2022-08 → —
|
NGC10# RHD | — | |
| 55086-BZ390 |
Duct Sub-assy, Heater TO Register, Center
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 55871C — Seal, Air Duct | ||||
| 55875-BZ060 |
Seal, Air Duct
2022-08 → —
|
NGC10# | — | |
| 55871K — Seal, Air Duct | ||||
| 55876-BZ020 |
Seal, Air Duct
2022-08 → —
|
NGC10# | — | |
| 55873D — Seal, Air Duct, Center | ||||
| 55873-BZ180 |
Seal, Air Duct, Center
2022-08 → —
|
NGC10# | — | |
| 55874B — Seal, Air Duct, NO.4 | ||||
| 55874-BZ080 |
Seal, Air Duct, NO.4
2022-08 → —
|
NGC10# | — | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-BZ270 |
Nozzle Assy, Defroster
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 55950-BZ270 note |
Nozzle Assy, Defroster
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 55950-BZ270 note |
Nozzle Assy, Defroster
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 55950-BZ280 |
Nozzle Assy, Defroster
2022-08 → —
|
NGC101,102,NYC100 LHD (GCC,GEN) | — | |
| 55971C — Duct, Side Defroster Nozzle, NO.1 | ||||
| 55961-BZ070 |
Duct, Side Defroster Nozzle, NO.1
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 55961-BZ070 note |
Duct, Side Defroster Nozzle, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 55961-BZ070 note |
Duct, Side Defroster Nozzle, NO.1
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 55961-BZ080 |
Duct, Side Defroster Nozzle, NO.1
2022-08 → —
|
NGC101,102,NYC100 LHD (GCC,GEN) | — | |
| 55972C — Duct, Side Defroster Nozzle, NO.2 | ||||
| 55962-BZ070 |
Duct, Side Defroster Nozzle, NO.2
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 55962-BZ070 note |
Duct, Side Defroster Nozzle, NO.2
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 55962-BZ070 note |
Duct, Side Defroster Nozzle, NO.2
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 55962-BZ080 |
Duct, Side Defroster Nozzle, NO.2
2022-08 → —
|
NGC101,102,NYC100 LHD (GCC,GEN) | — | |
| 55975A — Seal, Defroster Nozzle, NO.1 | ||||
| 55975-BZ100 note |
Seal, Defroster Nozzle, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 55975-BZ100 note |
Seal, Defroster Nozzle, NO.1
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 55975-BZ100 |
Seal, Defroster Nozzle, NO.1
2022-08 → —
|
NGC101,NYC100 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 55976A — Seal, Defroster Nozzle, NO.2 | ||||
| 55977-BZ040 |
Seal, Defroster Nozzle, NO.2
2022-08 → —
|
NGC101,NYC100 GCC,GEN;NGC102 LHD (GCC,GEN) | — | |
| 55977-BZ040 note |
Seal, Defroster Nozzle, NO.2
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 55977-BZ040 note |
Seal, Defroster Nozzle, NO.2
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87214M — Duct, Heater TO Foot, NO.3 | ||||
| 87214-BZ030 note |
Duct, Heater TO Foot, NO.3
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87214-BZ030 note |
Duct, Heater TO Foot, NO.3
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87214-BZ030 |
Duct, Heater TO Foot, NO.3
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 87214-BZ040 |
Duct, Heater TO Foot, NO.3
2022-08 → —
|
NGC100,102 RHD | — | |
| 87220 — Duct Assy, Air | ||||
| 87220-BZ490 |
Duct Assy, Air
2022-08 → —
|
NGC10# | — | |
| 87223A — Pad, Air Duct | ||||
| 87223-BZB40 |
Pad, Air Duct
2022-08 → —
|
NGC10# RHD | — | |
| 87223-BZC00 |
Pad, Air Duct
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 87223B — Pad, Air Duct, NO.2 | ||||
| 87223-BZB50 |
Pad, Air Duct, NO.2
2022-08 → —
|
NGC10# RHD | — | |
| 87223-BZB90 |
Pad, Air Duct, NO.2
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 87223C — Pad, Air Duct, NO.3 | ||||
| 87223-BZB30 |
Pad, Air Duct, NO.3
2022-08 → —
|
NGC10# RHD | — | |
| 87223-BZB80 |
Pad, Air Duct, NO.3
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
