Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

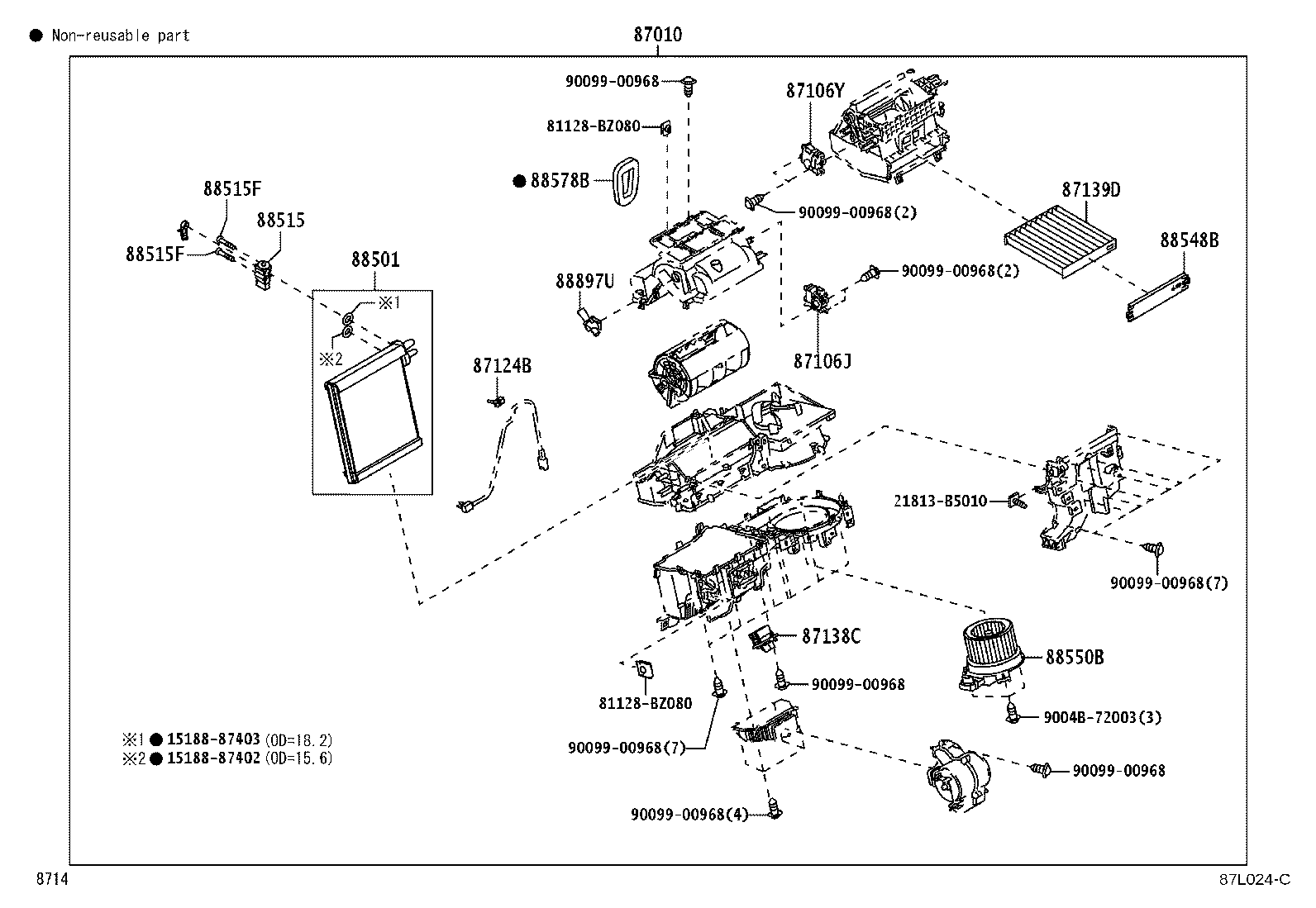

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87010 — Unit Assy, Air Conditioner | ||||
| 87010-BZA60 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC101 RHD | — | |
| 87010-BZA60 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87010-BZA60 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87010-BZA70 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 5F H;NGC100,102 RHD +2 | — | |
| 87010-BZA80 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC100 | — | |
| 87010-BZA80 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC100 | — | |
| 87010-BZA90 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87010-BZB00 |
Unit Assy, Air Conditioner
2023-03 → —
|
NGC102 H MA | — | |
| 87010-BZB20 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC101,102 LHD L | — | |
| 87010-BZB30 note |
Unit Assy, Air Conditioner
2022-08 → 2024-01
ended
|
NGC102 M GCC | — | |
| 87010-BZB30 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC101,102 LHD (H,M) GEN | — | |
| 87010-BZB40 |
Unit Assy, Air Conditioner
2022-08 → 2024-01
ended
|
NGC101,102 GCC | — | |
| 87010-BZB40 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 87010-BZB50 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC101 5F PHL | — | |
| 87010-BZB60 |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC101,102 CVT PHL | — | |
| 87010-BZB80 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87010-BZB80 note |
Unit Assy, Air Conditioner
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87010-BZD70 |
Unit Assy, Air Conditioner
2023-03 → —
|
NGC102 M MA | — | |
| 87010-BZF20 |
Unit Assy, Air Conditioner
2024-01 → —
|
NGC101,102 GCC | — | |
| 87010-BZF30 note |
Unit Assy, Air Conditioner
2024-01 → —
|
NGC102 M GCC | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-BZ060 |
Servo Sub-assy, Damper(FOR MODE)
2022-08 → —
|
NGC101,102,NYC100 LHD (H,M) | — | |
| 87106-BZ080 |
Servo Sub-assy, Damper(FOR MODE)
2023-03 → —
|
NGC102 MA | — | |
| 88660-B2030 |
Servo Sub-assy, Damper(FOR MODE)
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 88660-B2030 note |
Servo Sub-assy, Damper(FOR MODE)
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 88660-B2030 note |
Servo Sub-assy, Damper(FOR MODE)
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87106Y — Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) | ||||
| 87106-BZ050 |
Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
2022-08 → —
|
NGC101,102,NYC100 LHD (H,M) | — | |
| 88660-B2050 |
Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
2022-08 → —
|
NGC10# RHD | — | |
| 87124B — Clamp, Heater | ||||
| 87126-B1010 |
Clamp, Heater
2022-08 → —
|
NGC102 LHD;NGC101,NYC100 GCC,GEN,PHL | — | |
| 87126-B1010 note |
Clamp, Heater
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87126-B1010 note |
Clamp, Heater
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87138C — Resistor, Blower | ||||
| 87138-B2060 |
Resistor, Blower
2023-03 → —
|
NGC102 MA | — | |
| 87138-BZ150 note |
Resistor, Blower
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 87138-BZ150 |
Resistor, Blower
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 87138-BZ150 note |
Resistor, Blower
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 87138-BZ190 |
Resistor, Blower
2022-08 → —
|
NYC100 PHL,TH;NYC100 LHD GEN;NGC101 +4 | — | |
| 87138-BZ200 |
Resistor, Blower
2022-08 → —
|
NGC101,102 LHD L | — | |
| 87139D — Element, Air Refiner | ||||
| 87139-BZ030 |
Element, Air Refiner
2023-03 → —
|
NGC102 MA | — | |
| 87139-BZ040 |
Element, Air Refiner
2022-08 → —
|
NGC10# THP;NYC100 GEN,PHL | — | |
| 87139-BZ050 note |
Element, Air Refiner
2022-08 → —
|
NGC100 | — | |
| 87139-BZ050 note |
Element, Air Refiner
2022-08 → —
|
NGC100 | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-BZ390 |
Evaporator Sub-assy, Cooler, NO.1
2023-03 → —
|
NGC102 MA | — | |
| 88501-BZ400 |
Evaporator Sub-assy, Cooler, NO.1
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 88501-BZ400 note |
Evaporator Sub-assy, Cooler, NO.1
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 88501-BZ400 note |
Evaporator Sub-assy, Cooler, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 88501-BZ460 |
Evaporator Sub-assy, Cooler, NO.1
2022-08 → —
|
NGC102 RHD GEN;NGC100,NYC100 TH | — | |
| 88501-BZ470 |
Evaporator Sub-assy, Cooler, NO.1
2022-08 → —
|
NGC101,102,NYC100 LHD | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-BZ200 |
Valve, Cooler Expansion
2022-08 → —
|
NGC101 RHD | — | |
| 88515-BZ200 note |
Valve, Cooler Expansion
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 88515-BZ200 note |
Valve, Cooler Expansion
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 88515-BZ220 |
Valve, Cooler Expansion
2023-03 → —
|
NGC102 MA | — | |
| 88515-BZ240 |
Valve, Cooler Expansion
2022-08 → 2024-01
ended
|
NGC101,102 GCC | — | |
| 88515-BZ240 |
Valve, Cooler Expansion
2022-08 → —
|
NGC100,102 GEN,PHL,TH;NGC101 LHD (GEN,PHL) | — | |
| 88515-BZ310 |
Valve, Cooler Expansion
2024-01 → —
|
NGC101,102 GCC | — | |
| 88515F — Bolt(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
Bolt(FOR COOLER EXPANSION VALVE)
2022-08 → —
|
NGC10# | — | |
| 88548B — Case, Air Filter | ||||
| 88548-BZ050 |
Case, Air Filter
2023-03 → —
|
NGC102 MA | — | |
| 88548-BZ060 |
Case, Air Filter
2022-08 → —
|
NGC10#,NYC100 THP | — | |
| 88550B — Motor Assy, Blower | ||||
| 88550-BZ140 |
Motor Assy, Blower
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 88550-BZ140 note |
Motor Assy, Blower
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 88550-BZ140 note |
Motor Assy, Blower
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 88550-BZ170 |
Motor Assy, Blower
2023-03 → —
|
NGC102 MA | — | |
| 88550-BZ190 |
Motor Assy, Blower
2022-08 → —
|
NGC102 RHD GEN;NGC100,NYC100 TH | — | |
| 88550-BZ200 |
Motor Assy, Blower
2022-08 → —
|
NGC101,102,NYC100 PHL | — | |
| 88550-BZ220 |
Motor Assy, Blower
2022-08 → —
|
NGC101,102,NYC100 LHD (GCC,GEN) | — | |
| 88578B — Packing, Cooling Unit, NO.1 | ||||
| 88578-BZE20 |
Packing, Cooling Unit, NO.1
2023-03 → —
|
NGC102 MA | — | |
| 88578-BZE30 |
Packing, Cooling Unit, NO.1
2022-08 → —
|
NGC101,NYC100 RHD GEN | — | |
| 88578-BZE30 note |
Packing, Cooling Unit, NO.1
2022-08 → —
|
NGC102 RHD CVT H +1 | — | |
| 88578-BZE30 note |
Packing, Cooling Unit, NO.1
2022-08 → —
|
NGC102 RHD CVT GEN | — | |
| 88578-BZG10 |
Packing, Cooling Unit, NO.1
2022-08 → —
|
NGC101 LHD;NYC100 PHL,TH;NGC100,102 THP;NYC100 +2 | — | |
| 88897U — Pipe, Aspirator | ||||
| 88897-BZ300 |
Pipe, Aspirator
2022-08 → —
|
NGC101 ,GEN,PHL) 5F M;NGC102 +8 | — | |
| 88897-BZ300 note |
Pipe, Aspirator
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 88897-BZ330 |
Pipe, Aspirator
2023-03 → —
|
NGC102 H MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
