Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

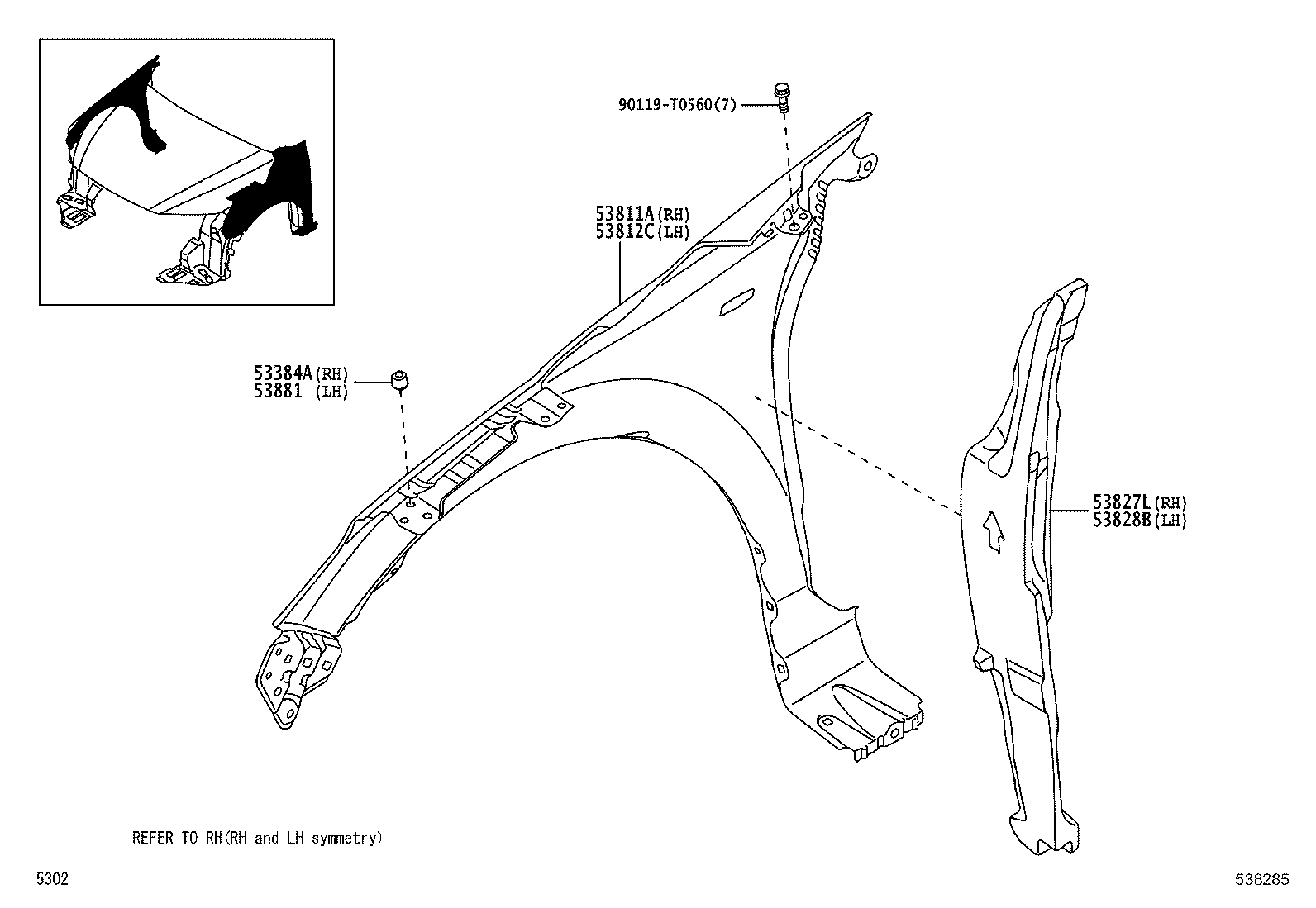

Hood & Front Fender
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53326A | Clip, Hood Moulding |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53384A | Bumper, Fender TO Hood |
| 53811A | Panel, Front Fender, RH |
| 53812C | Panel, Front Fender, LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875J | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53876A | Liner, Front Fender, LH |
| 53876C | Grommet, Screw |
| 53879R | Retainer, Front Fender Liner |
| 53879U | Retainer, Front Fender Liner |
| 53881 | Bumper, Fender TO Hood |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
